FU311 Head-end processor
RF output (F type): 16/32 channels of multiplexing, scrambling and modualtion.. Tuner input: DVB-C (J.83 A/C)/J.83B/ DVB-T/DVB-T2/ISDB-T switchable. RF output (F type): 8/16 channels of multiplexing and modulation.
Key Specifications
- HEVC/H.265 MPEG-4 AVC/H.264
- FEC/ Convolution Rate 1/2, 2/3, 3/4, 5/6, 7/8
- 4*1080P-60/59.94 4*1080P-60,4*1080P-59.94
- 4*1080I-50 4*1080P-50,4*1080P-25
- 4*1080I-60/59.94 4*1080P-60,4*1080P-30
- 4*720P-60/59.94 4*720P-60,4*720P-59.94
- 4*2160P_25/30/29.97 2*2160P_25/30/29.97
- Standard DVB-S
Overview

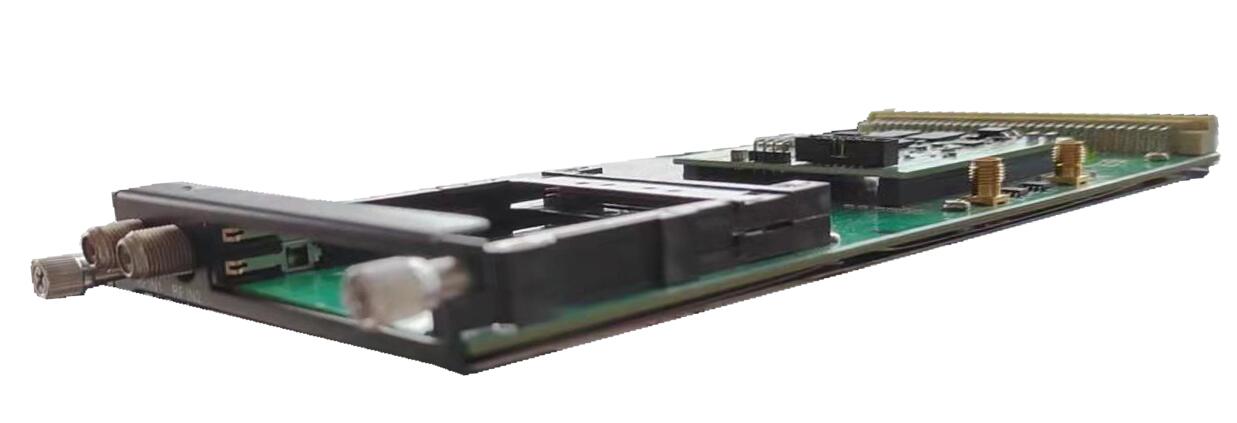

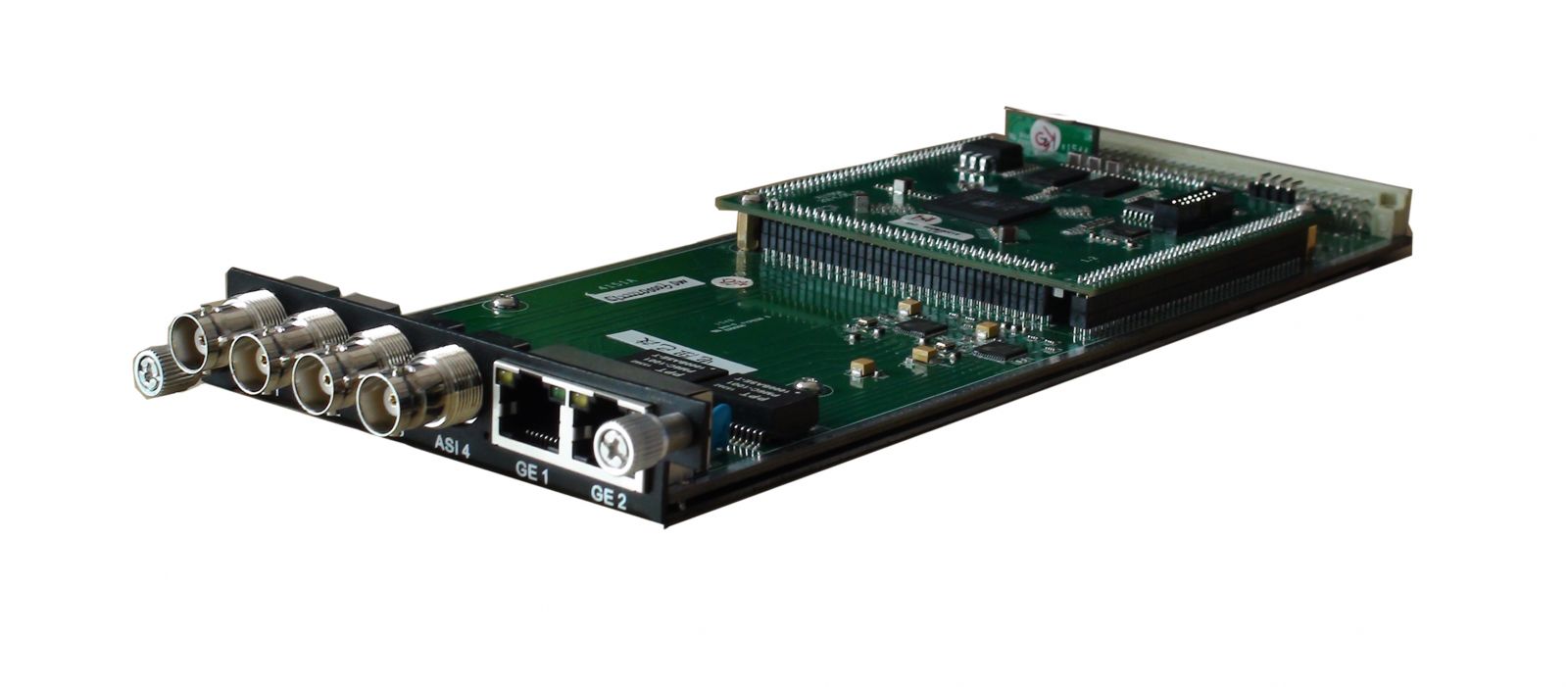

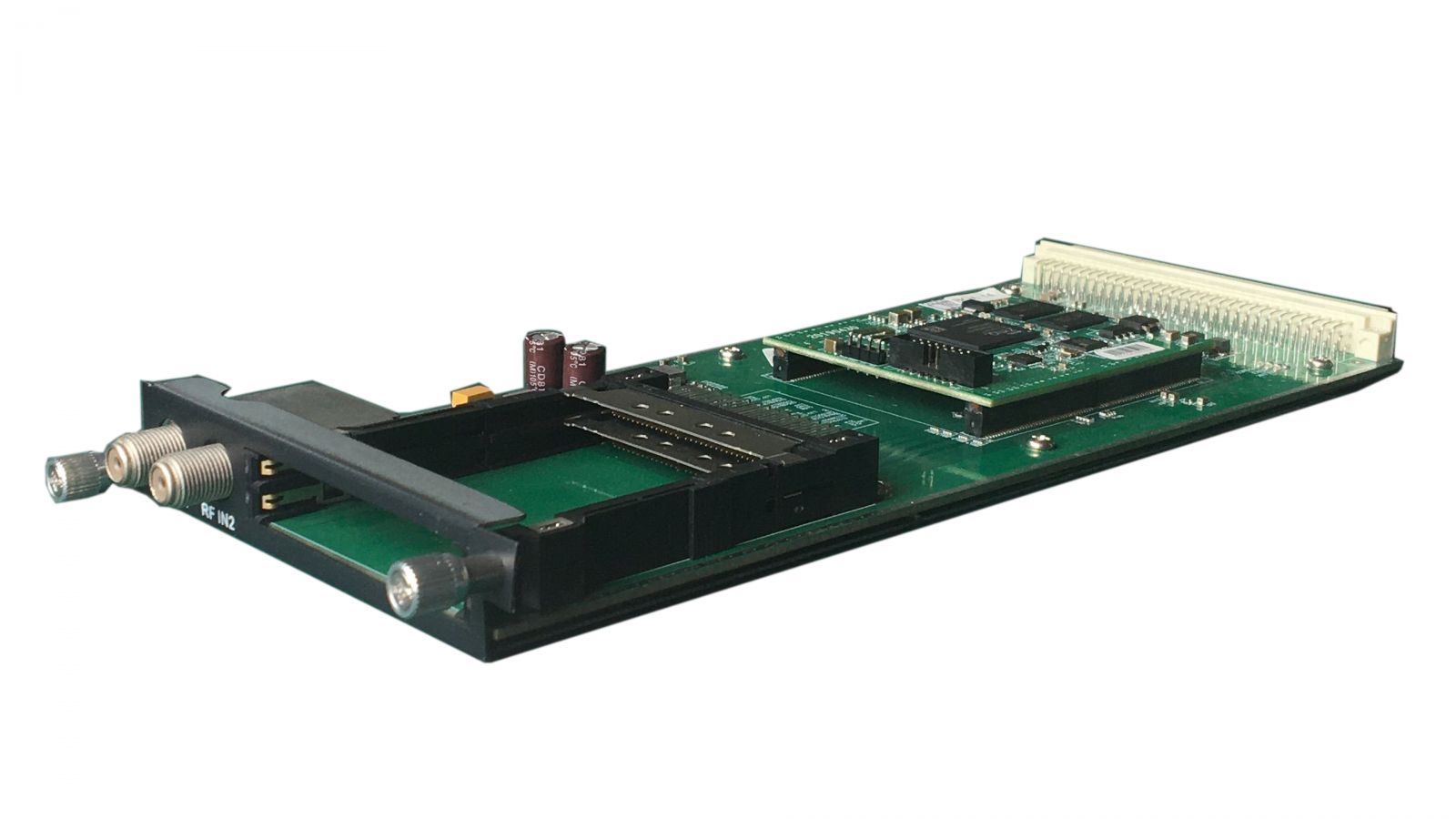

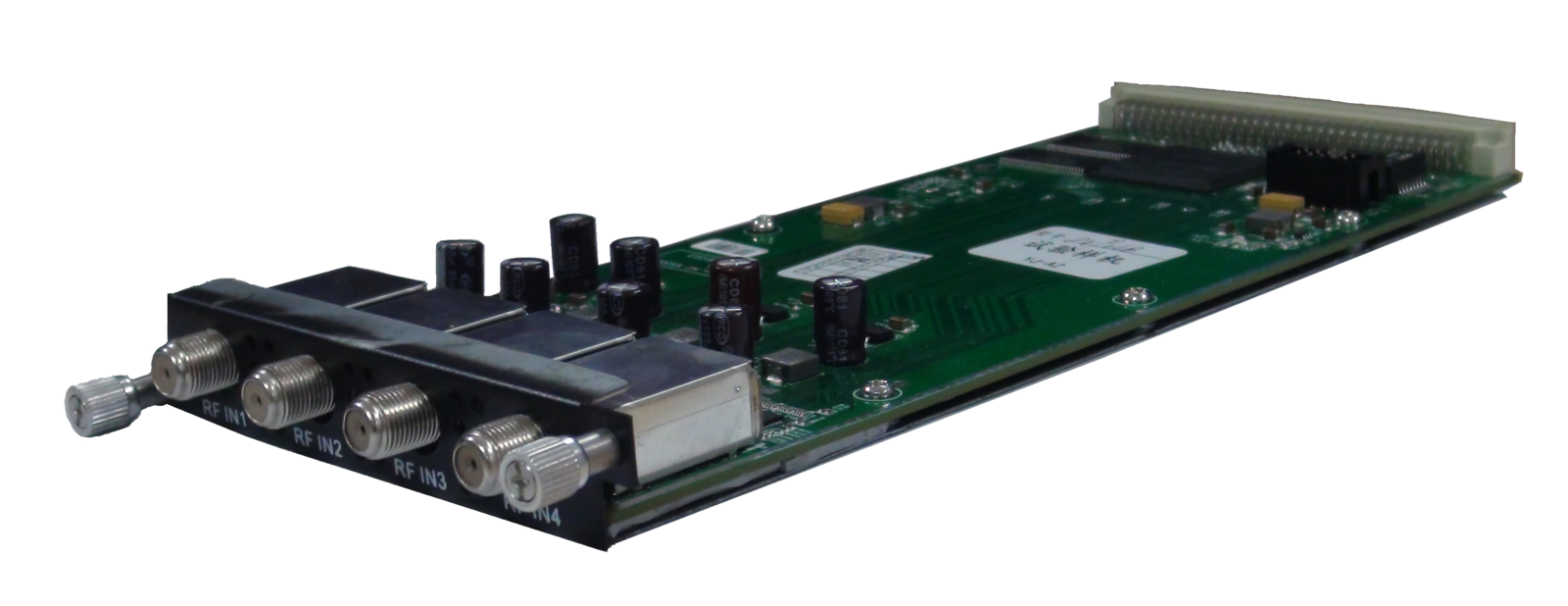

FU311 DTV head-end processor is the newest generation of professional head-end processing equipment. This 1-U case comes with 3 independent module slots, and it can be combined with different modules as your head-end system according to your operation requirements. Each module can be configured individually based on the applications including encoding, decoding, trans-coding, multiplexing, descrambling and modulating processing. FU311 head-end processor brings a whole new level of intelligence and high performance to the network at a cost effective price. Carrier 1~24 out thru RF1, 25~48 thru RF2, each RF supports 384M bandwidth Key Features: Modularized plug-in design, 1U chassis and 3 slots; Support flexible combination of any different type of modules; Maximum 800M data processing; Support 1 GE bi-direction (Data port), RJ45 interface; Support Web management, Update via web Specifications: Video format: HEVC/H.265 & MPEG 4 AVC/H.264; Video format: HEVC/H.265 & MPEG 4 AVC/H.264; Video/Audio Out: 4 HDMI output with 1 channel stereo audio embedded in each port; Video Format: MPEG-2, MPEG-4 AVC/H.264, HEVC/H.265, AVS, AVS+
Technical Specifications
RF Modulation
Modulation Parameters
| Outer coding | RS Coding |
| Inner coding | Convolution |
| Constellation | QPSK |
| FEC/ Convolution Rate | 1/2, 2/3, 3/4, 5/6, 7/8 |
DVB-S / S2 / S2X
| Standard | DVB-S |
Encoding & Decoding
Video
| 4*1080I-50 | 4*1080P-50,4*1080P-25 |
| 4*1080I-50 | 4*1080P-50,4*1080P-25 |
| 4*1080I-50 | 4*1080P-50 |
Codec Settings
| HEVC/H.265 | MPEG-4 AVC/H.264 |
| 4*1080P-60/59.94 | 4*1080P-60,4*1080P-59.94 |
| 4*1080I-60/59.94 | 4*1080P-60,4*1080P-30 |
| 4*720P-60/59.94 | 4*720P-60,4*720P-59.94 |
| HEVC/H.265 | MPEG-4 AVC/H.264 |
| 4*1080P-60/59.94 | 4*1080P-60,4*1080P-59.94 |
| 4*1080I-60/59.94 | 4*1080P-60,4*1080P-30 |
| 4*720P-60/59.94 | 4*720P-60,4*720P-59.94 |
| HEVC/H.265 | MPEG-4 AVC/H.264 |
| 4*1080I-60/59.94 | 4*1080P-60/59.94 |
| HEVC/H.265 | MPEG-4 AVC/H.264 |
| 4*2160P_25/30/29.97 | 2*2160P_25/30/29.97 |
