FU311A 10G IP QAM Modulator

Overview

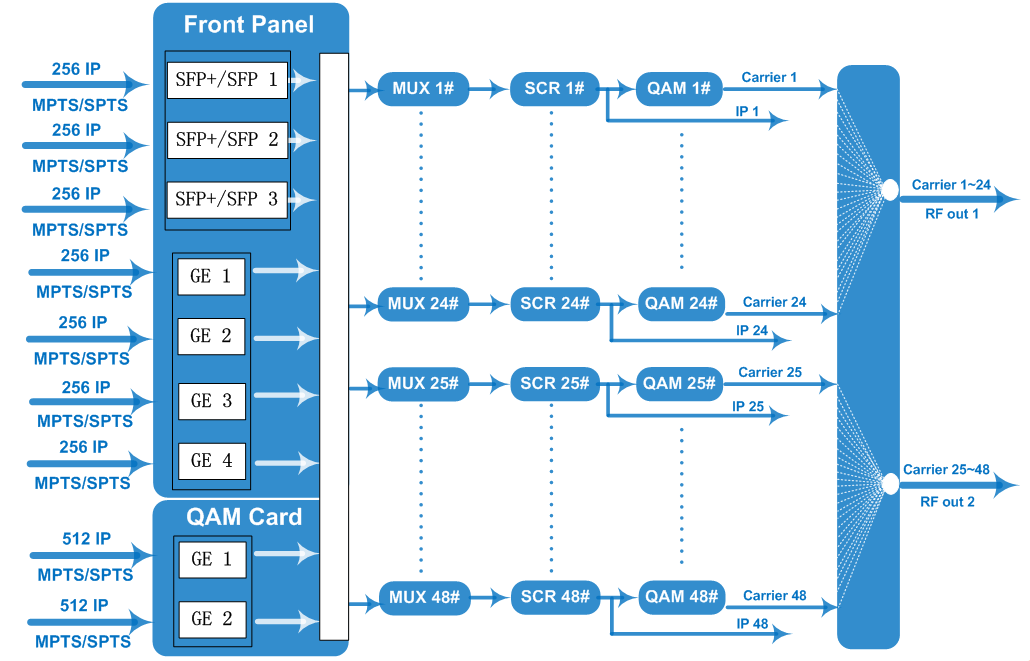

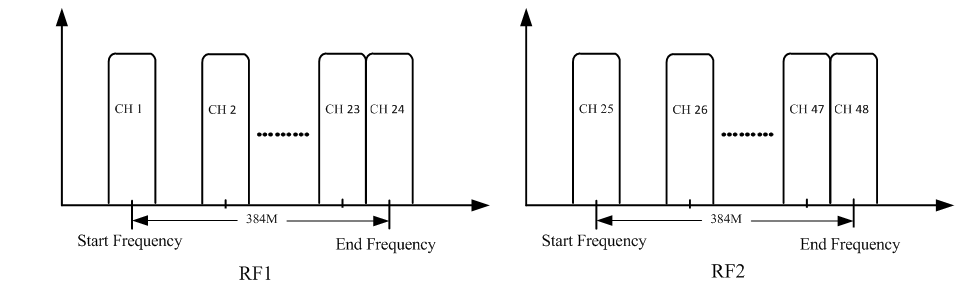

FU311A 10G IP QAM processor is an all-in-one device developed by FMUSER. It integrates multiplex, scrambler and modulator in one body with 48 (or 96) DVB-C QAM channels output through 2 (or 4) RF ports. With 10G switch built in, it can process both 10G optical signal and normal gigabit electronic signal to work as traditional QAM modulator. The device is equipped with 1 (or 2) 48ch QAM card and characterized with dual RF output ports on each card to broaden the bandwidth for QAM carriers. Its high density helps operators to save cost to the most extent. Key Features: Support 3 SFP+ (10G)/SFP(1G) ports and 4 GE ports for input & output from front panel; High density, modularized plug-in design, 1U chassis with two 48-channel QAM cards, each; card has 2 GE for input & output; Support multiplexer and scrambler with 6 CAS Simul-cryption;  48/96 non-adjacent QAM carrier outputs (48 channels out per card);  Supports accurate PCR adjusting/CA filtering, PID remapping and PSI/SI editing;  Web-based Network management Specifications: High density, modularized plug-in design, 1U chassis with two 48-channel QAM cards, each card has 2 GE for input & output
