FU311B 10G IP QAM processor
64/128 non-adjacent carrier outputs, 384Mbps bandwidth for each RF port. 64/128 non-adjacent QAM carrier outputs (64 channels out per card). 64 IP output over UDP/RTP/RTSP, unicast/multicast,.
Key Specifications

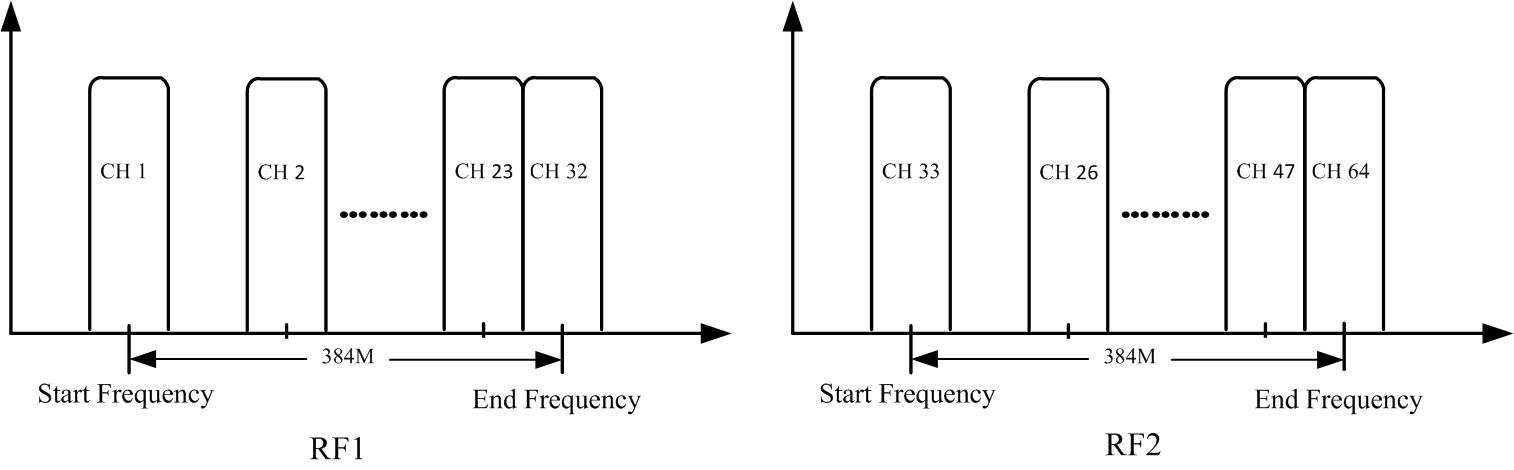

- QAM Channel 64/128 non-adjacent carrier outputs, 384Mbps bandwidth for each RF port
- Constellation 16, 32, 64 , 128, 256QAM
- J.83B/C Constellation :64/256QAM
- Output Level -20dBm~+10dBm(87~117dbµV), 0.1dB stepping
- Symbol Rate 3600~7000Ksps, 1ksps stepping5057Ksps (J.83B, 64QAM) ; 5361Ksps (J.83B, 256QAM)
- Transmission Rate Max 9600Mbps for each 10G SFP+/SFP input
- Transport Protocol TS over UDP/RTP, unicast and multicast, IGMP V2/V3
- Mux Max PIDs Remapping
Overview

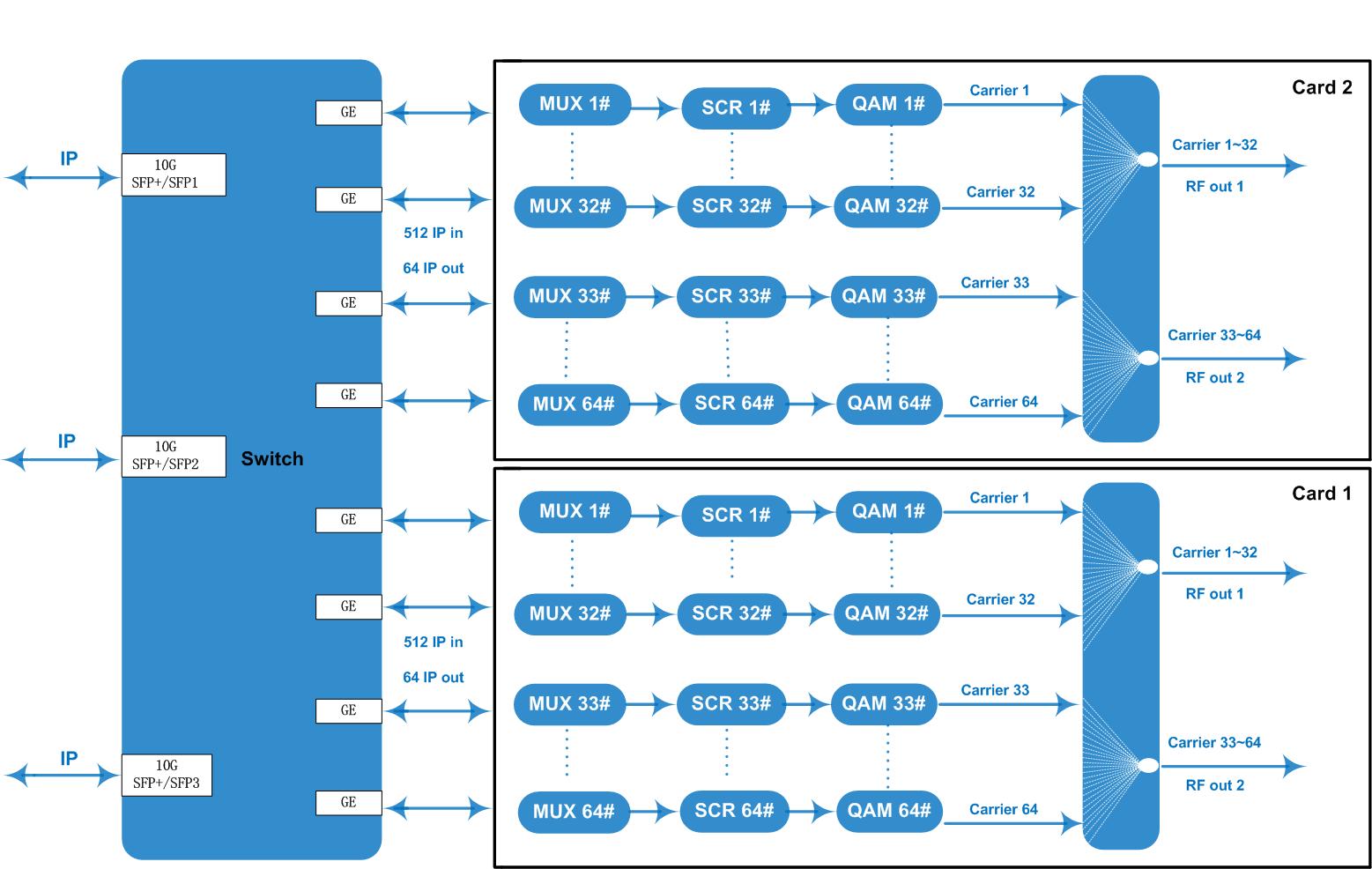

FU311B 10G IP QAM processor is an all-in-one device developed by FMUSER. It integrates multiplexer, scrambler and modulator in one body with 64 (or 128) DVB-C QAM channels output through 2 (or 4) RF ports. With 10G switch built in, it can process 10G optical signal to work as a traditional QAM modulator. The device is equipped with 1 (or 2) 64ch QAM card and characterized with dual RF output ports on each card to broaden the bandwidth for QAM carriers. Its high density helps operators to save cost to the most extent. Key Features: Support 3 SFP+ (10G)/SFP(1G) ports input & output from front panel, GE SFP port on rear; cards for option; High density, modularized plug-in design, 1U chassis with two 64-channel QAM cards; Support multiplexer and scrambler with 6 CAS Simul-cryption; 64/128 non-adjacent QAM carrier outputs (64 channels out per card); Supports accurate PCR adjusting/CA filtering, PID remapping and PSI/SI editing; Redundancy power supply (optional as per order); Web-based Network management Specifications: Support 3 SFP+ (10G)/SFP(1G) ports input & output from front panel, GE SFP port on rear cards for option
Technical Specifications
RF Modulation
Modulation Parameters
| Constellation | J.83A |
| Symbol Rate | 3600~7000Ksps, 1ksps stepping5057Ksps (J.83B, 64QAM) ; 5361Ksps (J.83B, 256QAM) |
| Constellation | 16, 32, 64 , 128, 256QAM |
| FEC | RS (204, 188) |
RF Output
| Transmission Rate | Max 9600Mbps for each 10G SFP+/SFP input |
| Scramble Standard | ETR289, ETSI 101 197, ETSI 103 197 |
| QAM Channel | 64/128 non-adjacent carrier outputs, 384Mbps bandwidth for each RF port |
| RF Range | 50~960MHz, 1kHz stepping |
| MER | ≥ 40dB |
DVB-C
| J.83B/C | Constellation :64/256QAM |
Encoding & Decoding
| Output Level | -20dBm~+10dBm(87~117dbµV), 0.1dB stepping |
IP Streaming
| Transport Protocol | TS over UDP/RTP, unicast and multicast, IGMP V2/V3 |
ASI / Transport Stream
ASI Interface
| Functions | PID remapping (auto/manually optional) |
Multiplexing
| Mux | Max PIDs Remapping |
Scrambling & Security
| Scrambling | Max simulcrypt CA |
System & Physical
Power
| Power Supply | AC 100V±10%, 50/60Hz; or AC 220V±10%, 50/60HzRedundancy power supply (optional as per order) |
Environment
| Temperature | 0~45℃(operation), -20~80℃(storage) |
Management
| Connection | Local/remote connection |
| System | Web-based Network management |
| General | Dimension |
