FU311C 10G IP QAM Processor

Overview

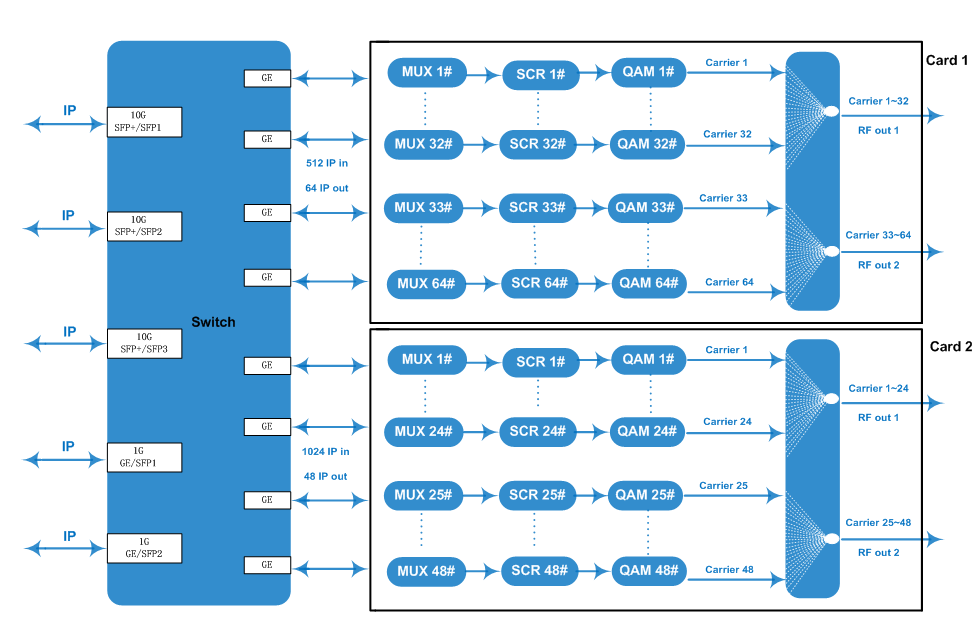

FU311C 10G IP QAM processor is an all-in-one device developed by FMUSER which integrates multiplexer, scrambler and modulator in one body with maximum 112 DVB-C QAM channels output. With 10G switch built in, it can process 10G optical signal to work as a traditional QAM modulator. The device is equipped with one fixed 64ch QAM card and another card slot to expand qam card (16/32/48QAM optional). Its high density helps operators to save cost to the most extent. Key Features: Support 3 SFP+ (10G)/SFP(1G) ports input & output from front panel, or RJ45 GE port input; & output from daughter cards; High density, modularized plug-in design, 1U chassis with max 2 QAM cards; Support multiplexer and scrambler with 6 CAS Simul-cryption;  Maximum 112 non-adjacent QAM carriers output;  Supports accurate PCR adjusting/CA filtering, PID remapping and PSI/SI editing;  Web-based Network management Specifications: Support 3 SFP+(10G)/SFP(1G) ports input & output from front panel, or RJ45 GE port input & output from daughter cards; 256 per output channel; Maximum 112 non-adjacent QAM carriers output; Input from Front Panel; Input from Daughter Card; Max 9600Mbps for each 10G SFP+/SFP input
