FU311E 10G IP QAM Processor

Overview

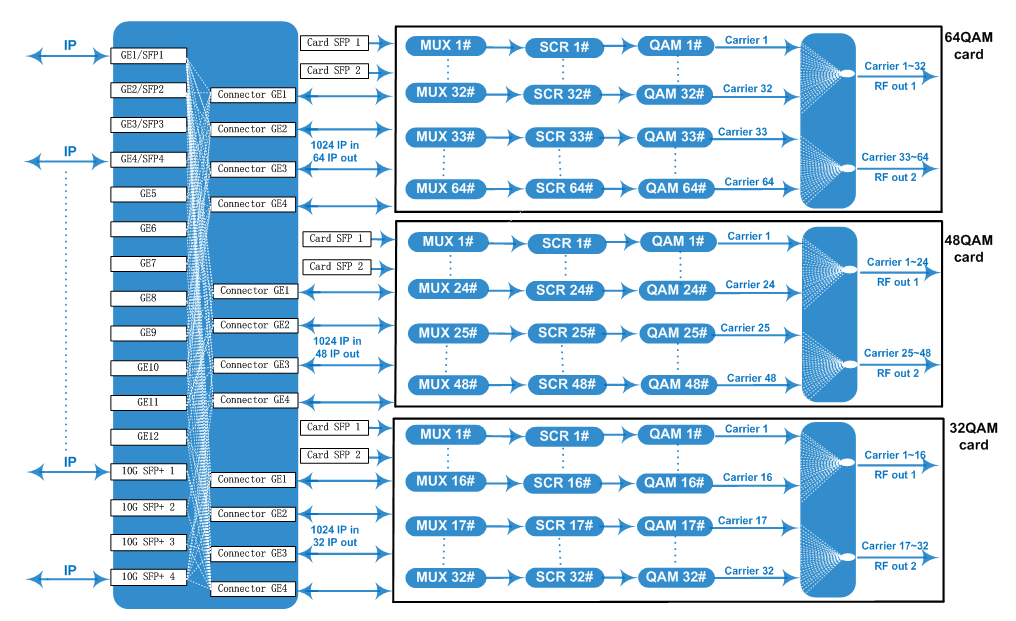

FU311E 10G IP QAM processor is an all-in-one device developed by FMUSER which integrates multiplexer, scrambler and modulator in one body with maximum 192 DVB-C QAM channels output. With 10G switch built in, it can process 10G optical signals to work as a traditional The processor is equipped with 2 cards slots to load 32/48/64 ch QAM card depends on the carriers license inside. Also it is optional with maximum 3 cards inside.Its high density helps operators to save cost to the most extent. Key Features: Support 4 SFP+ (10G)/4 SFP(1G) ports and 12 GE ports input & output from the front panel,; SFP port 1-4 and GE port 1-4 are in the same working group (choose one to use from the; corresponding SFP port and GE port) and 2 SFP ports input(optional) per daughter card (32/48/64; High density, modularized plug-in design, 1U chassis with max 3 QAM cards; Support multiplexer and scrambler with max 6 CAS Simultaneous Encryption; Maximum 192 non-adjacent QAM carriers output if with 3 cards inside; Flexible combination of 32QAM/48QAM/64QAM card by license; Supports accurate PCR adjusting/CA filtering, PID remapping and PSI/SI editing; Input Port/IP Backup function
