FU4013A DVB-S2X Receiver
2 DVBS/S2/S2X Tuner inputs. 32 IP input(UDP/RTP) for re-mux. IP (1 MPTS) over UDP and RTP output.
Key Specifications
- Output 1*MPTS over UDP and RTP, 1000M/100M Base-T Ethernet interfaces (unicast / multicast)
- FEC Demodulation QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/108PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9
- Input 2*RF (DVBS/S2/S2X), F type32*IP input for re-mux (UDP/RTP) through data(1000M/100M) ports
- Multiplexing Maximum PID Remapping
- Tuner DVB-S
- Symbol Rate QPSK/8PSK/16APSK: 0.5~45 Msps;8APSK/32APSK: 0.5~40 Msps
- Signal Strength -65~ -25dBm
- Function PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
Overview

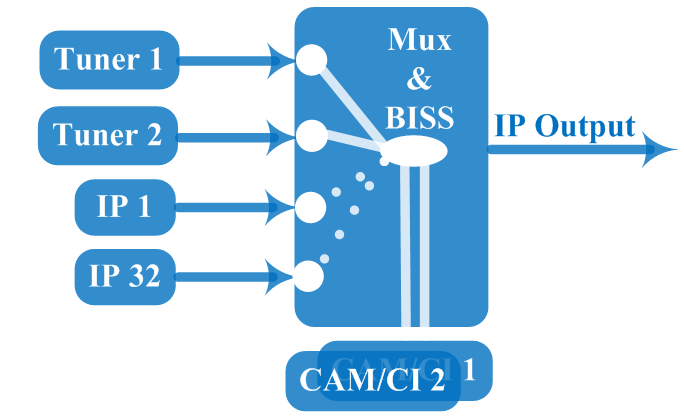

FU4013A is our low cost device which integrates demodulation, de-scrambler and re-mux (DVBS/S2/S2X) in one case to convert tuner signals into IP output. It supports 2 tuner input, and 1 MPTS output with UDP and RTP protocol, and the CAM/CI accompanied with tuner to descramble the encrypted tuner signals. The CAM requires no unsightly external power cords, cables, or additional remote control device. BISS function is also embedded to descramble Key Features: 2 DVBS/S2/S2X Tuner inputs; 32 IP input(UDP/RTP) for re-mux; Each CAM can decrypt multiple programs from Tuners; Support BISS descrambling (Up to 120Mbps); IP (1 MPTS) over UDP and RTP output; Support maximum 256 PID mapping per input channel; Support Diseqc function; Support web NMS management Specifications: Support maximum 256 PID mapping per input channel; 256 PIDs per input channel; 2 DVBS/S2/S2X Tuner inputs; 32 IP input(UDP/RTP) for re-mux; IP (1 MPTS) over UDP and RTP output; 32*IP input for re-mux (UDP/RTP) through data(1000M/100M) ports; 1*MPTS over UDP and RTP, 1000M/100M Base-T Ethernet interfaces (unicast / multicast); Network management (WEB)
Technical Specifications
RF Modulation
Modulation Parameters
| Symbol Rate | QPSK 0.5Msps~45Msps |
| FEC Demodulation | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Symbol Rate | QPSK/8PSK/16APSK 0.5Msps~45Msps32APSK0.5Msps~40 Msps |
| FEC Demodulation | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/108PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9 |
| Symbol Rate | QPSK/8PSK/16APSK: 0.5~45 Msps;8APSK/32APSK: 0.5~40 Msps |
| BISS Mode | Mode 1, Mode E; up to 120Mbps |
Tuner / Demodulator
| Input | 2*RF (DVBS/S2/S2X), F type32*IP input for re-mux (UDP/RTP) through data(1000M/100M) ports |
| Tuner | DVB-S |
| Signal Strength | -65~ -25dBm |
IP Streaming
| Output | 1*MPTS over UDP and RTP, 1000M/100M Base-T Ethernet interfaces (unicast / multicast) |
ASI / Transport Stream
ASI Interface
| Function | PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically |
Multiplexing
| Multiplexing | Maximum PID Remapping |
Scrambling & Security
| Descrambling | CAM/CI Quantity |
System & Physical
Power
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
Environment
| Environment | 0~45℃(work)；-20~80℃（Storage） |
Management
| System function | Network management (WEB) |
