IRD / Decoder / Transcoder

FU4015B DVB-S/S2/S2X Receiver

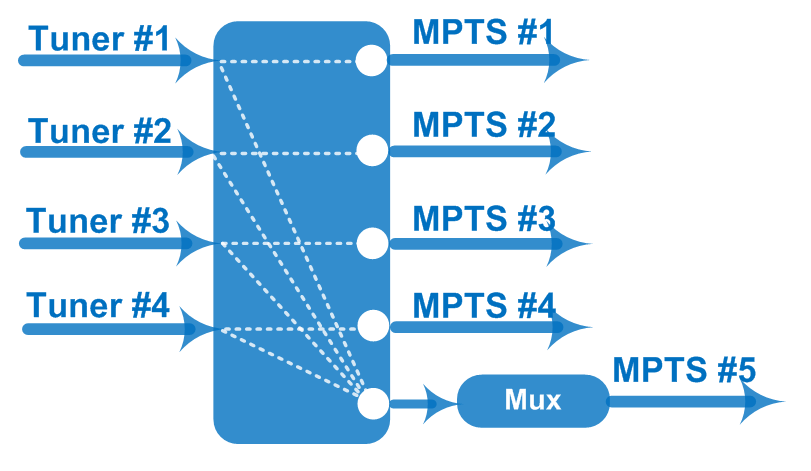

Support 4 tuners (DVB-S/S2/S2X) input. 4 Tuner input, F Type. 5 MPTS (4 MPTS out thru bypassing, 1 MPTS multiplexing) out over UDP/RTP thru Data port, 100/1000Mself-adaption, unicast/multicast.

Key Specifications

Input / Output 4 Tuner input, F Type5 MPTS (4 MPTS out thru bypassing, 1 MPTS multiplexing) out over UDP/RTP thru Data port, 100/1000Mself-adaption, unicast/multicast
Max input bitrate per tuner ≤170 Mbps
Mux Max number of managing PID: 256 (for 1 MPTS out thru multiplexing)
Constellation QPSK/8PSK/16APSK/8APSK/32APSK
Functions PID remapping (automatically/ manually)
Symbol Rate QPSK/8PSK/16APSK: 0.5~45 Msps32APSK:0.5~40 Msps
FEC QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/108PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9
DVB-S2X Symbol Rate

Request Quote WhatsApp

Overview

Key Features:  Support 4 tuners (DVB-S/S2/S2X) input;  5 MPTS (4 MPTS out thru bypassing, 1 MPTS multiplexing) out over UDP/RTP thru Data; port, unicast/multicast;  Up to 256 PIDs remapping per output channel;  Support PID re-mapping and pass-through;  Support Diseqc function;  Web-based NMS management Specifications: Input / Output; Up to 256 PIDs remapping per output channel; Max input bitrate per tuner; Max input bitrate per tuner; Support 4 tuners (DVB-S/S2/S2X) input; 4 Tuner input, F Type

Technical Specifications

RF Modulation

Modulation Parameters

Symbol Rate	0.5~45 Msps
Constellation	QPSK
FEC	1/2, 2/3, 3/4, 5/6, 7/8
Symbol Rate	QPSK/8PSK/16APSK: 0.5~45 Msps32APSK:0.5~40 Msps
Constellation	QPSK/8PSK/16APSK/32APSK
FEC	QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/108PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9
Constellation	QPSK/8PSK/16APSK/8APSK/32APSK

Tuner / Demodulator

Input / Output	4 Tuner input, F Type5 MPTS (4 MPTS out thru bypassing, 1 MPTS multiplexing) out over UDP/RTP thru Data port, 100/1000Mself-adaption, unicast/multicast
Max input bitrate per tuner	≤170 Mbps
Max input bitrate per tuner	≤170 Mbps
Signal Strength	-65 ~ -25dBm

DVB-S / S2 / S2X

DVB-S2X

Symbol Rate

ASI / Transport Stream

ASI Interface

Functions

PID remapping (automatically/ manually)

Multiplexing

Mux	Max number of managing PID: 256 (for 1 MPTS out thru multiplexing)

System & Physical

Power

Power supply	AC 110V±10%, 50/60Hz Or AC 220V±10%, 50/60Hz
Consumption	≤40W

Physical

Weight

3.5kg

Environment

Temperature

0~45℃(operation), -20~80℃(storage)

Management

System	Web management:100M NMS port
General	Dimensions

Since 2009

Manufacturing Experience

200+

Countries & Regions Served

2-Year

Warranty

Factory

Direct Pricing

Ideal Applications

Satellite program reception and redistribution

Broadcast monitoring and transcoding

Headend source decoding for re-encoding
