FU4019/FU4039 DVB-S2X/S2 Receiver/Multi-Mode Receiver
Support 8 tuners (DVB-S/S2/S2X or/and DVB-C/T/T2/ISDB-T) input; 1 U chassis optional for. 8 Tuner input (DVB-S/S2/S2X or/and DVB-C/T/T2/ISDB-T), F Type. 8 FTA DVB-S/S2/S2X Tuner Input, Version 1 or Version 2.
Key Specifications
- Input / Output 8 Tuner input (DVB-S/S2/S2X or/and DVB-C/T/T2/ISDB-T), F Type8 MPTS out thru bypassing over UDP/RTP thru Data port (Version 1)100/1000Mself-adaption, unicast/multicast
- Max input bitrate per tuner ≤170 Mbps
- Mux (Version 2) Max number of managing PID: 256 (for 2 MPTS out thru multiplexing) or 512 SPTS out
- Constellation QPSK/8PSK/16APSK/8APSK/32APSK
- Bandwidth 6/7/8 M
- Functions PID remapping (automatically/ manually)
- Symbol Rate QPSK/8PSK/16APSK: 0.5~45 Msps32APSK:0.5~40 Msps
- FEC QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/108PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9
Overview

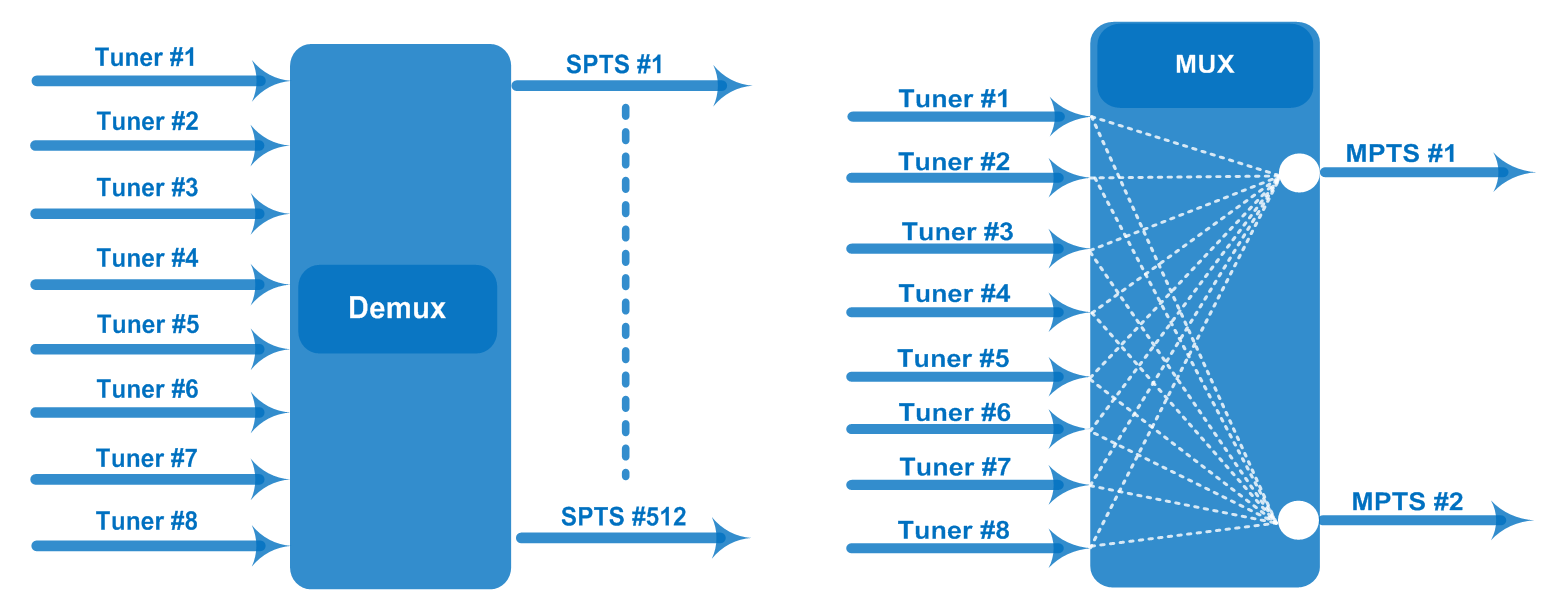

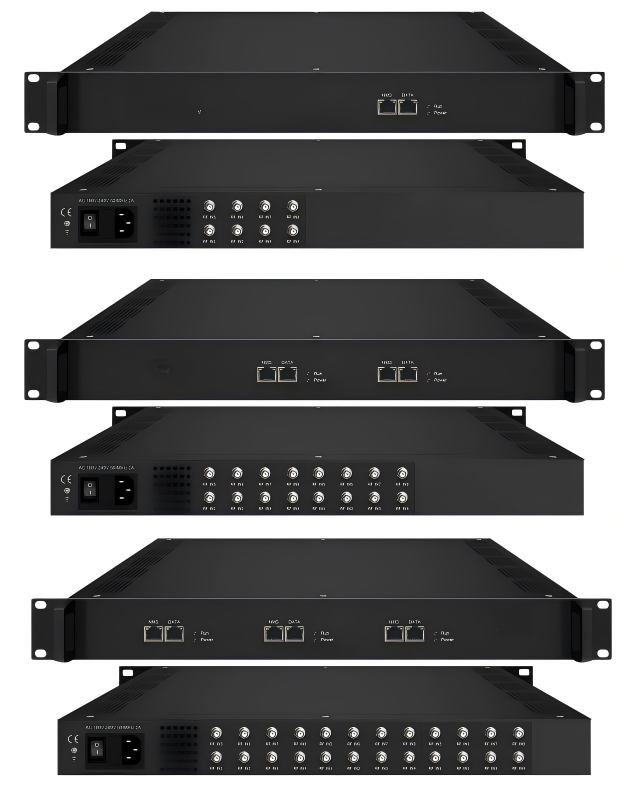

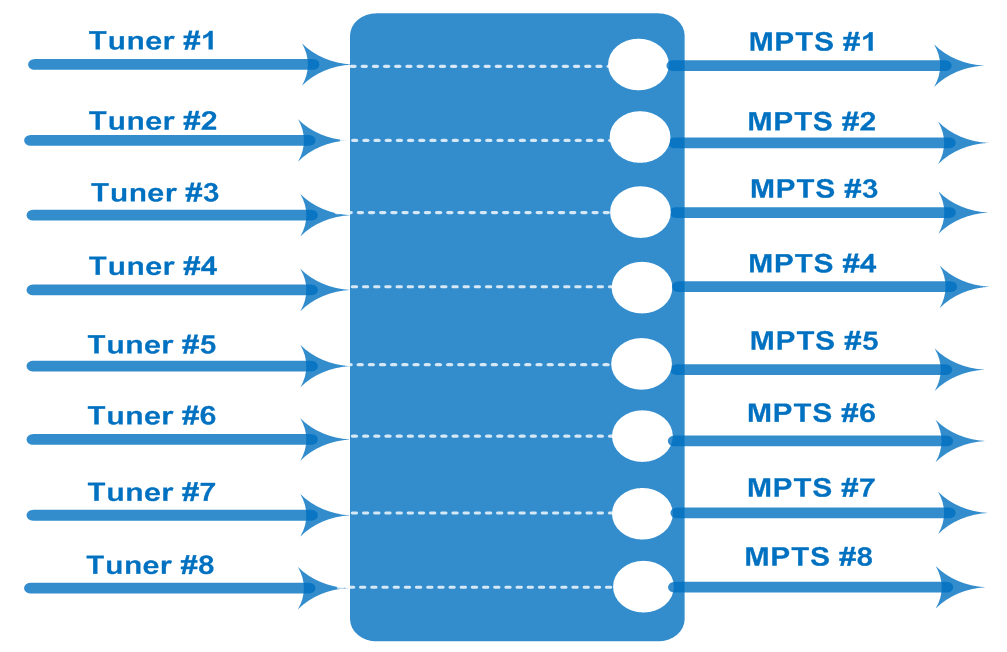

Key Features: Support 8 tuners (DVB-S/S2/S2X or/and DVB-C/T/T2/ISDB-T) input; 1 U chassis optional for; 1/2/3 cards maximum for 8/16/24 tuner input; Each tuner card are working independently with its; NMS and 1 GE Data port; 8 MPTS (8MPTS out thru bypassing) under Passthrough mode over UDP/RTP thru Data port,; unicast/multicast-Version 1; 2 MPTS out after multiplexing or 512 SPTS out switchable under Mux mode over UDP/RTP; thru Data port, unicast/multicast-Version 2; Up to 256 PIDs remapping per output channel (Mux mode only); Support PID re-mapping and pass-through (Mux mode only); Support Diseqc function (Mux mode only); Support Biss decryption, each tuner support maximum 64 BISS key decryption (Mux mode); Web-based NMS management Specifications: Input / Output; Max input bitrate per tuner; Max input bitrate per tuner; Version 2: Mux Mode (MPTS and SPTS output Switchable); Specifications (Per Card/8 Input); 8 Tuner input (DVB-S/S2/S2X or/and DVB-C/T/T2/ISDB-T), F Type; 8 FTA DVB-S/S2/S2X Tuner Input, Version 1 or Version 2; 16 FTA DVB-S/S2/S2X Tuner Input, Version 1 or Version 2
Technical Specifications
RF Modulation
Modulation Parameters
| Symbol Rate | 0.5~45 Msps |
| Constellation | QPSK |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Symbol Rate | QPSK/8PSK/16APSK: 0.5~45 Msps32APSK:0.5~40 Msps |
| Constellation | QPSK/8PSK/16APSK/32APSK |
| FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/108PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9 |
| Constellation | QPSK/8PSK/16APSK/8APSK/32APSK |
| Constellation | 16/32/64/128/256 QAM |
| Bandwidth | 6/7/8 M |
Tuner / Demodulator
| Input / Output | 8 Tuner input (DVB-S/S2/S2X or/and DVB-C/T/T2/ISDB-T), F Type8 MPTS out thru bypassing over UDP/RTP thru Data port (Version 1)100/1000Mself-adaption, unicast/multicast |
| Max input bitrate per tuner | ≤170 Mbps |
| Max input bitrate per tuner | ≤170 Mbps |
| Signal Strength | -65 ~ -25dBm |
DVB-S / S2 / S2X
| DVB-S2X | Symbol Rate |
DVB-C
| Standard | J.83A, J.83C |
ASI / Transport Stream
ASI Interface
| Functions | PID remapping (automatically/ manually) |
Multiplexing
| Mux (Version 2) | Max number of managing PID: 256 (for 2 MPTS out thru multiplexing) or 512 SPTS out |
System & Physical
Physical
| Weight | 3.5kg |
Management
| System | Web management:100M NMS port |
| General | Dimensions |
