IRD / Decoder / Transcoder

FU4033A Audio Decoder

1 Tuner input for option, F type, (DVB-C/T/T2/ISDB-T switchable or DVB-S/S2/S2X optional as per order). 2 IP inputs (UDP/RTP) via 2 100/1000M self-adaptive RJ45 ports. 2 ASI inputs, BNC interface.

Key Specifications

Input 1 Tuner input for option, F type, (DVB-C/T/T2/ISDB-T switchable or DVB-S/S2/S2X optional as per order)2 ASI inputs, BNC interface2 IP inputs (UDP/RTP) via 2 100/1000M self-adaptive RJ45 ports
Decoding Audio Format
Constellation QPSK, 8PSK, 8APSK, 16APSK, 32APSK
Bandwidth 5/ 6/7/8 M
Symbol rate QPSK/8PSK/16APSK:0.5~45Msps8APSK/32APSK: 0.5~40Msps
Signal Strength - 65- -25dBm
FEC QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/108PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9, 9/10
Standard DVB-C/J.83A, J.83C

Request Quote WhatsApp

Overview

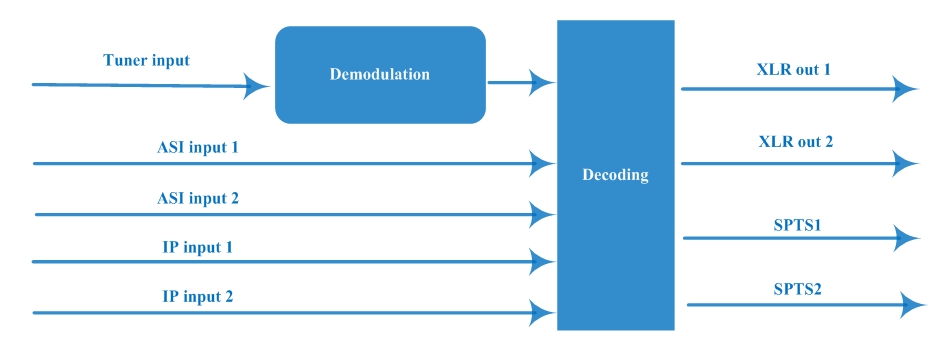

Key Features: Dual power supply(hot-plugging) and Single power supply are optional Specifications: 2 ASI inputs, BNC interface; 2 analog balanced audio out (XLR interfaces); 2 AES/EBU digital audio out (XLR interfaces); 2 SPTS output over UDP/RTP, unicast / multicast (for 2 decoded audio programs respectively),; 1 Tuner input for option, F type, (DVB-C/T/T2/ISDB-T switchable or DVB-S/S2/S2X optional as per order); 2 IP inputs (UDP/RTP) via 2 100/1000M self-adaptive RJ45 ports; 2*100/1000M self-adaptive rj45 interfaces; MPEG1 Layer2, DRA and more

Technical Specifications

RF Modulation

Modulation Parameters

Constellation	16/32/64/128/256 QAM
Symbol rate	1.0~7.0Msps
Constellation	QPSK, 16QAM, 64QAM
Bandwidth	6/7/8 M
Constellation	QPSK, 16QAM, 64QAM, 256QAM
Bandwidth	5/ 6/7/8 M
Constellation	DQPSK, QPSK, 16QAM, 64QAM
Symbol rate	0.5~45Msps
FEC	1/2, 2/3, 3/4, 5/6, 7/8
Constellation	QPSK
Symbol rate	QPSK/8PSK/16APSK:0.5~45Msps32APSK: 0.5~40Msps;
FEC	QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/108PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9, 9/10
Constellation	QPSK, 8PSK, 16APSK, 32APSK
Symbol rate	QPSK/8PSK/16APSK:0.5~45Msps8APSK/32APSK: 0.5~40Msps
Constellation	QPSK, 8PSK, 8APSK, 16APSK, 32APSK

Tuner / Demodulator

Input	1 Tuner input for option, F type, (DVB-C/T/T2/ISDB-T switchable or DVB-S/S2/S2X optional as per order)2 ASI inputs, BNC interface2 IP inputs (UDP/RTP) via 2 100/1000M self-adaptive RJ45 ports
Satellite	DVB-S
Signal Strength	- 65- -25dBm

DVB-C

Standard

DVB-C/J.83A, J.83C

Encoding & Decoding

Decoding

Audio Format

Since 2009

Manufacturing Experience

200+

Countries & Regions Served

2-Year

Warranty

Factory

Direct Pricing

Ideal Applications

Satellite program reception and redistribution

Broadcast monitoring and transcoding

Headend source decoding for re-encoding
