FU4405C 16in1 24in1 Mux-scrambling QAM Modulator(V3）

Overview

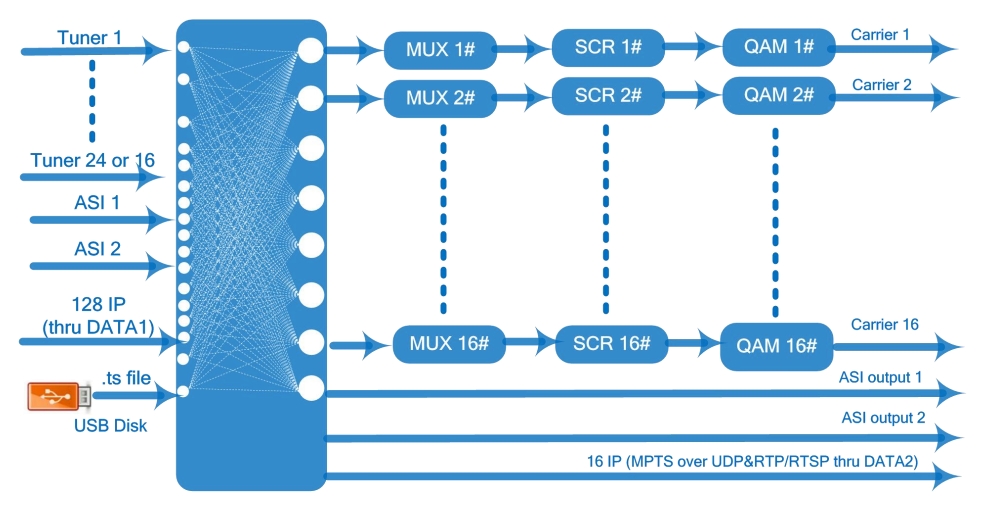

FU4405C v3 is a high performance and cost-effective QAM modulator designed by Fmuser. It supports 24 or 16 FTA DVB-S/S2/S2X or DVB-C/T/T2/ISDB-T multi-mode switchable tuner input, maximum 128 IP inputs through DATA1 and 2 TS inputs for re-mux through 2 ASI input ports. After demodulating, multiplexing and QAM modulating, it outputs 16 non-adjacent carriers and 16 IP (MPTS) through DATA2. Two kinds of software for order option, BISS descrambling version (without scrambler feature) or Scrambler version (wtihout BISS descrambling feature). FU4405C v3 is also characterized with high integrated level, high performance and low cost. This is very adaptable to a new generation CATV broadcasting system. Key Features: 24 (or 16) FTA DVB-S/S2/S2X or DVB-C/T/T2/ISDB-T multi-mode switchable Tuner; inputs with loop out + 2 ASI inputs+128 IP inputs thru DATA 1 over UDP and RTP protocol,; and TS files input by playing via an USB disk (FAT 32, USB 2.0); BISS descrambling, max 64 BISS Keys per output channel (optional); 16 DVB-C non-adjacent carriers output, within 192MHz bandwidth; 16 IP (MPTS) outputs over UDP and RTP/RTSP, as mirror of the carriers
