FU4417I 8in1/16in1 ISDBT Modulator
Max 512 (or 1024) IP input through 100/1000M Ethernet Port (SFP interface optional) over UDP/RTP, unicast and multicast, IGMP V2/V3, Max 840Mbps for each GE input. 8 (or 16) IP output over UDP/RTP/RTSP, unicast/multicast. Max…
Key Specifications
- Output Channel 8 (or 16) non-adjacent carriers output
- TS output 8 (or 16) IP output over UDP/RTP/RTSP, unicast/multicast100/1000M Ethernet Ports
- Max PIDs 256 per channel
- Constellation QPSK, 16QAM, 64QAM
- RF output level -20dBm~+10dBm(87~117dbµV), 0.1dB stepping
- RF frequency 50~960MHz, 1KHz step
- Functions PID remapping (auto/manually optional)
- Power Supply AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
Overview

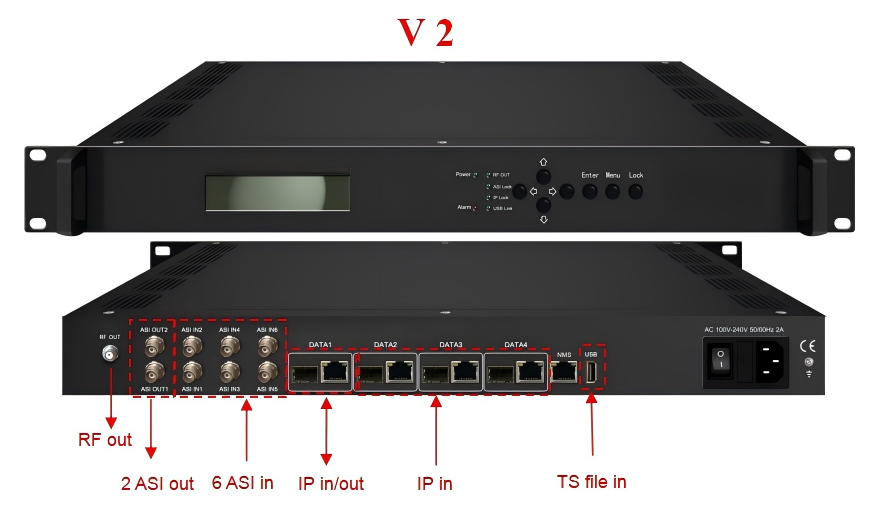

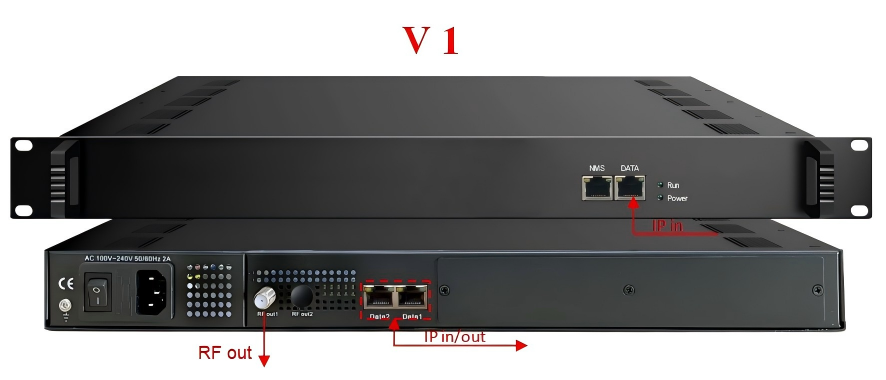

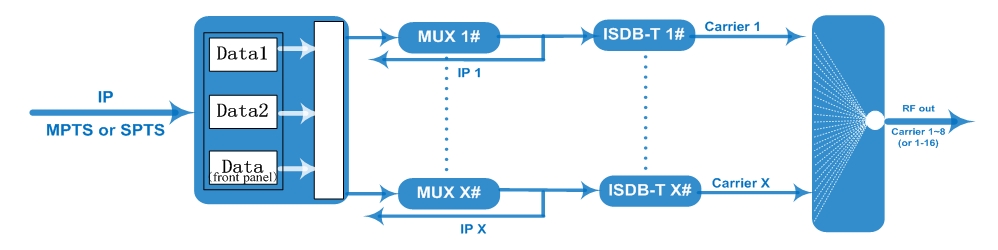

FU4417I ISDB-T modulator is the latest generational Mux-modulating device developed by FMUSER. It converts IP streams to 8 (or 16) ISDB-T non-adjacent carriers output through the RF interface. The device is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation DTV broadcasting system. Key Features: Max 840Mbps for each GE input; Supports accurate PCR adjusting; Supports CA filtering, PID remapping and PSI/SI editing; Supports up to 256 PIDS remapping per channel; 8 (or 16) non-adjacent carriers output, compliant to ISDB-Tb (ARIB STD-B31); Support Web-based Network management; Supports accurate PCR adjusting; Supports up to 256 PIDS remapping per channel; Support Web-based Network management; for V2 only Specifications: Max 512 (or 1024) IP input through 100/1000M Ethernet Port (SFP interface optional) over UDP/RTP, unicast and multicast, IGMP V2/V3, Max 840Mbps for each GE input; 6 ASI input, BNC interface; TS file input through USB disk - for V2 only; RF output level; 8 (or 16) non-adjacent carriers output; 8 (or 16) IP output over UDP/RTP/RTSP, unicast/multicast; 2 ASI output, one as mirror - for V2 only
Technical Specifications
RF Modulation
Modulation Parameters
| Constellation | QPSK, 16QAM, 64QAM |
| Guard Interval | 1/32, 1/16, 1/8, 1/4 |
| Transmission Mode | 2K, 4K, 8K |
| Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 |
RF Output
| MER | ≥40dB |
| RF frequency | 50~960MHz, 1KHz step |
| RF output level | -20dBm~+10dBm(87~117dbµV), 0.1dB stepping |
RF Performance
| ACLR | -50 dBc |
IP Streaming
IP Output
| TS output | 8 (or 16) IP output over UDP/RTP/RTSP, unicast/multicast100/1000M Ethernet Ports |
Stream Settings
| 8ch model | 16ch model |
ASI / Transport Stream
ASI Interface
| Max PIDs | 256 per channel |
| Functions | PID remapping (auto/manually optional) |
Multiplexing
| Output Channel | 8(or 16) |
| Output Channel | 8 (or 16) non-adjacent carriers output |
System & Physical
Power
| Power Supply | AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
Physical
| Weight | 5.5kg |
Environment
| Temperature | 0~45℃(operation), -20~80℃ (storage) |
Management
| System | Web-based NMS management;LCD+Keyboard management - for V2 only |
| General | Demission |
