FU4443 32 in 1 IP QAM Modulator (with 1 RF out)

Overview

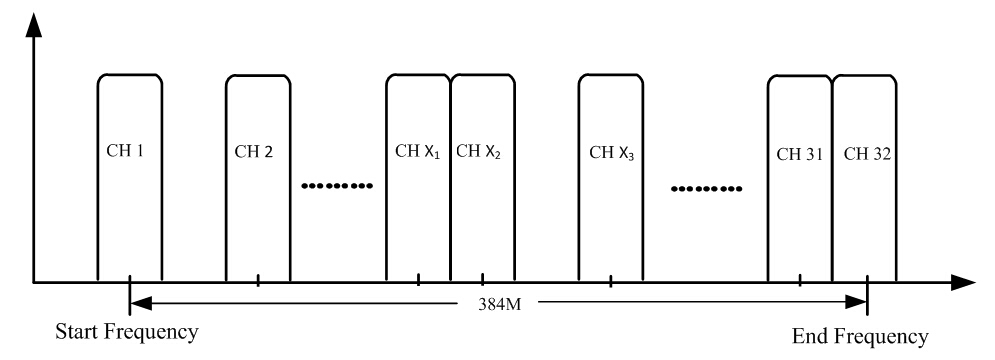

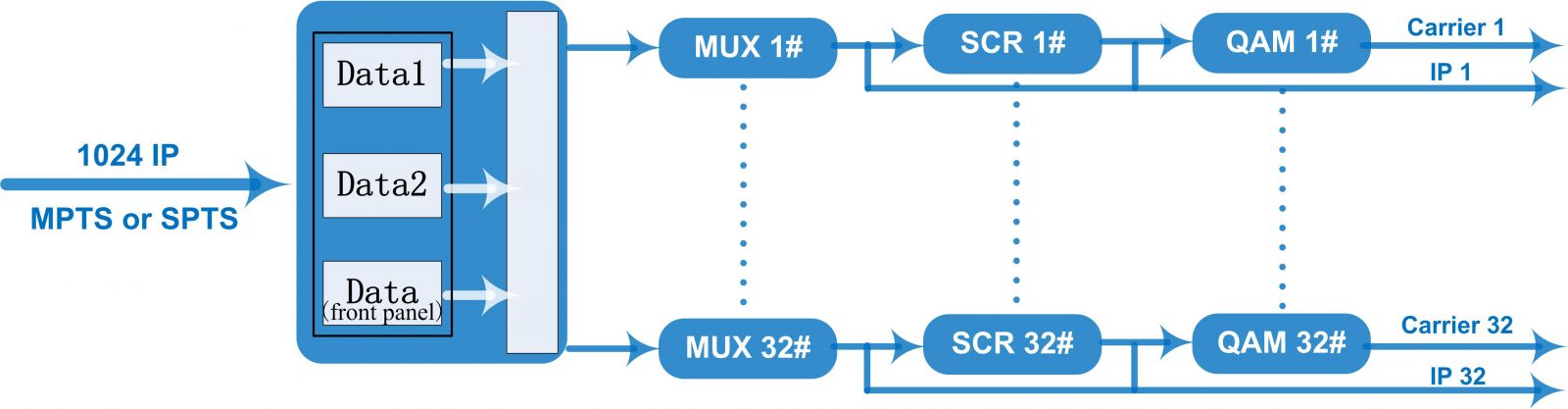

FU4443 32 in 1 IP QAM modulator is FMUSER Mux-scrambling-modulating all-in-one device. It supports maximum 1024 IP input through the 3 GE ports and 32 multiplexing scrambling QAM (DVB-C) modulating channels with non-adjacent carriers (50MHz~960MHz) output through the RF output interface. Its pay-as-you-grow modular design and flexible configuration are making it extremely scalable, very reliable with high performance, all of which are adaptable to newly generation CATV broadcasting system. Key Features:  3 GE ports (max 1024 IP in):; Data1 & Data2 bi-directional ports, max 512 IP in, 32 IP out; Data port (located on front panel), max 128 IP in;  Max 840Mbps for each GE input;  Supports accurate PCR adjusting/CA filtering, PID remapping and PSI/SI editing;  Supports up to 256 PIDS remapping per channel;  Support 32 IP output through Data1 & Data2 over UDP/RTP/RTSP;  32 non-adjacent QAM carriers output, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B;  Supports RS (204,188) encoding;  Support Web-based Network management; 3 GE ports (max 1024 IP in):
