FU4443 32 in 1 IP QAM Modulator (with 2 RF out)

Overview

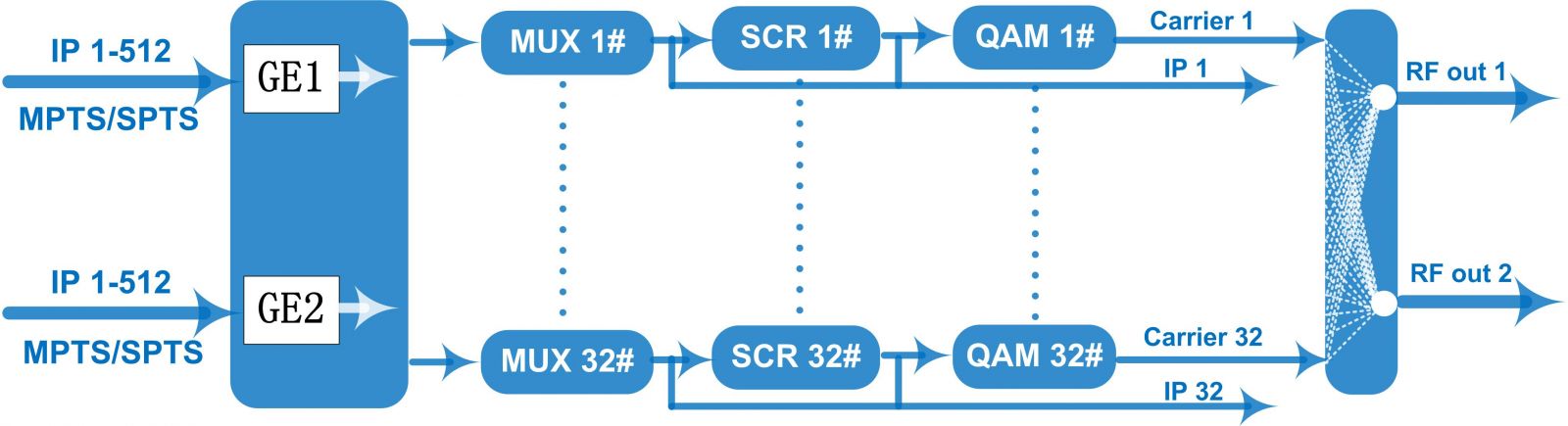

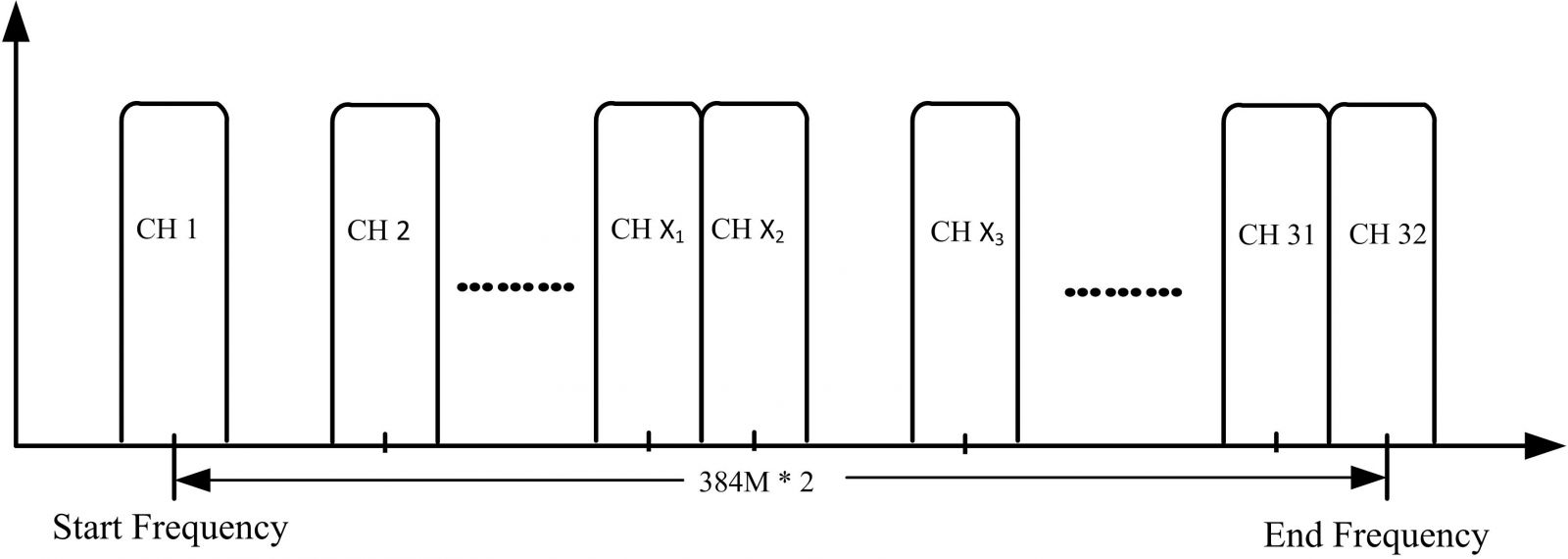

FU4443 (-D) IP QAM modulator is Mux-scrambling-modulating all-in-one device developed by FMUSER. It has 32 multiplexing channels, 32 scrambling channels and 32 QAM (DVB-C) modulating channels, and supports maximum 1024 IP input through the GE port and 32 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. The device is characterized with dual RF output ports which broaden the bandwidth for QAM carriers. Key Features:  2 GE input, Data1 and Data2 (SFP interface optional);  Supports up to 1024 IP input through GE1 & GE2 over UDP/RTP;  Max 840Mbps for each GE input;  Supports accurate PCR adjusting, CA PID filtering, PID remapping and PSI/SI editing;  Supports up to 256 PID remapping per channel;  Support DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and;  Support 32 multiplexed or scrambled IP out over UDP/RTP/RTSP;  32 non-adjacent QAM carriers output with 2 RF ports, compliant to DVB-C (EN 300 429); and ITU-T J.83 A/B;  Supports RS (204,188) encoding;  Support Web-based Network management
