FU4459C (V2) 4 in 1 DVB-C Modulator

Overview

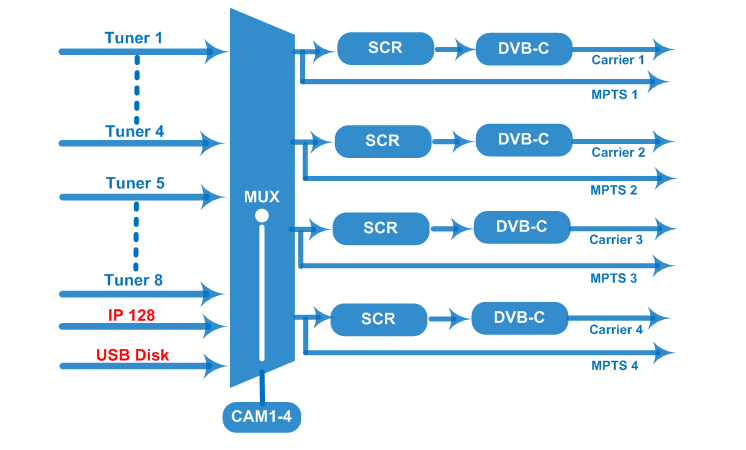

FU4459C (V2) is a high performance and cost-effective DVB-C modulator designed by Fmuser. It has 8 tuner inputs, after multiplexing, scrambling and modulating process, then it gives 4 DVB-C non-adjacent carriers output. To meet customers’ various requirements, this device is also equipped with 128 IP input and 4 MPTS output over UDP and RTP. Its pluggable structure design greatly facilitates the change of modules as needed. Moreover, it has 4 CAM/CI slots to descramble the programs from the 4 tuner inputs in the 2 CI-Tuner Modules. One CAM can decrypt multiple programs from the corresponding tuner input in the same one Tuner-CI module, and the 4 tuner inputs in the chassis are for FTA signals only Key Features:  DVB-S/S2/S2X tuner inputs (Supporting PLS/Multi-Stream) or DVB-T/(T)/C/ISDB-T; multi-mode switchable tuner inputs, 2 types of tuner inputs for order option;  Pluggable Demodulation Module (4*RF in/Loop out + 4*CAM Slots);  One CAM can decrypt multiple programs from the corresponding tuner input in the same; one Tuner-CI module, and the 4 tuner inputs in the chassis are for FTA signals only;  maximum 128 IP input (MPTS/SPTS) over UDP and RTP protocol
