FU4459TS(FU4459CS) 4 in 1 DVB-T(DVB-C) Modulator
4*DVB-T/C carrier output and 4 IP (MPTS) output over UDP and RTP protocol. 8 DVB-S2 FTA tuner+ 4 DVB-T tuner input---Version III. 8 DVB-T FTA tuner+4 DVB-S2 tuner input---Version IV.
Key Specifications
- RF out 4*DVB-T adjacent carriers combined output, 40M total bandwidth limitation
- FEC Demodulation 1/2, 2/3, 3/4, 5/6, 7/8 QPSK
- Constellation QPSK, 16QAM, 64QAM
- RF output level -28~ -3 dBm (79~105 dbµV), 0.1db step
- Multiplexing Maximum PID Remapping
- Bandwidth 6M, 7M, 8M
- Modulation DVB-T
- RF frequency 50~960MHz, 1KHz step
Overview

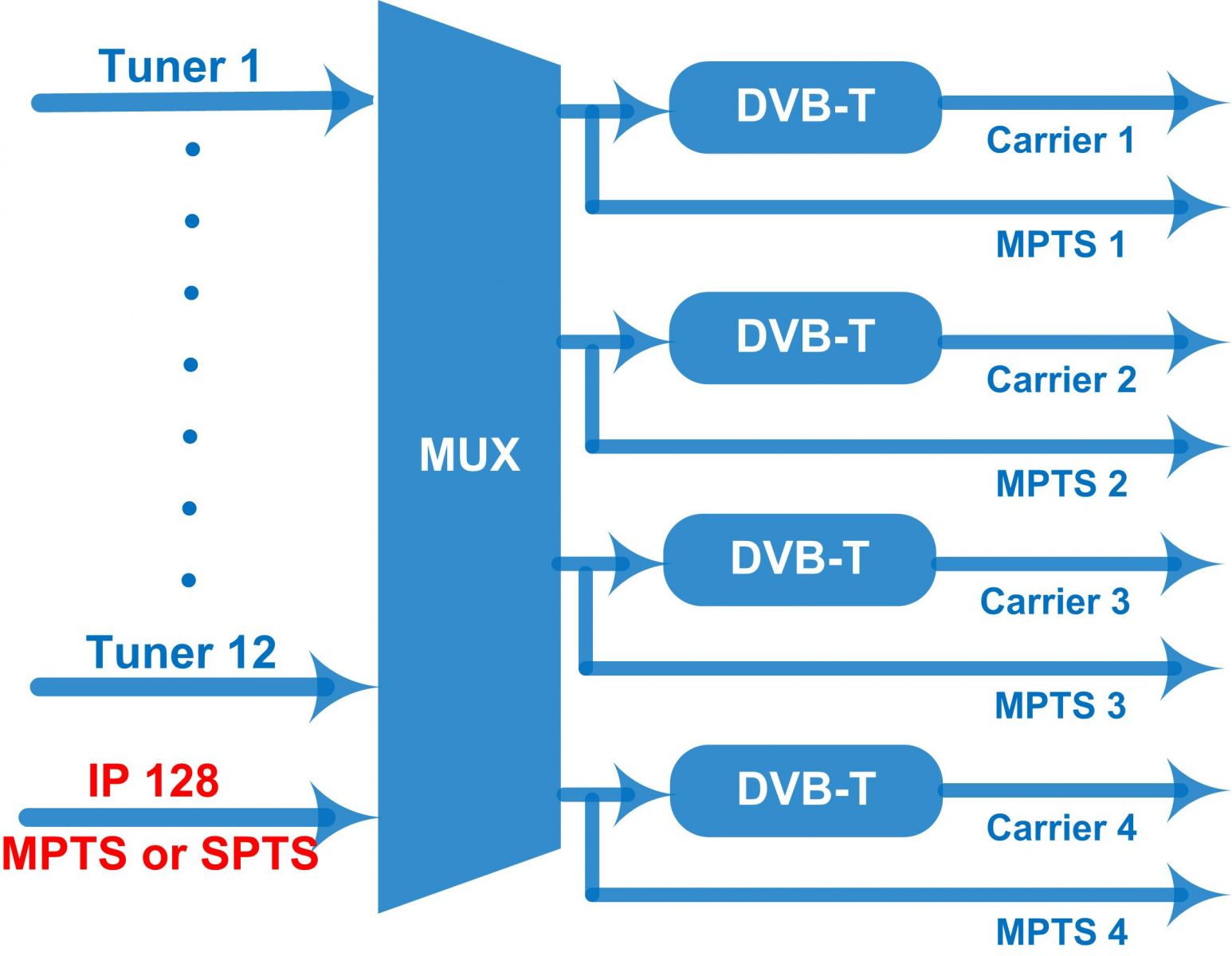

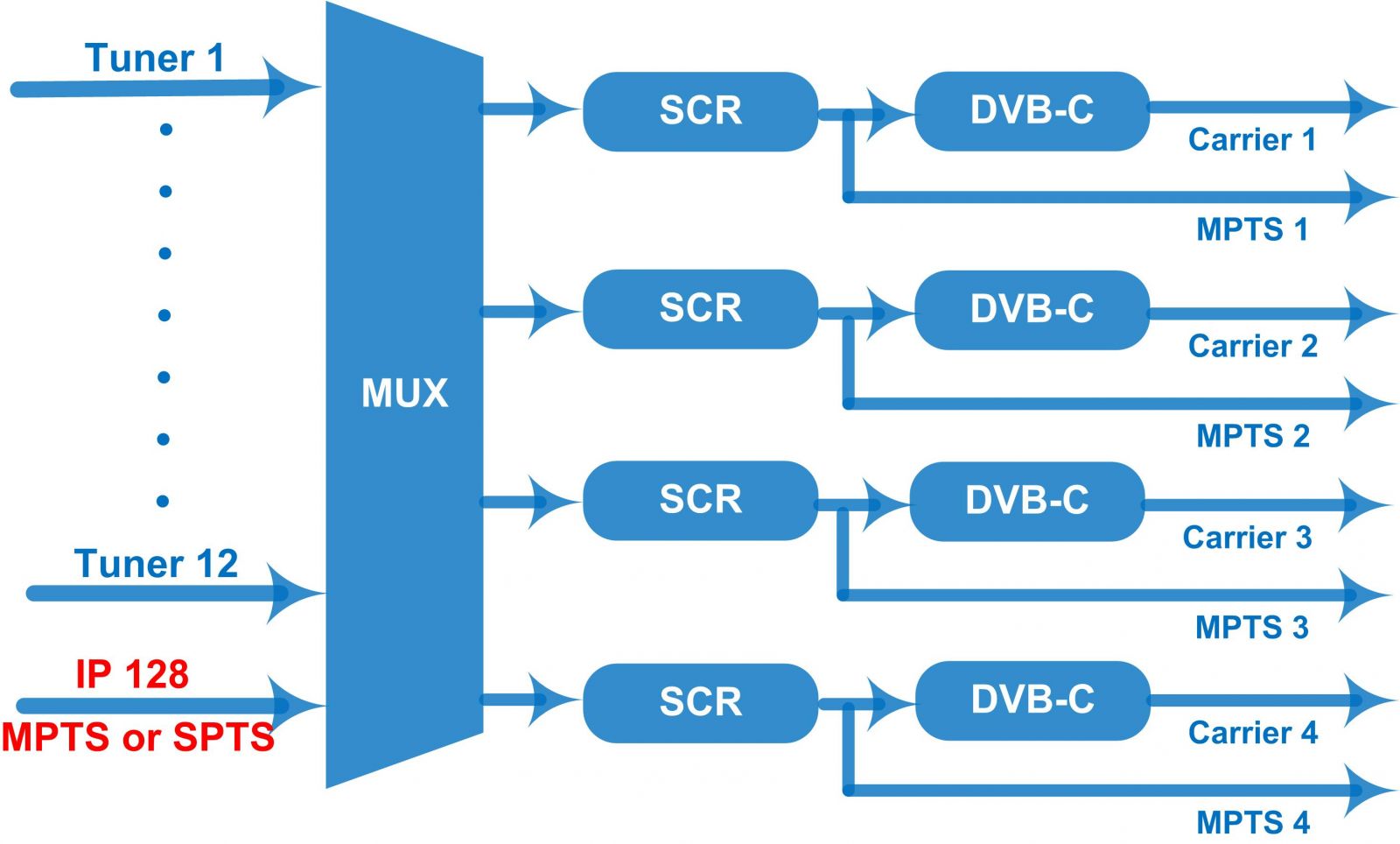

FU4459TS (FU4459CS) is a high performance and cost-effective DVB-T (DVB-C optional) modulator designed by Fmuser. It supports DVB-S2 (DVB-(T) optional) tuner inputs, after multiplexing, scrambling (only for DVB-C) and modulating process, then it gives 4 RF output. To meet customers’ various requirements, this device is also equipped with 128 IP input and 4 MPTS output over UDP and RTP. Its pluggable structure design greatly facilitates the change of modules as needed. Moreover, FU4459TS (FU4459CS) can support Biss descrambling and can be upgraded and controlled through network system, which allows it to be widely used in setting up digital broadcasting network and provide good signals for scientific laboratory and DVB-T STB. Key Features: 12 DVB-S2 FTA Tuner input ports---Version I; 12 DVB-(T) Tuner input ports---Version II; 8 DVB-S2 FTA tuner+ 4 DVB-(T) tuner input---Version III; 8 DVB-(T) FTA tuner+4 DVB-S2 tuner input---Version IV; Support maximum 128 IP input(MPTS/SPTS) over UDP and RTP protocol; Support Biss descrambling; Support 4 groups multiplexing +4 groups DVB-T modulating----FU4459TS
Technical Specifications
RF Modulation
Modulation Parameters
| Symbol rate | 2-45Msps |
| FEC Demodulation | 1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
| Symbol rate | QPSK 1~45Mbauds; 8PSK 2~30Mbauds |
| Code rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| Constellation | QPSK, 8PSK |
| Bandwidth | 6M, 7M, 8M |
| FFT mode | 2K, |
| Bandwidth | 6M, 7M, 8M |
| Constellation | QPSK, 16QAM, 64QAM |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
RF Output
| MER | ≥42 dB |
| RF frequency | 50~960MHz, 1KHz step |
| RF out | 4*DVB-T adjacent carriers combined output, 40M total bandwidth limitation |
| RF output level | -28~ -3 dBm (79~105 dbµV), 0.1db step |
Tuner / Demodulator
| Signal Strength | -65~-25dBm |
DVB-T / T2
| Modulation | DVB-T |
ASI / Transport Stream
ASI Interface
| BISS descrambling | Mode 1, Mode E (Up to 850Mbps) (descramble individual program) |
| Function | PID remapping |
Multiplexing
| Multiplexing | Maximum PID Remapping |
