FU4475 64 in 1 IP QAM modulator

Overview

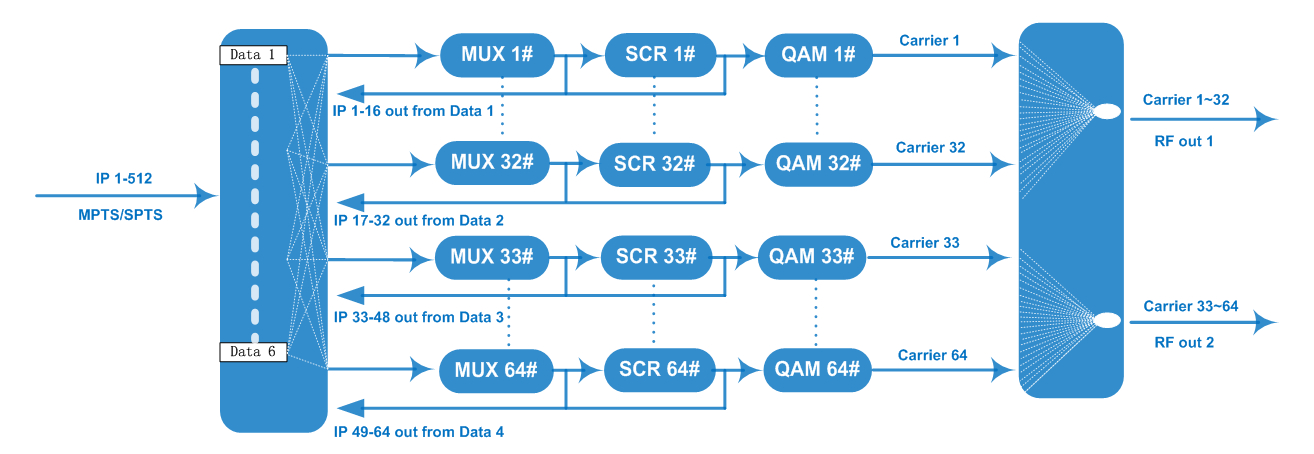

FU4475 64 in 1 IP QAM modulator is a Multiplexing-scrambling-modulating all-in-one device developed by FMUSER. It has 64 multiplexing channels, 64 scrambling channels and 64 QAM (DVB-C) modulating channels, and supports maximum 512 IP inputs through 6 data ports and 64 non-adjacent carriers (50MHz~960MHz) output through 2 RF output interfaces. The device is characterized with dual RF output ports which broaden the bandwidth for QAM Key Features:  6 GE inputs (4*RJ45, 2*SFP);  Supports up to 512 IP inputs over UDP/RTP;  Max 840Mbps and 512 IP inputs for each GE input;  Supports multiplexing with accurate PCR adjusting, CA PID filtering, PID remapping and;  Supports up to 256 PID remapping per channel;  Support DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and;  Support 64 multiplexed or scrambled IP outputs over UDP/RTP/RTSP;  64 non-adjacent QAM carriers output from 2 RF interfaces, compliant to DVB-C (EN 300 429); and ITU-T J.83 A/B/C;  Supports RS (204,188) encoding;  Support Web-based Network management; 6 GE inputs (4*RJ45, 2*SFP) Specifications: 384Mbps bandwidth for each RF interface
