FU4513E DVB-S2 Modulator

Overview

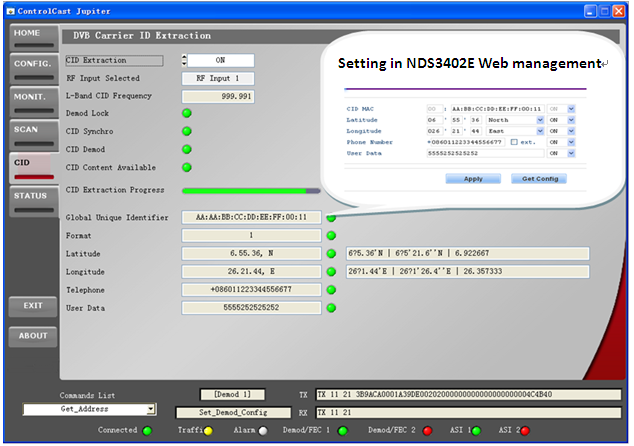

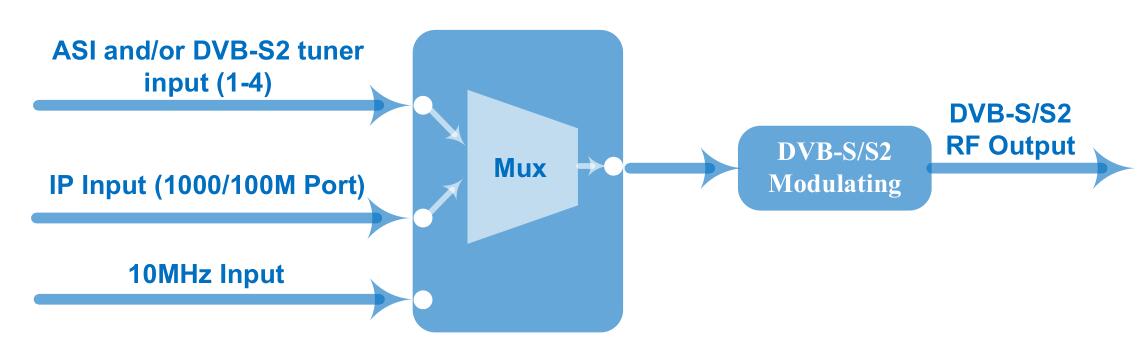

FMUSER FU4513E is a high-performance modulator developed according to DVB-S2 (EN302307) standard which is the standard of second generation of the European broadband satellite telecommunication. It is to convert the input satellite signal and/or ASI and IP streams into digital DVB-S/S2 RF output. BISS scrambling mode is inserted to this DVB-S2 modulator, which helps to safely distribute your programs. It is easy to reach local and remote control with Web-server NMS software and LCD in the front panel. Key Features: Fully complying with DVB-S2 (EN302307) and DVB-S (EN300421) standard; ASI and/or DVB-S2 inputs for re-mux or pass through (4 ports for ASI and S2; tuner input combination); Support IP (1000/100M) signal input for re-mux or pass through; Support Multiplexing and PSI/SI edit; QPSK, 8PSK, 16APSK, 32APSK Constellations; Support RF CID setting (Optional as per order); Constant temperature crystal oscillator, as high as 0.1ppm stability; Support coupling 10Mhz clock output through RF output port; Support 24V power output through RF output port; Support BISS scrambling; Support SFN TS transmission Specifications: 1*External 10MHz Input (BNC Interface)
