FU4514 DVB-S/S2/S2X Modulator
1*IP Input (RJ45, 1000/100M TS Over UDP). 4 ASI inputs supporting backup (3 for backup) and 1 IP (1000/100M) signal input for re-mux. Support coupling 10Mhz clock output through RF output port.
Key Specifications
- 10MHz Input 1*10MHz Input (BNC Interface)
- ASI Input Supporting both188/204 Byte Packet TS Input
- IP Input 1*IP Input (RJ45, 1000/100M TS Over UDP)
- RF Output RF Range: 950 ~ 2150 MHz, 10KHz step
- Multiplexing Maximum PID Remapping
- Function PID remapping (automatically or manually)
- FEC/ Convolution Rate 1/2, 2/3, 3/4, 5/6, 7/8
- Symbol Rate 0.05~45Msps
Overview

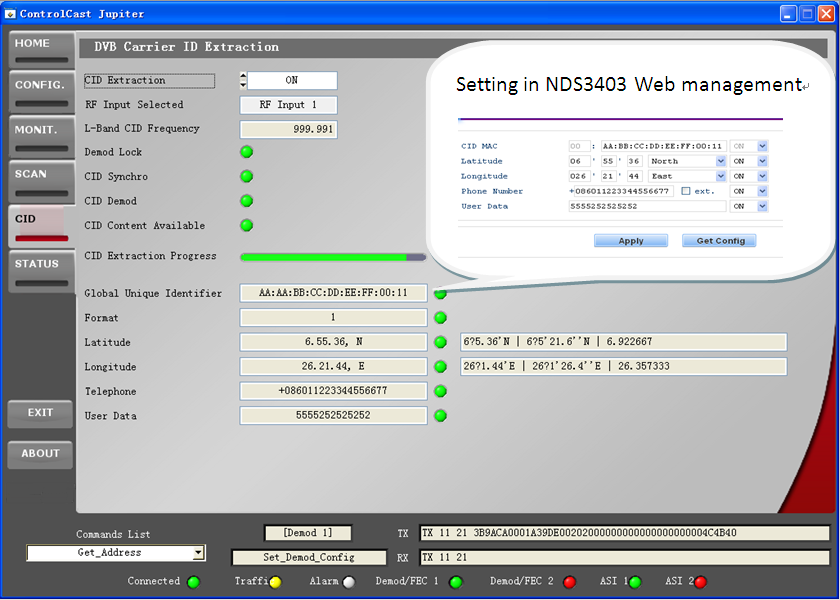

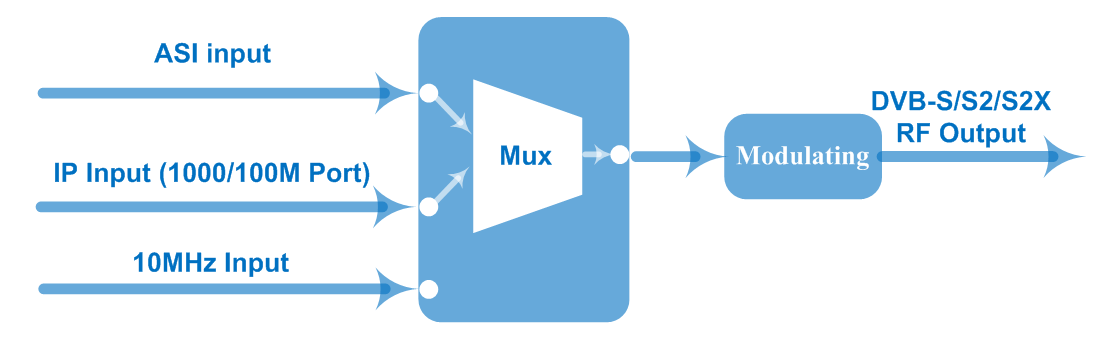

FMUSER FU4514 is a high-performance modulator developed according to DVB-S2X (EN302 307-2) standard which is the standard of third generation of the European broadband satellite telecommunication. It is to convert the input ASI and IP signals alternatively into digital DVB-S/S2/S2X RF output. BISS scrambling mode is inserted to this DVB-S2X modulator, which helps to safely distribute your programs. It is easy to reach local and remote control with NMS software and LCD in the front panel. Key Features: Fully complying with DVB-S (EN300 421), DVB-S2 (EN302 307) and DVB-S2X (EN 302; 4 ASI inputs supporting backup (3 for backup) and 1 IP (1000/100M) signal input for re-mux; QPSK, 8PSK, 8APSK, 16APSK, 32APSK Constellations; Support RF CID setting; Constant temperature crystal oscillator, as high as 0.1ppm stability; Support coupling 10Mhz clock output through RF output port; Support 24V power output through RF output port; Support BISS scrambling; Support local and remote control with Web-server NMS; Support SFN TS transmission; 4 ASI inputs supporting backup (3 for backup) and 1 IP (1000/100M) signal input for re-mux
Technical Specifications
RF Modulation
Modulation Parameters
| Outer coding | RS Coding |
| Inner coding | Convolution |
| Constellation | QPSK |
| FEC/ Convolution Rate | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Roll-off Factor | 0.2,0.25,0.35 |
| Symbol Rate | 0.05~45Msps |
RF Output
| RF Output | RF Range: 950 ~ 2150 MHz, 10KHz step |
Encoding & Decoding
| 10MHz Input | 1*10MHz Input (BNC Interface) |
IP Streaming
| IP Input | 1*IP Input (RJ45, 1000/100M TS Over UDP) |
ASI / Transport Stream
ASI Interface
| ASI Input | Supporting both188/204 Byte Packet TS Input |
| Function | PID remapping (automatically or manually) |
| BISS Scramble | Mode 1, Mode E, Mode 0 |
Multiplexing
| Multiplexing | Maximum PID Remapping |
System & Physical
Power
| Power | 100-240VAC±10%,50Hz-60Hz |
Environment
| Temperature | 0~45℃(operation), -20~80℃ (storage) |
Management
| System | Web-server NMS |
