FU4621 Multi-Channel Transcoder
Video input in MPEG2/H.264/H.265 format, output in H.264/H.265 format. IP input over UDP/RTMP/RTSP/HTTP/HLS/SRT; Video file input over TS/MP4/MKV/MOV/FLV. IP SPTS output over UDP/RTMP/HTTP/HLS/SRT.
Key Specifications
- Output Format H.264 (main/baseline/high profile); H.265
- Video file input TS, MP4, MKV, MOV, FLV
- Resolution Input: 4K-50/25, 1080p-60/50, 1080i-60/50, 720p-60/50, 576i, 480i
- 4K-50 H.265/H.264/MPEG2
- Input IP Stream Input
- Video Input Format
- Bitrate out MPEG-2: 32Kbps~384KbpsAC3, AAC, AAC-HE, AAC-HE-V2: 48Kbps~640Kbps
- Bitrate out 0.5Mbps - 20 Mbps
Overview

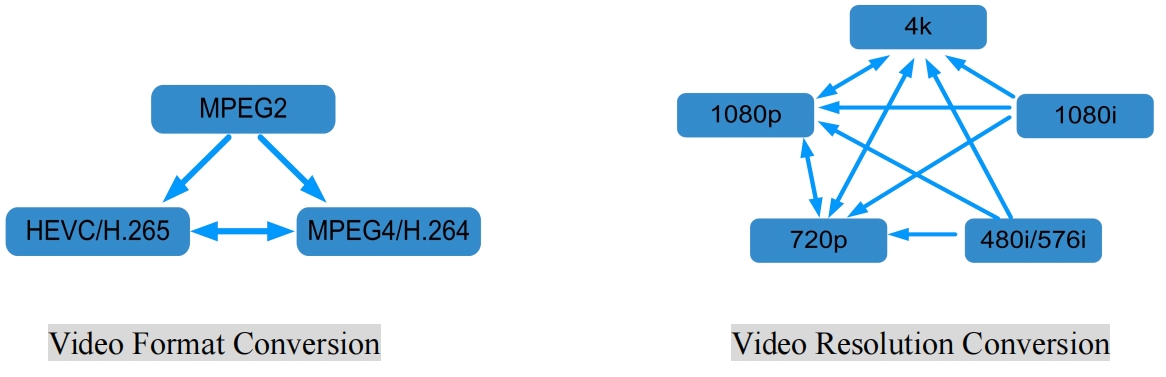

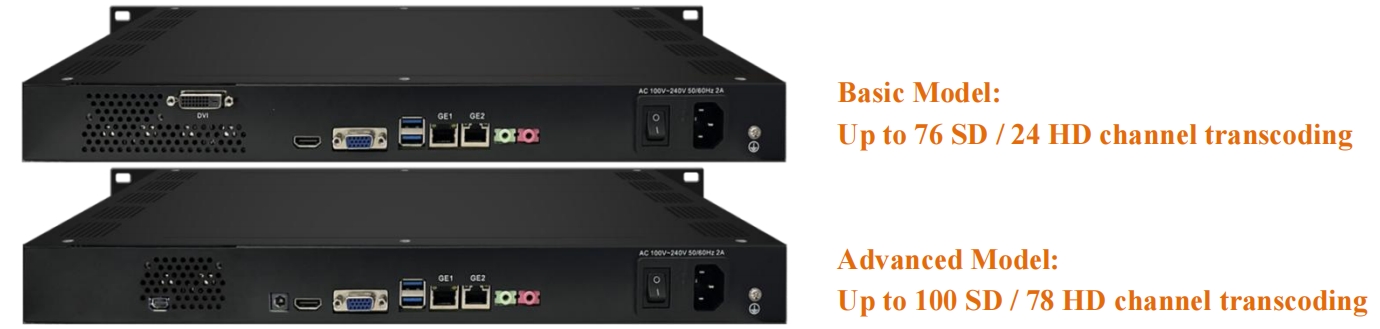

FU4621 multi-channel transcoder supports to convert multiple video formats to H.264/H.265 based on software. With enhanced hardware, it presents superior performance with high reliability and stability. It is typically used to reduce video bitrate and more effectively utilize the tight network bandwidth resources. Below data is from internal test and for reference only. The data may change in actual applications. Key Features: Support multi-channel transcoding; Video input in MPEG2/H.264/H.265 format, output in H.264/H.265 format; IP input over UDP/RTMP/RTSP/HTTP/HLS/SRT; Video file input over TS/MP4/MKV/MOV/FLV; IP SPTS output over UDP/RTMP/HTTP/HLS/SRT; Support convert one stream output by multiple protocols; Support resolution and bitrate downscale and upscale conversion; Support null packet insert (for UDP out); Web-base GUI and LCD/Key button for easy management; Up to 76 SD / 24 HD channel transcoding; Up to 100 SD / 78 HD channel transcoding; Application Example; Transcoding Mode Example Specifications: Video input in MPEG2/H.264/H.265 format, output in H.264/H.265 format; IP input over UDP/RTMP/RTSP/HTTP/HLS/SRT; Video file input over TS/MP4/MKV/MOV/FLV
Technical Specifications
Encoding & Decoding
Video
| GOP | 0-60 |
| Resolution | Input: 4K-50/25, 1080p-60/50, 1080i-60/50, 720p-60/50, 576i, 480i |
| Video quality mode | high, balanced, normal |
| Resolution | Video Format |
Audio
| Audio | Format |
| Sampling rate | 44.1KHz, 48KHz |
Codec Settings
| Video file input | TS, MP4, MKV, MOV, FLV |
| Video | Input Format |
| Output Format | H.264 (main/baseline/high profile); H.265 |
IP Streaming
IP Input
| Input | IP Stream Input |
IP Output
| Bitrate out | 0.5Mbps - 20 Mbps |
| Bitrate out | MPEG-2: 32Kbps~384KbpsAC3, AAC, AAC-HE, AAC-HE-V2: 48Kbps~640Kbps |
Stream Settings
| IP out | 2x GE port, RJ45, SPTSProtocol:UDP, RTMP (Client mode, push stream to server)RTMP, HTTP, HLS (Server mode, pull stream)SRT (just use caller mode and TS payload) |
System & Physical
Power
| Power Supply | AC 100V-240V 50/60Hz, 2A |
| Consumption | ≤150W |
Physical
| Net weight | Approx 4kg |
Environment
| Temperature | 0~50℃(operation), -20~80℃(storage) |
Management
| System | Web-base GUI and LCD/Key button |
| General | Dimension |
| 4K-50 | H.265/H.264/MPEG2 |
