FU4625 Multiplexer Scrambler

Overview

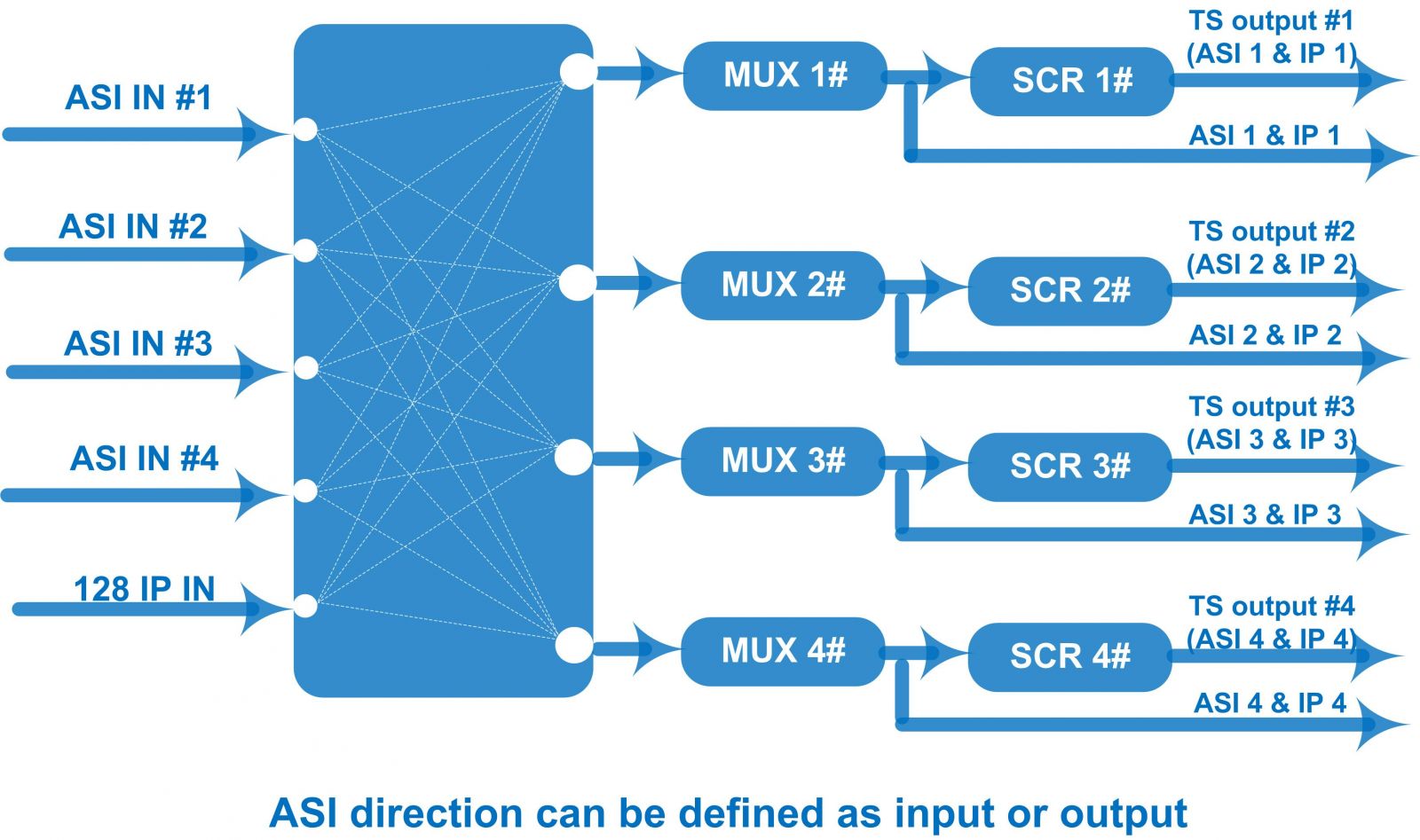

FU4625 Multiplexer Scrambler is Fmuser’s latest multiplexing scrambling device. It has 4 bi-direction ASI and 3 bi-direction IP ports supporting up to 4 ASI and 128 IP input, after scrambling, it outputs 4 MPTS and max 4 ASI. It has the functions of supporting auto-generation of PSI/SI information, PID re-mapping, service filtering and PCR adjusting. In conclusion, its high integration and cost effective design make this device widely used in the CATV Broadcasting system. Key Features:  ASI in/out: max 4 ASI input/output thru 4 bi-direction ASI ports (ASI direction can be; defined as input or output manually);  IP in/out: 128 IP input, 4 IP (MPTS) output thru 3 bi-direction Data ports;  Support scramble with up to 4 simulcrypt CAs;  Up to 512 PIDs remapping per output channel;  Support accurate PCR adjusting, PID filtering, re-mapping and PSI/SI rebuilding and editing;  Huge buffer memory for saving the overflowing code stream;  Alarming function;  Web-based NMS management; ASI in/out: max 4 ASI input/output thru 4 bi-direction ASI ports (ASI direction can be defined as input or output manually); IP in/out: 128 IP input, 4 IP (MPTS) output thru 3 bi-direction Data ports
