FU4653D Multi-input Modulator

Overview

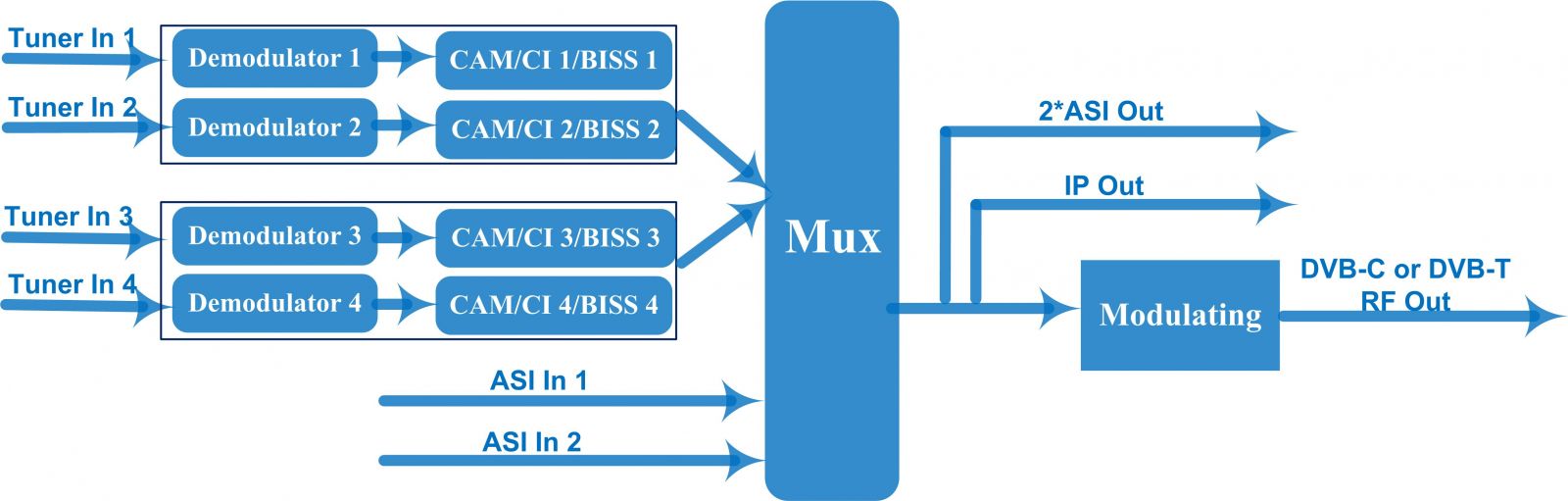

FU4653D multi-input modulator is FMUSER’s all-in-one device which integrates demodulation, trans-mux and modulation in one case to convert signals into RF output. It is a 1-U case which supports 4 tuner inputs to receive signal from satellite, cable or terrestrial. To meet customers’ various requirements, FU4653D is also equipped with 2 ASI input, and output with 2 groups separate ASI ports and 2 MPTS UDP IP port. The output modulated signals are to be received by TVs, STB and etc. The USB port is designed to record encoded video (TS) and save it in ts files in the USB Keys or Hard Disks, and then the ts files can be playback through the USB port. Key Features:  4 Tuner (DVB-T/(T)/S/S2/S2X optional) + 2 ASI input;  2 DVB-T RF out+2 MPTS out over UDP+2 ASI out as mirror of 2 RF (for DVB-T RF out);  4 DVB-C RF out +4 MPTS out over UDP+2 ASI out as mirror of 2 RF (for DVB-C RF out);  4 DVB-C RF out +8 SPTS out over UDP+2 ASI out as mirror of 2 RF (for DVB-C RF out);  4 CAM decrypt multiple programs from 4 Tuner input(Optional);  Support BISS descrambling;  Record encoded TS and playback TS files (*.ts) through USB port
