FU4823B Multiplexer Scrambler
Support 64 IP input through DATA 1 and DATA 2 over UDP protocol. 8 ASI input+64 IP input DATA 1 and DATA 2 over UDP protocol. Support 8 ASI input for re-multiplexing.
Key Specifications
- Input 8 ASI input+64 IP input DATA 1 and DATA 2 over UDP protocol
- PID Output range
- Re-multiplex PID re-mapping
- Scrambling Simul-crypt CA
- PID transparent Any PID transparent and mapping achievable
- Power supply AC 110V±10%, 50/60Hz Or AC 220V±10%, 50/60Hz
- Standard ETR289, ETSI 101 197, ETSI 103 197
- Connection Local/Remote connect
Overview

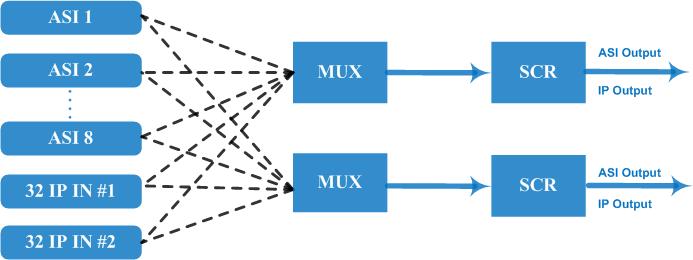

FU4823B multiplexer scrambler is the latest multiplexing and scrambling device for digital TV broadcasting head-end system. It can receive up to 8 ASI and 512 IP input and output TS after multiplexing and scrambling. There are 2 groups of separate ASI output port and GE ports for IP outputs. The multiplexer scrambler has all the functions of normal TS multiplexer, including programs multiplexing, PID re-mapping etc. Also the multiplexer can insert EPG (Electronic Program Guide), and data casting information into each output stream. In conclusion, its high integration and cost effective design make this device widely used in the CATV Broadcasting system. Key Features: Fully complying with ISO13818 and EN300 468 standard; Support 8 ASI input for re-multiplexing; Support 64 IP input through DATA 1 and DATA 2 over UDP protocol; Support accurate PCR adjusting/ PID re-mapping/PSI/SI rebuilding and editing; Support 6 different simulcrypt (CAS ETR289, ETSI 101 197, ETSI 103 197); Two groups (each group has 2 channels)separate ASI outputs; IP (2 MPTS) over UDP, RTP/RTSP output as mirror of ASI output (RJ45), GE Port,; DATA 1 and DATA 2
Technical Specifications
RF Modulation
| Standard | ETR289, ETSI 101 197, ETSI 103 197 |
IP Streaming
IP Input
| Input | 8 ASI input+64 IP input DATA 1 and DATA 2 over UDP protocol |
Stream Settings
| PID | Output range |
ASI / Transport Stream
ASI Interface
| Output port | ASI |
Multiplexing
| Re-multiplex | PID re-mapping |
| PID transparent | Any PID transparent and mapping achievable |
| Amount of output PID | 512 |
Scrambling & Security
| Scrambling | Simul-crypt CA |
System & Physical
Power
| Power supply | AC 110V±10%, 50/60Hz Or AC 220V±10%, 50/60Hz |
Physical
| Weight | 3.5kg |
Environment
| Temperature | 0~45℃(operation), -20~80℃(storage) |
Management
| Connection | Local/Remote connect |
| NMS port | Ethernet port |
| General | Dimensions |
