FU4825A IP to HDMI Decoder
MPEG-2, MPEG-4 AVC/H.264, HEVC/H.265, AVS and AVS+ video decoding. MPEG-2, MPEG-4 AVC/H.264, HEVC/H.265, AVS, AVS+. 8 IP (MPTS/SPTS) input over UDP&RTP through data port.
Key Specifications
- Input 8 IP (100M/1000Mbps Ethernet, RJ45, UDP&RTP protocol, Unicast/multicast)
- Interface 4* HDMI
- Video Resolution 480i, 480p, 576i, 576p,1280×720_50p, 1280×720_60p, 1920×1080_50i, 1920×1080_50p 1920×1080_60i, 1920×1080_60p
- Audio Channel One stereo audio embedded in each port
- Max bitrate ≤900Mbps
- Decode Video Format
- Power Supply 220VAC±10%，50Hz
- Language Chinese/English
Overview

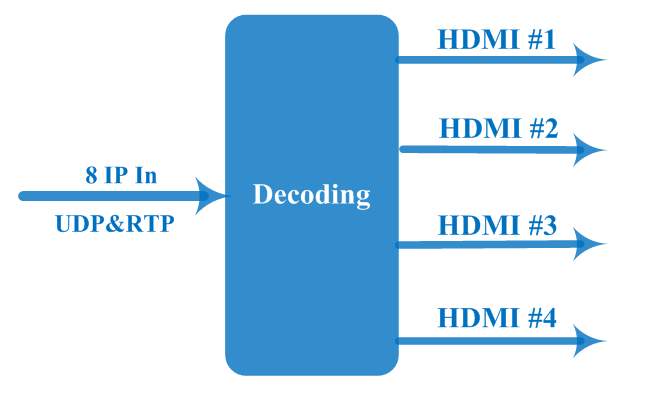

decoder designed by FMUSER. It supports 8 IP inputs, after MPEG-2/H.264/H.265 video decoding, it outputs 4 channels of HDMI videos with one stereo audio embedded in each port. It supports up to 1080i and 1080p out and supports manually upscale and downscale resolution. So it provides various solutions for operators to distribute programs. Key Features: 8 IP (MPTS/SPTS) input over UDP&RTP through data port; 4 HDMI decoding out with 1 channel stereo audio embedded in each port; Manually upscale/downscale resolution; Control via web management Specifications: MPEG-2, MPEG-4 AVC/H.264, HEVC/H.265, AVS and AVS+ video decoding; MPEG-2, MPEG-4 AVC/H.264, HEVC/H.265, AVS, AVS+; 8 IP (100M/1000Mbps Ethernet, RJ45, UDP&RTP protocol, Unicast/multicast); One stereo audio embedded in each port
Technical Specifications
RF Modulation
| Interface | 4* HDMI |
Encoding & Decoding
Video
| Video Resolution | 480i, 480p, 576i, 576p,1280×720_50p, 1280×720_60p, 1920×1080_50i, 1920×1080_50p 1920×1080_60i, 1920×1080_60p |
Audio
| Audio Channel | One stereo audio embedded in each port |
Codec Settings
| Decode | Video Format |
IP Streaming
IP Input
| Input | 8 IP (100M/1000Mbps Ethernet, RJ45, UDP&RTP protocol, Unicast/multicast) |
IP Output
| Max bitrate | ≤900Mbps |
System & Physical
Power
| Power Supply | 220VAC±10%，50Hz |
| Consumption | <25W |
Physical
| Dimension | 328 mm×482 mm×45mm (LxWxH) |
Environment
| Environment | 0~45℃(Work)；-20~80℃(Storage) |
Management
| Language | Chinese/English |
Since 2009
Manufacturing Experience
200+
Countries & Regions Served
2-Year
Warranty
Factory
Direct Pricing
Ideal Applications
Interested in FU4825A IP to HDMI Decoder?
Get factory direct pricing, lead time, and technical support from our engineering team.
