FU21 (V2) IP Gateway

Overview

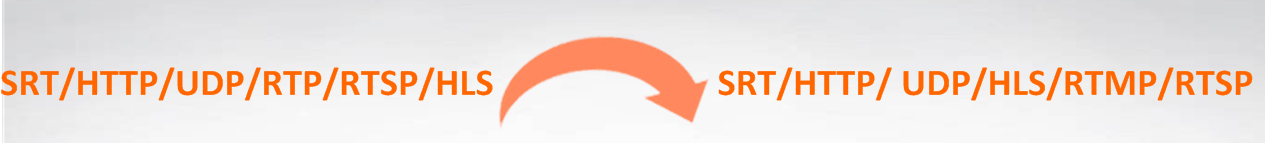

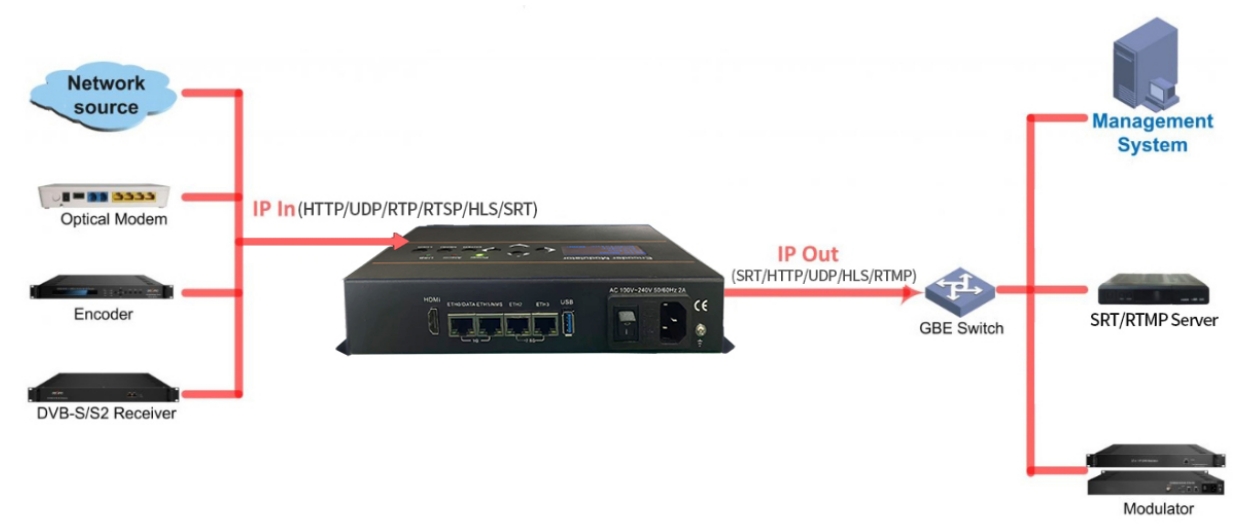

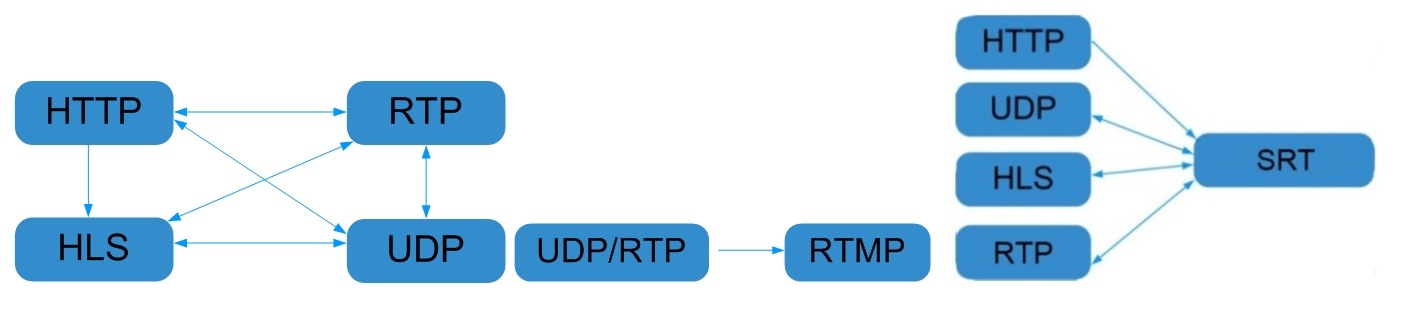

Fmuser FU21-V2 IP Gateway is a device which is used for the protocol conversion scenarios and streaming media distribution scenarios. It supports LCD display and has press buttons, it can convert the broadcast network IP stream over SRT, HTTP,HTTPS, UDP, RTP, RTSP and HLS protocol. The system can achieve the integration by receiving a variety of commercial streaming media services. Also, the system can provide streaming media services directly. 4 Data ports for input/output, it default ETH0 is output,ETH1 is NMS, ETH0 and ETH1 both are 1000Mbps, ETH2/ETH3 is 2.5G, and as input port Key Features: 4 Data ports for input/output, it default ETH0 is output,ETH1 is NMS, ETH0 and ETH1 both; are 1000Mbps, ETH2/ETH3 is 2.5G, and as input port; IP in over SRT, HTTP, HTTPS,UDP (SPTS), RTP (SPTS), RTSP and HLS; IP out over SRT, HTTP, UDP (SPTS) HLS RTP/RTSP and RTMP (Unicast); Support IP anti-jitter function; HDMI and USB port just be testing port; Support up to 40 HD programs; Web-based NMS management; IP Protocol Conversion Specifications: IP out through ETH0 (1000M) over SRT(Unicast), HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP(Program source should be H.264 and AAC encoding)
