FU4322B MPEG2/H.264 HD Encoder
MPEG-2 HD/SD and MPEG-4 AVC/H.264 HD/SD video encoding. 2×ASI output ports, BNC interface. Support ASI output and IP over UDP and RTP output.
Key Specifications
- Stream output 2×ASI output ports, BNC interface
- Encoding MPEG-2 HD/SD,MPEG-4 AVC/H.264 HD/SD
- Stream Input 2 ASI Input for remux
- Bitrate Range 2.5 – 19.00 Mbps
- GOP Structure IP, IBBP, IBBBP
- Bit-rate 32Kbps~384Kbps
- Rate Control CBR/VBR
- Power AC110V±10%, 50/60Hz; AC 220V±10%,50/60Hz
Overview

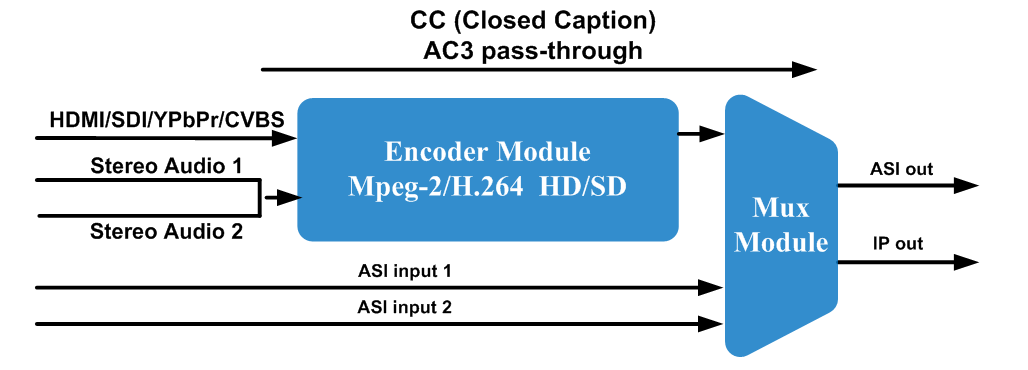

FU4322B Mpeg-2/ H.264 HD Encoder is the new broadcasting audio & video encoding device with powerful functionality. It is equipped with multiple video input interfaces (HDMI, SDI, YPbPr and CVBS) and audio input interfaces (AES, BNC and XLR) to make it possible to compatible with different signal sources. Multiple audio and video encoding formats are available to meet customers’ various requirements. It supports 2 stereo to mix with the video to form a stream output. The encoded program will finally output in TS through ASI/IP port. Specifications: MPEG-2 HD/SD and MPEG-4 AVC/H.264 HD/SD video encoding; Support 2 stereo audio encoding; Support 1080I/P,720P, 480I, 576I video resolution and downscale transform; Support video buffer, free to switch video sources (all video interface available); 2×ASI output ports, BNC interface; Support DD AC3 audio passthrough (for SDI and HDMI in); Support ASI output and IP over UDP and RTP output; MPEG-4 AVC/H.264 HD/SD
Technical Specifications
Encoding & Decoding
Video
| 1920×1080i @50 | 1920×1080i @50 |
| 720×576i@50 | 720×576i @50 |
| 720×480i@60 | 720×480i @60 |
| Bitrate Range | 2.5 – 19.00 Mbps |
| Rate Control | CBR/VBR |
| GOP Structure | IP, IBBP, IBBBP |
| Chroma | 4:2:0 |
Audio
| Sampling rate | 48KHz |
| Bit-rate | 32Kbps~384Kbps |
Codec Settings
| 1920×1080p@60/59.94 | 1920×1080p@60, |
| 1920×1080i@60/59.94 | 1920×1080i @60 |
| 1280×720p@60/59.94 | 1280×720p@60 |
| Encoding | MPEG-2 HD/SD,MPEG-4 AVC/H.264 HD/SD |
ASI / Transport Stream
| Stream Input | 2 ASI Input for remux |
| Stream output | 2×ASI output ports, BNC interface |
System & Physical
Power
| Power | AC110V±10%, 50/60Hz; AC 220V±10%,50/60Hz |
| Consumption | 16W |
Environment
| Temperature | 0~45℃(Operation), -20~80℃(Storage) |
Management
| System function | LCD/keyboard and web management |
| General | Dimensions |
