FU4335H(FU4335HV) Multi-channel Encoder
4/8/12×HD-SDI or HDMI(1.4) input for option, HDCP 1.4. HEVC/ H.265, MPEG 4 AVC/H.264. 0.5Mbps~20Mbps (HEVC/ H.265).
Key Specifications
- Bitrate(per channel) 0.5Mbps~20Mbps (HEVC/ H.265)4 Mbps~20Mbps (MPEG 4 AVC/H.264)

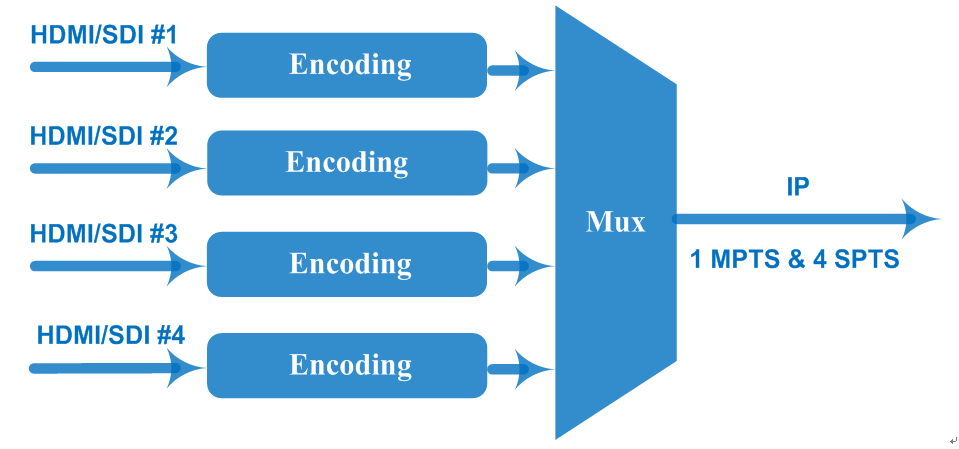

- Stream output 1 MPTS and 4 SPTS output over UDP/RTP/RTSP per module, Base-T Ethernet interface (1000M/100M self-adaption) (unicast/ multicast)IP null packet filterd
- Input 4/8/12×HD-SDI or HDMI(1.4) input for option, HDCP 1.4
- HEVC/H.265 MPEG-4 AVC/H.264
- Bit-rate(each channel) 18Kbps~384Kbps
- Video Encoding Encoding Format
- Audio Gain 0~255
- GOP Structure IBBP, IPPP
Overview
Specifications: “CH” means encoding channel, different encoding format can encode different channel with different resolution.; HEVC/ H.265, MPEG 4 AVC/H.264; 1 MPTS and 4 SPTS output over UDP/RTP/RTSP per module, Base-T Ethernet interface (1000M/100M self-adaption) (unicast/ multicast); Same as input resolution; 4/8/12×HD-SDI or HDMI(1.4) input for option, HDCP 1.4; 0.5Mbps~20Mbps (HEVC/ H.265); 4 Mbps~20Mbps (MPEG 4 AVC/H.264); Chinese-English control interface
Technical Specifications
Encoding & Decoding
Video
| 4*1080I-50 | 4*1080P-50,4*1080P-25 |
| 4*1080I-50 | 4*1080P-50,4*1080P-25 |
| Chroma | 4:2:0 |
| Bitrate(per channel) | 0.5Mbps~20Mbps (HEVC/ H.265)4 Mbps~20Mbps (MPEG 4 AVC/H.264) |
| Rate Control | CBR/VBR |
| GOP Structure | IBBP, IPPP |
Audio
| Bit-rate(each channel) | 18Kbps~384Kbps |
| Audio Gain | 0~255 |
Input Interface
| Input | 4/8/12×HD-SDI or HDMI(1.4) input for option, HDCP 1.4 |
Processing Features
| Advanced Pretreatment | De-interlacing, Noise Reduction, Sharpening |
Codec Settings
| Video Encoding | Encoding Format |
| HEVC/H.265 | MPEG-4 AVC/H.264 |
| 4*1080P-60/59.94 | 4*1080P-60,4*1080P-59.94 |
| 4*1080I-60/59.94 | 4*1080P-60,4*1080P-30 |
| 4*720P-60/59.94 | 4*720P-60,4*720P-59.94 |
| Input | HEVC/H.265 |
| 4*1080P-60/59.94 | 4*1080P-60,4*1080P-59.94 |
| 4*1080I-60/59.94 | 4*1080P-60,4*1080P-30 |
| 4*720P-60/59.94 | 4*720P-60,4*720P-59.94 |
IP Streaming
| Stream output | 1 MPTS and 4 SPTS output over UDP/RTP/RTSP per module, Base-T Ethernet interface (1000M/100M self-adaption) (unicast/ multicast)IP null packet filterd |
