FU4335V H.265/H.264 HD Encoder
Encoding with highest compression format.
Key Specifications

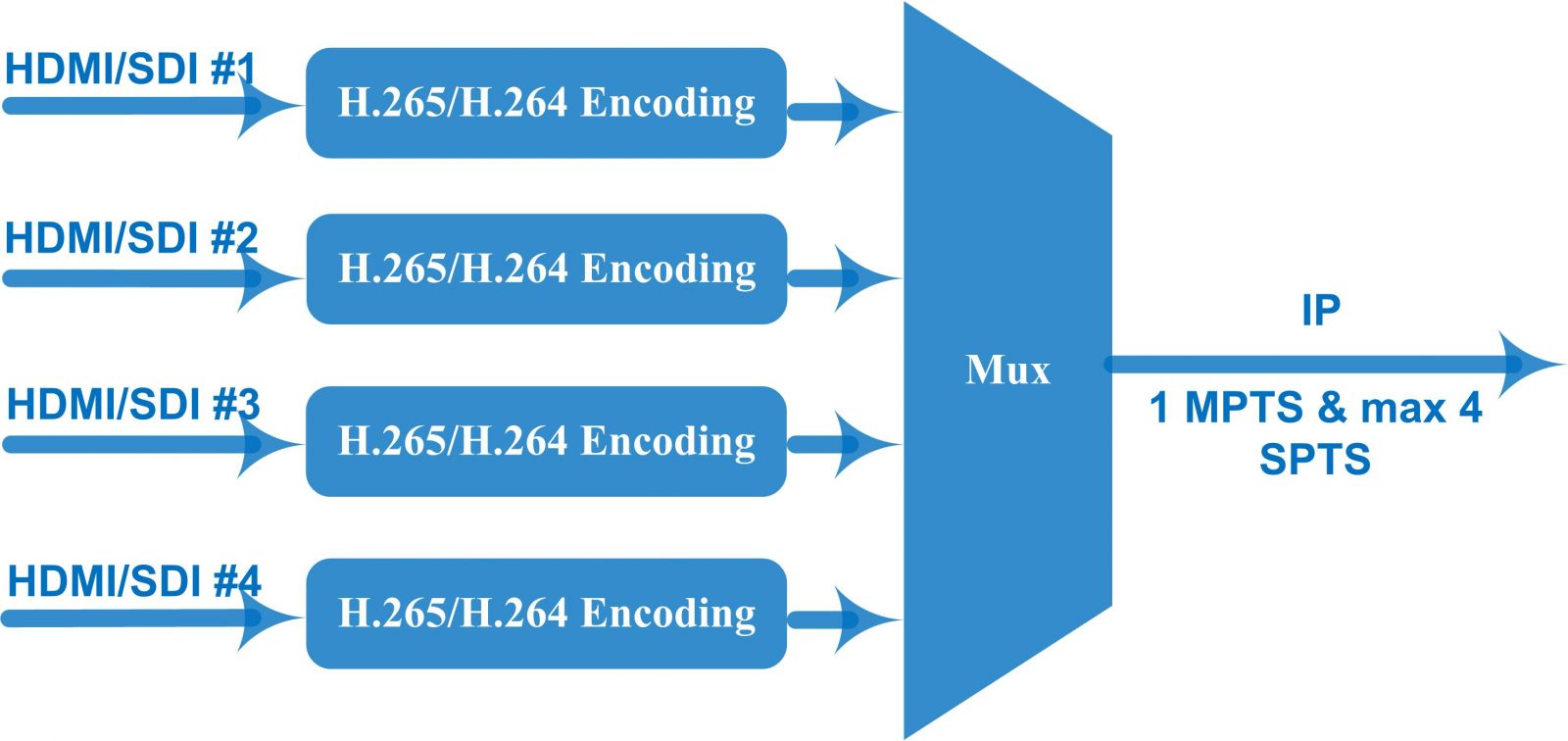

- Stream output IP (1 MPTS and maximum 4 SPTS) output over UDP/RTP/RTSP per module, 1000M/100M Base-T Ethernet interface (unicast/ multicast); IPv4, IPv6 outputIP null packet filter
- Input 4/8/12×HD-SDI or HDMI (1.4) inputs for option, HDCP 1.4
- HEVC/H.265 MPEG-4 AVC/H.264
- Bitrate 0.5Mbps~20Mbps (each channel)
- Bit-rate (each channel) 18Kbps~384Kbps
- VideoEncoding Encoding Format
- Audio Gain 0~255
- GOP Structure IBBP, IPPP
Overview
Fmuser HEVC/H.265 encoder adopts Fujitsu chip which offers stable bitrate with lower fluctuation compared with other encoding chips, so it provides smooth TS for modulators. It is widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc. There are 3 major picture types used in the different video algorithms, they are I, P and B. Specifications: Encoding with highest compression format
Technical Specifications
Encoding & Decoding
Video
| 4*1080I-50 | 4*1080P-50 |
| 4*1080I-60 | 4*1080P-60 |
| Chroma | 4:2:0 |
| Bitrate | 0.5Mbps~20Mbps (each channel) |
| Rate Control | CBR/VBR |
| GOP Structure | IBBP, IPPP |
| Resolution | 1080p, 1080i, 720p |
Audio
| Bit-rate (each channel) | 18Kbps~384Kbps |
| Audio Gain | 0~255 |
Input Interface
| Input | 4/8/12×HD-SDI or HDMI (1.4) inputs for option, HDCP 1.4 |
| Input | 4/8/12 HDMI |
Processing Features
| Advanced Pretreatment | De-interlacing, Noise Reduction, Sharpening |
| OSD (logo/QR code) Insertion Function | support |
Codec Settings
| VideoEncoding | Encoding Format |
| HEVC/H.265 | MPEG-4 AVC/H.264 |
IP Streaming
| Stream output | IP (1 MPTS and maximum 4 SPTS) output over UDP/RTP/RTSP per module, 1000M/100M Base-T Ethernet interface (unicast/ multicast); IPv4, IPv6 outputIP null packet filter |
System & Physical
Power
| Power | AC 100V-220V±10%, 50/60Hz |
Physical
| Approx weight | 5kg |
Environment
| Temperature | 0~45℃(work), -20~80℃（Storage） |
Management
| System | Web based management |
Since 2009
Manufacturing Experience
200+
Countries & Regions Served
2-Year
Warranty
Factory
Direct Pricing
Ideal Applications
Broadcast contribution and distribution
Hotel/hospital IPTV source encoding
Satellite-to-IP conversion for cable operators
