FU4335V-N Multi-Channel Network Encoder(12HDMI, H.265/MPEG4 HD)
2. Encoding with highest compression format—B frame (IBBP).
Key Specifications

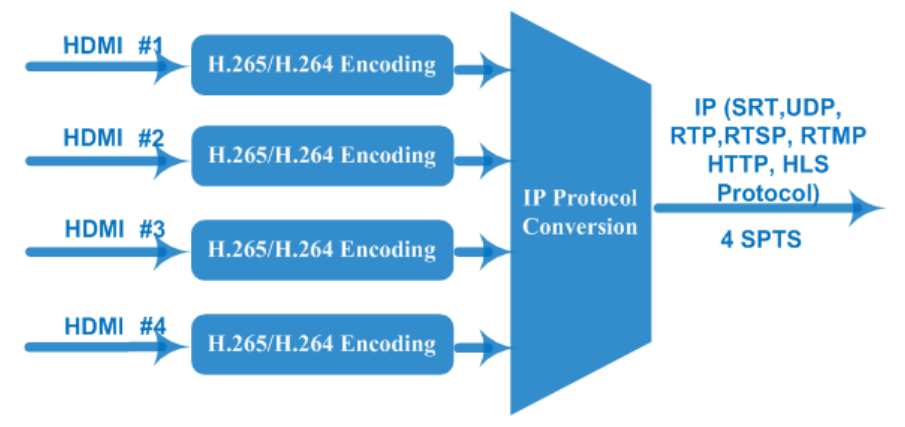

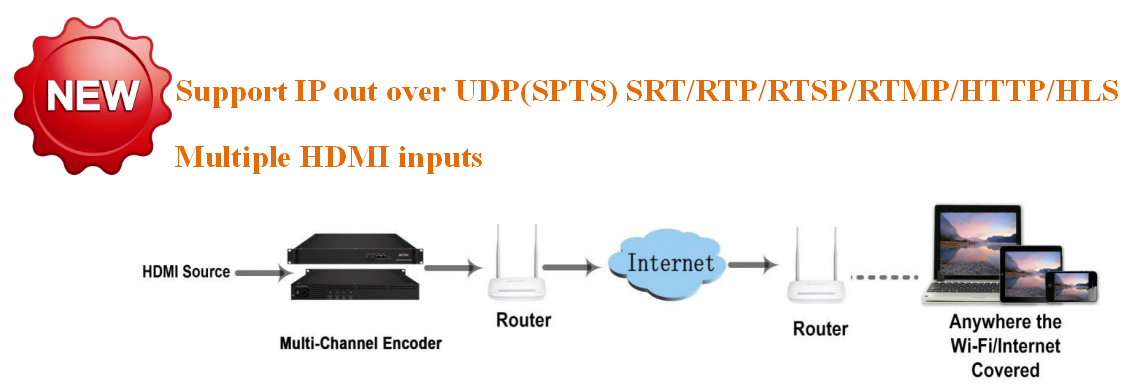

- Stream output IP (4 SPTS) output over SRT, RTP, RTSP, RTMP, HTTP, HLS per module, 1000M/100M Base-T Ethernet interface (unicast/multicast); IPv4, IPv6 outputIP null packet filter
- HEVC/H.265 MPEG-4 AVC/H.264
- Input 4/8/12 HDMI inputs for option, HDCP 1.4
- Bitrate 0.5Mbps~20Mbps(each channel)
- Bit-rate (each channel) 18Kbps~384Kbps
- VideoEncoding Encoding Format
- Audio Gain 0~255
- GOP Structure IBBP, IPPP
Overview
Fmuser HEVC/H.265 encoder adopts Fujitsu chip which offers stable bitrate with lower fluctuation compared with other encoding chips, so it provides smooth TS for modulators. Itis widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc. Thereare 3 major picture types used in the different video algorithms, they are I, P and B. Specifications: 2. Encoding with highest compression format—B frame (IBBP)
Technical Specifications
Encoding & Decoding
Video
| 4*1080P-60 | 4*1080P-60, |
| 4*1080I-50 | 4*1080P-50 |
| 4*1080I-60 | 4*1080P-60 |
| Chroma | 4:2:0 |
| Bitrate | 0.5Mbps~20Mbps(each channel) |
| Rate Control | CBR/VBR |
| GOP Structure | IBBP, IPPP |
| Frame Type | Byte of data/KB |
Audio
| Bit-rate (each channel) | 18Kbps~384Kbps |
| Audio Gain | 0~255 |
Input Interface
| Input | 4/8/12 HDMI inputs for option, HDCP 1.4 |
Processing Features
| Advanced Pretreatment | De-interlacing, Noise Reduction, Sharpening |
Codec Settings
| VideoEncoding | Encoding Format |
| HEVC/H.265 | MPEG-4 AVC/H.264 |
IP Streaming
| Stream output | IP (4 SPTS) output over SRT, RTP, RTSP, RTMP, HTTP, HLS per module, 1000M/100M Base-T Ethernet interface (unicast/multicast); IPv4, IPv6 outputIP null packet filter |
System & Physical
Power
| Power | AC 100V-220V±10%, 50/60Hz |
Physical
| Approx weight | 5kg |
Environment
| Temperature | 0~45℃(work), -20~80℃（Storage） |
Management
| System | Web based management |
