FU4337SA Multi-Channel Encoder(48CVBS, MPEG4 SD)

Overview

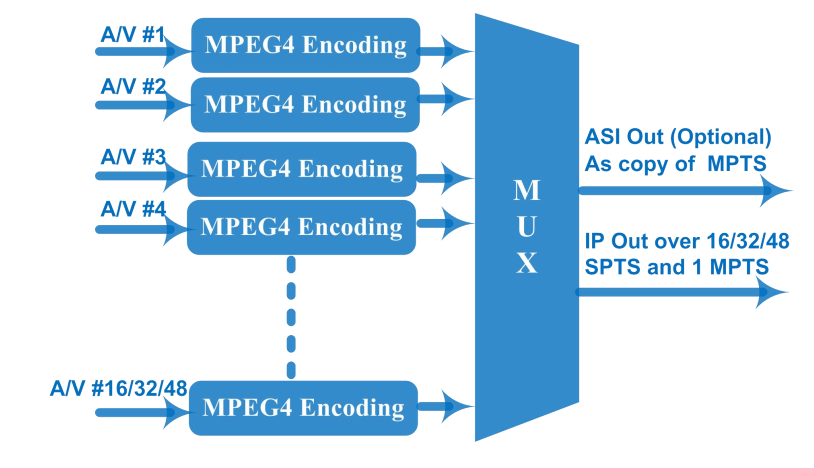

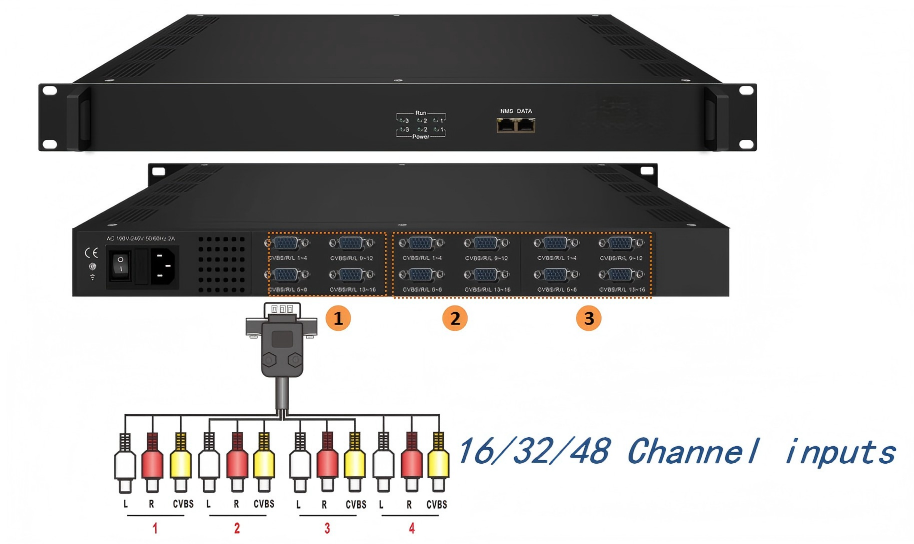

FMUSER FU4337SA multi-channel encoder is our newest professional SD audio & video encoding and multiplexing device with powerful functionality. It adopts the slot structure with one device supporting maximum 3 FU4337SA modules. Each module can support 16 channels and work standalone. It is equipped with 16/32/48 CVBS channels input. It can multiplex the 16/32/48 encoded TS to generate a MPTS and 16/32/48 SPTS output through GE output port and one MPTS output through 1 ASI output ports. In conclusion, its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc. 16/32/48 Channel inputs Key Features: 16/32/48×CVBS video inputs with MPEG4 AVC/H.264 Video encoding; Supports PAL (PAL-B,D,G,H,I) and NTSC (NTSC-M,J) SD video formats; Support MPEG1 Layer II Audio encoding and support audio gain adjustment; Support 1 MPTS out through 1 ASI output ports (optional); Support IP output over UDP and RTP; Support Null PKT Filter(only for MPTS, SPTS output without Null PKT); Support Logo, Caption, QR code insertion
