FU4339S Multi-channel Encoder
HEVC/H.265 (for V2 only), MPEG4 AVC/H.264 video encoding format. IP output over UDP and RTP/RTSP protocol; 1 ASI out as mirror of MPTS (Optional). IP output through DATA (GE) over UDP and RTP/RTSP protocol.
Key Specifications
- Stream output IP output through DATA (GE) over UDP and RTP/RTSP protocol(8 HDMI inputs with 8 SPTS and 1MPTS output for each encoder board)1 ASI out as mirror of MPTS (Optional as order)
- Encoding HEVC/H.265 (for V2 only)MPEG-4 AVC/H.264
- FU4339S-8 (V2) HEVC/H.265,MPEG-4 AVC/H.264
- FU4339S-16 (V2) HEVC/H.265,MPEG-4 AVC/H.264
- FU4339S-24 (V2) HEVC/H.265,MPEG-4 AVC/H.264
- Input 8/16/24 HDMI inputs
- Output 1920×1080_30P, 1920×1080_25P,1280×720_30P, 1280×720_25P,720 x 576_25P, 720 x 480_30P
- Audio Gain 0-255 Adjustable
Overview

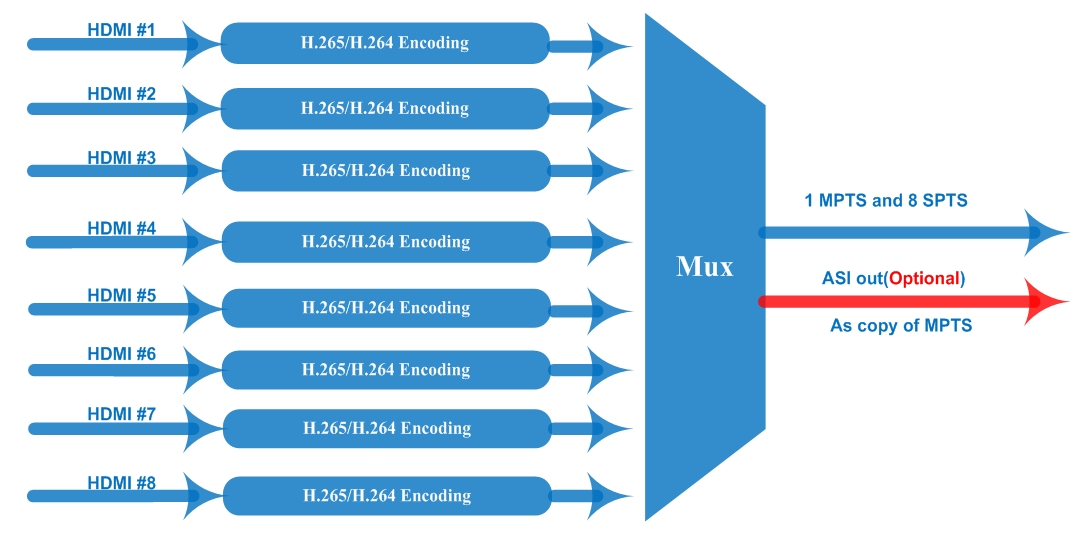

Key Features: 8 HDMI inputs with 8 SPTS and 1 MPTS output (each encoder module), max 24 HDMI inputs; HEVC/H.265 (for V2 only), MPEG4 AVC/H.264 video encoding format; Support audio gain adjustment; IP output over UDP and RTP/RTSP protocol; 1 ASI out as mirror of MPTS (Optional); Support QR code, LOGO, caption insertion (Language Supported: 中文, English, العربية, ไทย, हिन्दी, руская, اردو for more languages please consult us…); Support “Null PKT Filter” function; Control via web management, and easy updates via web Specifications: FU4339S Multi-Channel encoder is a professional HD/SD audio & video encoding device. It has 8/16/24 HDMI inputs for option. Every 8 HDMI ports share one encoder module with each module supporting 1MPTS and 8SPTS output. Its high integration and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.; IP output through DATA (GE) over UDP and RTP/RTSP protocol; (8 HDMI inputs with 8 SPTS and 1MPTS output for each encoder board); 8/16/24 HDMI inputs; HEVC/H.265 (for V2 only); 8 HDMI Inputs with 8 SPTS and 1 MPTS out (1 encoder board+1NMS port+1 DATA Port)
Technical Specifications
Encoding & Decoding
Video
| Output | 1920×1080_30P, 1920×1080_25P,1280×720_30P, 1280×720_25P,720 x 576_25P, 720 x 480_30P |
| Bit-rate | 1~13Mbps each channel |
| Rate Control | CBR/VBR |
| GOP Structure | IP…P (P Frame adjustment, without B Frame ) |
| Resolution | 24-bit |
Audio
| Audio Gain | 0-255 Adjustable |
| Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps |
Input Interface
| Input | 8/16/24 HDMI inputs |
Codec Settings
| Encoding | HEVC/H.265 (for V2 only)MPEG-4 AVC/H.264 |
IP Streaming
| Stream output | IP output through DATA (GE) over UDP and RTP/RTSP protocol(8 HDMI inputs with 8 SPTS and 1MPTS output for each encoder board)1 ASI out as mirror of MPTS (Optional as order) |
System & Physical
Power
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
Environment
| Environment | 0~45℃(work)；-20~80℃（Storage） |
Management
| System function | Network management(WEB) |
| Model NO. | Video Format |
| FU4339S-8 | MPEG-4 AVC/H.264 |
| FU4339S-8 (V2) | HEVC/H.265,MPEG-4 AVC/H.264 |
| FU4339S-16 | MPEG-4 AVC/H.264 |
| FU4339S-16 (V2) | HEVC/H.265,MPEG-4 AVC/H.264 |
| FU4339S-24 | MPEG-4 AVC/H.264 |
| FU4339S-24 (V2) | HEVC/H.265,MPEG-4 AVC/H.264 |
