FU4347S/FU4355S V2 Multi-Channel Encoder
HEVC/H.265, MPEG4 AVC/H.264 video encoding format. IP output over UDP and RTP/RTSP protocol. IP output through DATA (GE) over UDP and RTP/RTSP protocol.
Key Specifications
- Stream output IP output through DATA (GE) over UDP and RTP/RTSP protocol(8 HDMI inputs with 8 SPTS and 1MPTS output for each encoder module)
- Encoding HEVC/H.265, MPEG-4 AVC/H.264
- Input 16 HDMI inputs (FU4347S); 24 HDMI inputs (FU4355S)
- Output 1920×1080_30P, 1920×1080_25P,1280×720_30P, 1280×720_25P,720 x 576_25P, 720 x 480_30P
- FU4347S V2 16 HDMI inputs
- FU4355S V2 24 HDMI inputs
- Audio Gain 0-255 Adjustable
- Bit-rate 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
Overview

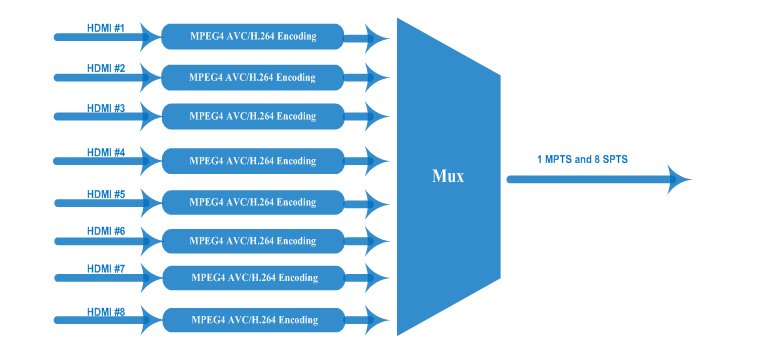

FU4347S/FU4355S (V2) Multi-Channel encoder is a professional HD/SD audio & video encoding device. It has 16/24 HDMI inputs with very 8 HDMI ports share one encoder module with each module supporting 1MPTS and 8SPTS output. Its high integration and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc. Specifications: HEVC/H.265, MPEG4 AVC/H.264 video encoding format; 16 or 24 HDMI inputs with SPTS and MPTS output (2 or 3 Encoder Modules share the same one NMS port and DATA port); IP output over UDP and RTP/RTSP protocol; HEVC/H.265, MPEG-4 AVC/H.264; IP output through DATA (GE) over UDP and RTP/RTSP protocol; (8 HDMI inputs with 8 SPTS and 1MPTS output for each encoder module); audio gain adjustment; 16 HDMI inputs (FU4347S); 24 HDMI inputs (FU4355S)
Technical Specifications
Encoding & Decoding
Video
| Output | 1920×1080_30P, 1920×1080_25P,1280×720_30P, 1280×720_25P,720 x 576_25P, 720 x 480_30P |
| Bit-rate | 1~13Mbps each channel |
| Rate Control | CBR/VBR |
| GOP Structure | IP…P (P Frame adjustment, without B Frame ) |
| Resolution | 24-bit |
Audio
| Audio Gain | 0-255 Adjustable |
| Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps |
Input Interface
| Input | 16 HDMI inputs (FU4347S); 24 HDMI inputs (FU4355S) |
Codec Settings
| Encoding | HEVC/H.265, MPEG-4 AVC/H.264 |
IP Streaming
| Stream output | IP output through DATA (GE) over UDP and RTP/RTSP protocol(8 HDMI inputs with 8 SPTS and 1MPTS output for each encoder module) |
System & Physical
Power
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
Environment
| Environment | 0~45℃(work)；-20~80℃（Storage） |
Management
| System function | Network management (WEB) |
| P/N | Config |
| FU4347S V2 | 16 HDMI inputs |
| FU4355S V2 | 24 HDMI inputs |
