FU4349R FM Receiver

Overview

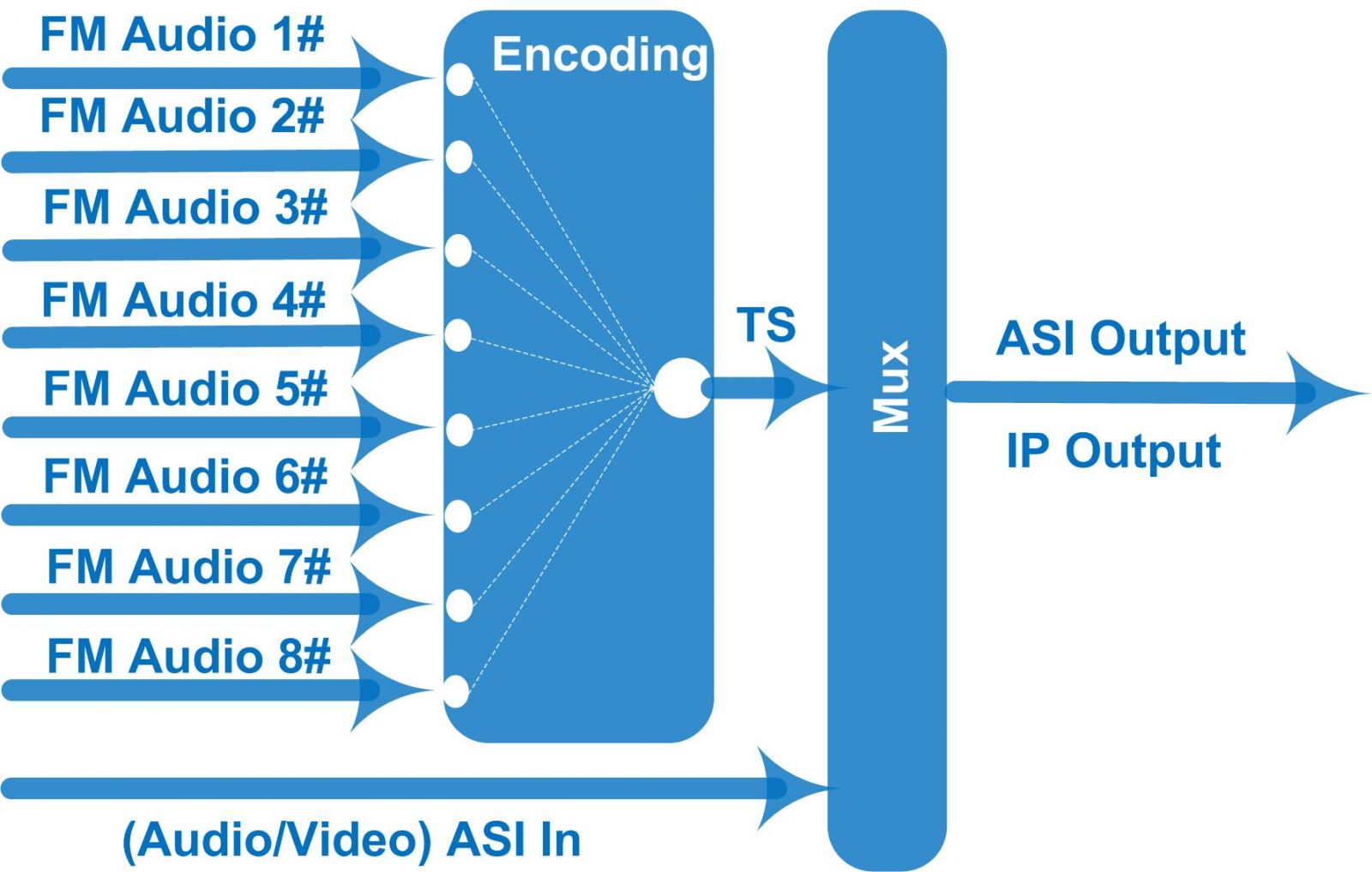

FMUSER FU4349R FM receiver is designed to receive FM audios and compress the input FM audios into digital TS and output through ASI and IP ports. Digital TS are distributed to HFC or terrestrial transmission system, which makes it possible to license radios with your STB or Each antenna receives two audios and this unit can maximally process 8 audios. In addition, it is equipped with one ASI input port as well for Audio/Video re-mux. It is featured to operators with its high capacity and integration. Key Features:  4 antennas receiving 8 FM audios;  1 ASI input for Audio/Video re-mux;  MPEG1 Layer 2 audio encoding;  Support volume and audio gain control;  Support 2 ASI mirrored output;  Support 8 SPTS & 1 MPTS IP output over UDP/RTP;  LCD / keyboard and web-based NMS operation;  Update device through NMS port; 1 ASI input for Audio/Video re-mux; MPEG1 Layer 2 audio encoding; Support volume and audio gain control; Support 2 ASI mirrored output Specifications: 1*ASI input, BNC interface; 2*ASI mirrored output, BNC interface; *​  4 antennas receiving 8 FM audio; MPEG1 Layer 2; 32/48/56/64/80/96/112/128/160/192/224/256/320/384Kb/s (each channel)
