FU4353A 4-in-1 H.265/H.264 HD Encoder (4k)

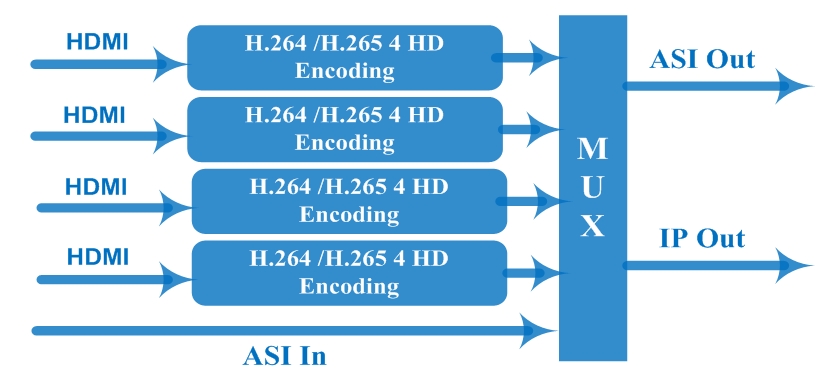

FU4353A is FMUSER’s new H.264/H.265 4K encoder equipped with 2 or 4 HDMI inputs and 1 ASI input for remux. The stream will output via ASI ports and Ethernet port over UDP, RTP/RTSP.. 2 or 4 HDMI inputs with H.265/h.264 video. IP…
Key Specifications
- Encoding HEVC/H.265, MPEG 4 AVC/H.264
- Bit-rate 2Mbps~20Mbps (under HEVC/H.265)4Mbps~20Mbps (under MPEG 4 AVC/H.264)
- Input 2/4 HDMI in. 2/4 HDMI loop out1 ASI in for re-mux
- Stream output 2 ASI mirrorout (BNC type)1 MPTS & 4 SPTS out over UDP, RTP/RTSP (100/1000M self-adapt)
- Chroma Input:4:4:4/4:2:2; output:4:2:0
- Audio Encoding
- Multiplexing Maximum PIDRemapping
- GOP Structure IBBP, IPPP
Overview
It adopts an inner drawer-type structural design which greatly facilitates the change of encoding modules as needed. Key Features: 2 or 4 HDMI inputs with H.265/h.264 video; IP output over UDP, RTP/RTSP from the 100/1000M self-adaptive data port; Support AC3 Pass-through; Support OSD (logo/QR Code) insertion, logo in PPT form is available; Support CC (Closed Caption) /Teletext (CC is not available for H.265 at present); LCN support (Logical Channel Number); LCD Screen for easy management Specifications: FU4353A is FMUSER’s new H.264/H.265 4K encoder equipped with 2 or 4 HDMI inputs and 1 ASI input for remux. The stream will output via ASI ports and Ethernet port over UDP, RTP/RTSP.; HEVC/H.265, MPEG 4 AVC/H.264; 256 input per channel; 2Mbps~20Mbps (under HEVC/H.265); 4Mbps~20Mbps (under MPEG 4 AVC/H.264); 3840*2160_60/50P (under H.265 only),; MPEG-1 Layer 2, LC/HE***, AC3 Pass through; 48Kbps~384Kbps (MPEG-1 Layer 2 /LC***)
Technical Specifications
Encoding & Decoding
Video
| Bit-rate | 2Mbps~20Mbps (under HEVC/H.265)4Mbps~20Mbps (under MPEG 4 AVC/H.264) |
| Rate Control | CBR/VBR |
| Chroma | Input:4:4:4/4:2:2; output:4:2:0 |
| GOP Structure | IBBP, IPPP |
Audio
| Audio | Encoding |
| Bit-rate | 48Kbps~384Kbps (MPEG-1 Layer 2 /LC***) |
Codec Settings
| Encoding | HEVC/H.265, MPEG 4 AVC/H.264 |
IP Streaming
| Stream output | 2 ASI mirrorout (BNC type)1 MPTS & 4 SPTS out over UDP, RTP/RTSP (100/1000M self-adapt) |
ASI / Transport Stream
ASI Interface
| Input | 2/4 HDMI in. 2/4 HDMI loop out1 ASI in for re-mux |
| Function | PID remapping ( automatically or manually) |
Multiplexing
| Multiplexing | Maximum PIDRemapping |
System & Physical
Power
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
Environment
| Environment | 0~45℃(work)；-20~80℃（Storage） |
Management
| System function | Network management(WEB) |
