FU4353B MPEG2/MPEG4 HD 4-in-1 Encoder
MPEG2 HD & MPEG4 AVC H.264 HD video encoding. Support DD AC3 (2.0/5.1/7.1) passthrough (for HDMI interface only). For MPEG 4 AVC/H.264 only),.
Key Specifications
- YPbPr Input YPbPr Output
- Encoding MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC;DD AC3 (2.0) Optional;DD AC3 (2.0/5.1/7.1) passthrough
- Resolution CVBS: 720*576_50i, 720*480_60i
- Interface 4*Stereo/8*mono/4*SPDIF
- Bit rate 64/96/128/ 192/256/320kbps
- Sample rate 48KHz
- Low Delay Normal, Mode 1, Mode 2
- 1920*1080_60i,1920*1080_50i;1280*720_60p, 1280*720_50P 1920*1080_60i, 1920*1080_50i,1440*1080_60i, 1440*1080_50i1280*720_60p, 1280*720_50P,720*480_60i, 720*576_50i
Overview

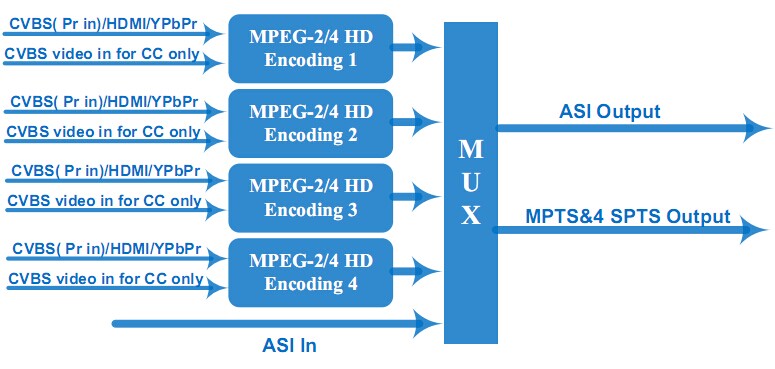

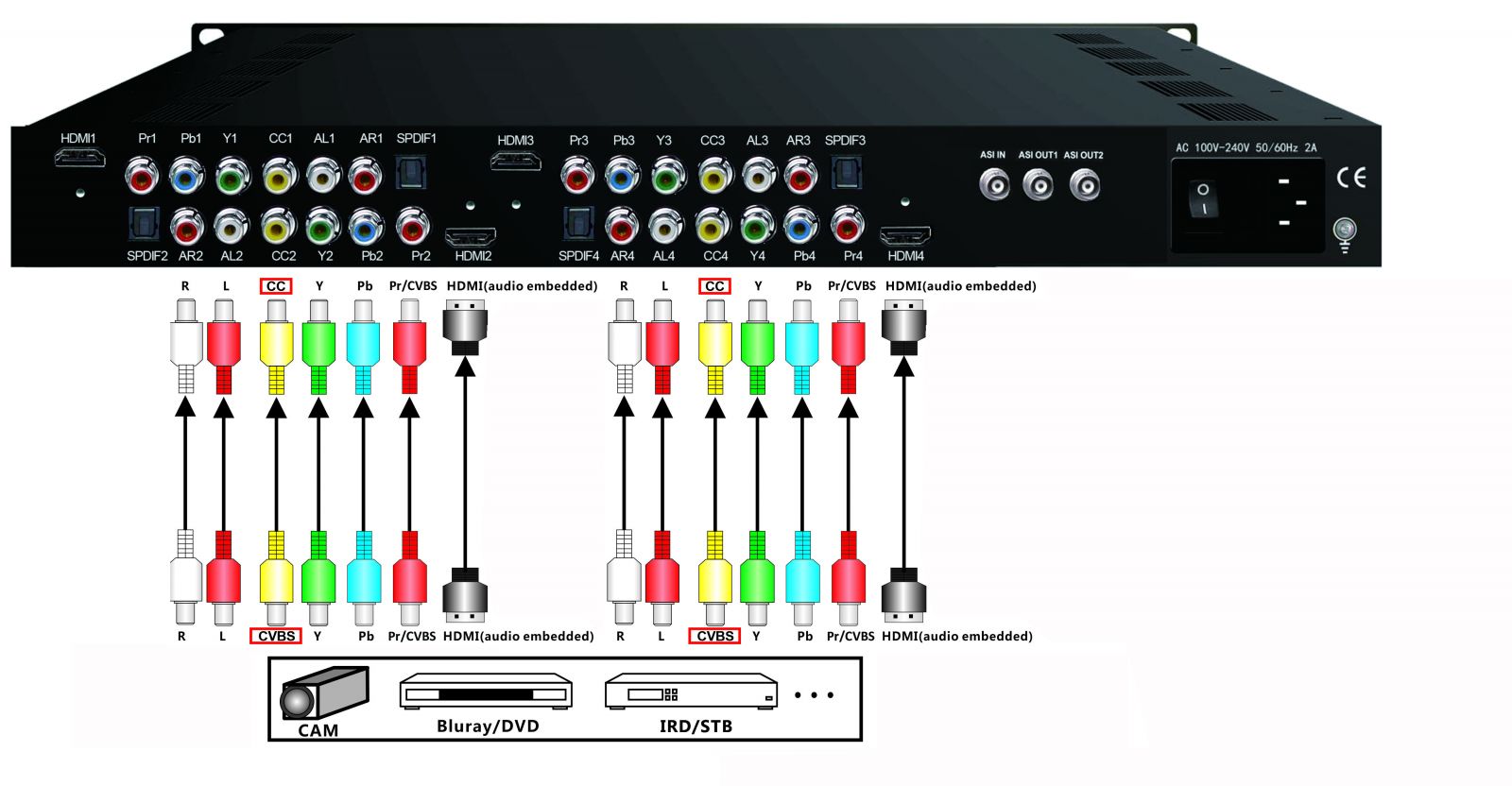

FU4353B MPEG2/H.264 HD Encoder is FMUSER’s new professional HD audio & video encoding device with powerful functionality. It has equipped with 4 YPbPr/HDMI/CVBS(Pr in) channels input supporting MPEG-2 & MPEG-4 AVC/H.264 video encoding. It is also embedded with 4 CVBS port for CC (Closed Caption) only. Key Features: MPEG2 HD & MPEG4 AVC H.264 HD video encoding; Support resolution downscale transform; Support DD AC3 (2.0/5.1/7.1) passthrough (for HDMI interface only); 4* HDMI/YPbPr/CVBS(Pr in) channels in; 1*ASI in for re-mux; Support CC (Closed Caption) EIA608, (from CVBS source only); Support Low Delay; LCN (Logical Channel Number) support; LCD display, Remote control and firmware; Web-based NMS management; Updates via web Specifications: MPEG2; MPEG4 AVC/H.264; MPEG2; MPEG4 AVC/H.264; (For MPEG 4 AVC/H.264 only),; MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC;
Technical Specifications
RF Modulation
| Interface | HDMI*4 |
| Interface | HDMI*4 /SPDIF*4 |
| Interface | CVBS/YPbPr*4 (RCA) |
| Interface | 4*Stereo/8*mono/4*SPDIF |
| Local interface | LCD + control buttons |
| NMS interface | RJ45, 100M |
Encoding & Decoding
Video
| Low Delay | Normal, Mode 1, Mode 2 |
| Resolution | CVBS: 720*576_50i, 720*480_60i |
| Low Delay | Normal, Mode 1, Mode 2 |
Audio
| Sample rate | 48KHz |
| Bit rate | 64/96/128/ 192/256/320kbps |
| Sample rate | 48KHz |
| Bit rate | 64/96/128/ 192/256/320kbps |
Input Interface
| YPbPr Input | YPbPr Output |
Codec Settings
| Encoding | MPEG2; MPEG4 AVC/H.264 |
| Encoding | MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC;DD AC3 (2.0) Optional;DD AC3 (2.0/5.1/7.1) passthrough |
| Encoding | MPEG2; MPEG4 AVC/H.264 |
| 1920*1080_60i,1920*1080_50i;1280*720_60p, 1280*720_50P | 1920*1080_60i, 1920*1080_50i,1440*1080_60i, 1440*1080_50i1280*720_60p, 1280*720_50P,720*480_60i, 720*576_50i |
IP Streaming
| Stream Out | 2 ASI mirrored out (BNC type, 100M);IP (MPTS&4 SPTS) over UDP, RTP/RTSP out (RJ45, 100M) |
System & Physical
| Remote management | Web NMS |
