IP Gateway

FU4619F-M IPTV Gateway

IP input thru CH 1-7(1000M) over SRT, HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS. IP out thru Data port (1000M) over SRT,HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP(Program source should be H.264…

Key Specifications

IP output IP out thru Data port (1000M) over SRT,HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP(Program source should be H.264 and AAC encoding)
Input IP input thru CH 1-7(1000M) over SRT, HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS
Protocol conversion Programs
Power Supply AC100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
System Memory:
General Demission
Hardware Memory
Solid-State Disk(SSD) 120G SSD

Request Quote WhatsApp

Overview

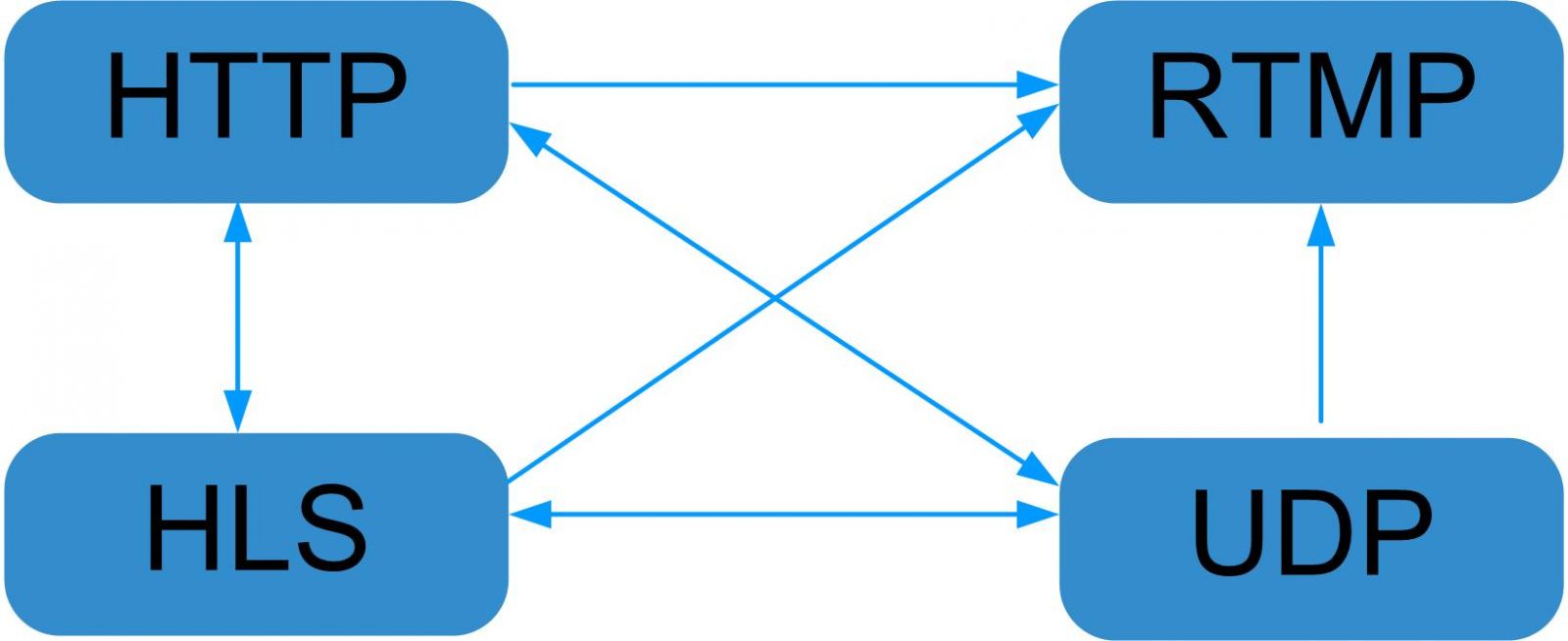

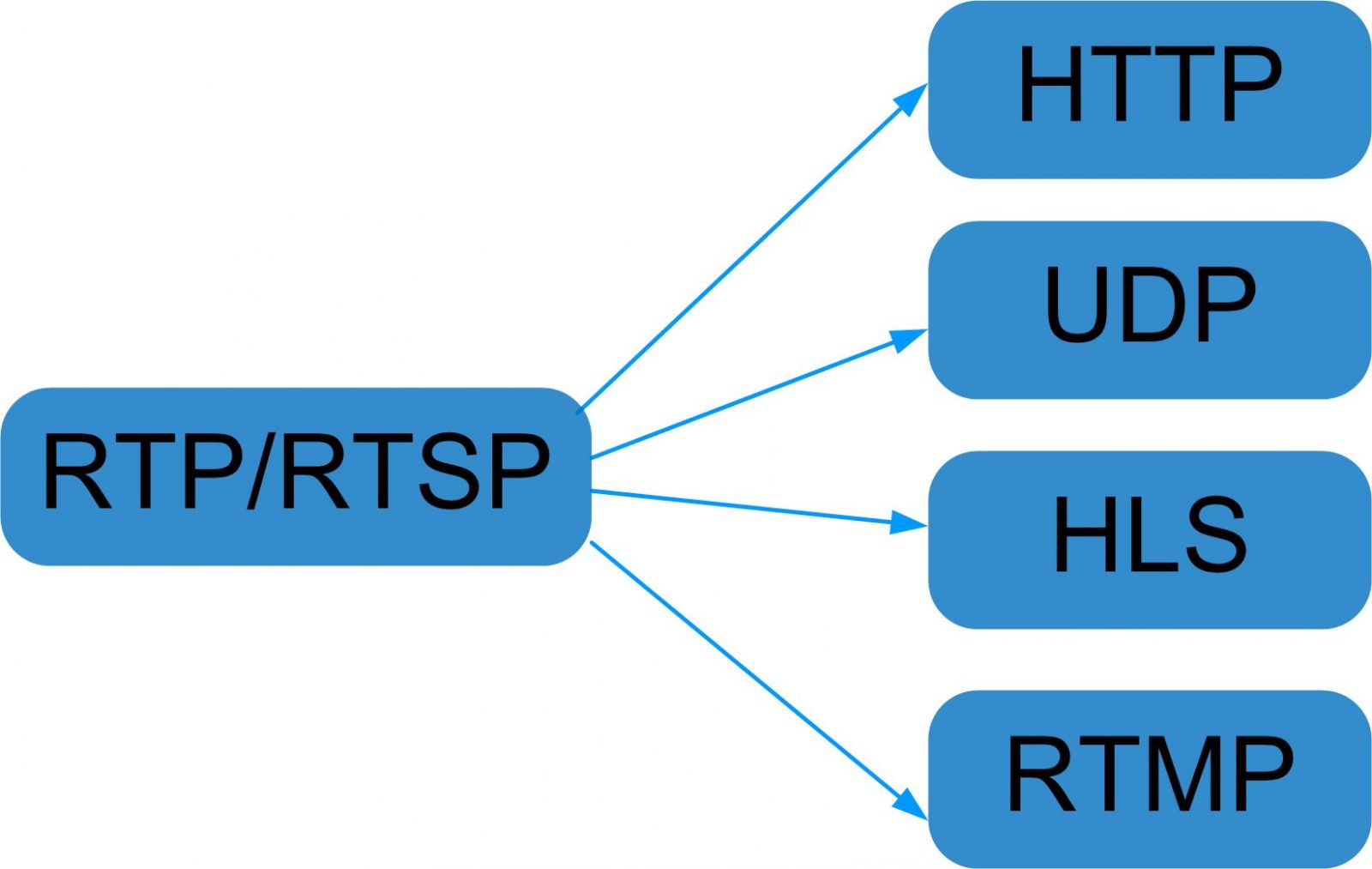

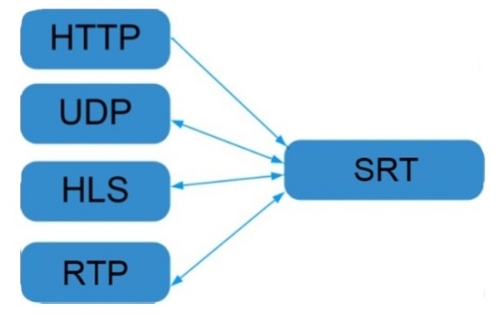

FmuserNDS3508F-M IPTV Gateway is a device which is used for the protocol conversion scenarios and streaming media distribution scenarios. It can convert the broadcast network IP stream over SRT,HTTP,UDP, RTP, RTSP and HLS and TS file into SRT,HTTP,UDP, HLS and RTMP protocol. The system can achieve the integration by receiving a variety of commercial streaming media services. Also, the system can provide streaming media services directly. Support adding scrolling caption, welcome words, boot image and boot video (this function is only applicable to IP out application and the STB/Android TV must be installed Fmuser IPTV APK) Key Features: First Data port: IP out over SRT, HTTP, UDP (SPTS), HLS and RTMP; Data CH1-7 ports: IP in over SRT, HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS; IP out over SRT, HTTP, HLS and RTMP (Unicast);  Support TS files uploading through Web management;  Support IP anti-jitter function;  Support adding scrolling caption, welcome words, boot image and boot video (this function is; only applicable to IP out application and the STB/Android TV must be installed Fmuser IPTV APK);  Support downloading Fmuser IPTV APK directly from this device

Technical Specifications

IP Streaming

IP Input

Input	IP input thru CH 1-7(1000M) over SRT, HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS
Protocol conversion	Programs

IP Output

IP output

IP out thru Data port (1000M) over SRT,HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP(Program source should be H.264 and AAC encoding)

System & Physical

Power

Power Supply

AC100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz

Environment

Temperature

0~45℃(operation), -20~80℃(storage)

Management

System	Memory:
General	Demission
Hardware	Memory
Solid-State Disk(SSD)	120G SSD
Middleware	live+IPTV
User Number	120

Since 2009

Manufacturing Experience

200+

Countries & Regions Served

2-Year

Warranty

Factory

Direct Pricing

Ideal Applications

IPTV headend stream processing

Protocol conversion for IP delivery networks

Multicast-to-unicast and unicast-to-multicast switching
