IP Gateway

FU4619S(FU4619I) IPTV Gateway Server

DATA CH 1-7 (1000M) ports: IP input over SRT, HTTP, UDP (SPTS), RTP (SPTS), RTSP (over UDP, payload: mpeg TS) and HLS. First Data port (1000M): IP out over SRT, HTTP (Unicast), UDP (SPTS, Multicast) HLS and RTMP (Program source…

Key Specifications

IP output First Data port (1000M): IP out over SRT, HTTP (Unicast), UDP (SPTS, Multicast) HLS and RTMP (Program source should be H.264 and AAC encoding)
IP Input DATA CH 1-7 (1000M) ports: IP input over SRT, HTTP, UDP (SPTS), RTP (SPTS), RTSP (over UDP, payload: mpeg TS) and HLS
IPTV system main interface support adding scrolling caption, welcome words, pictures, advertisement, video, music (Please install Fmuser IPTV APK)
System Channel switching time with FMUSER’ STB: HTTP (1-3s), HLS (0.4-0.7s)
IPTV system function support Live channel, VOD, Hotel introduction, Dining, Hotel service, APPS, scenery introduction and so on (Please install Fmuser IPTV APK)
ProtocolConversion Programs
Power Supply AC100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
General Demission

Request Quote WhatsApp

Overview

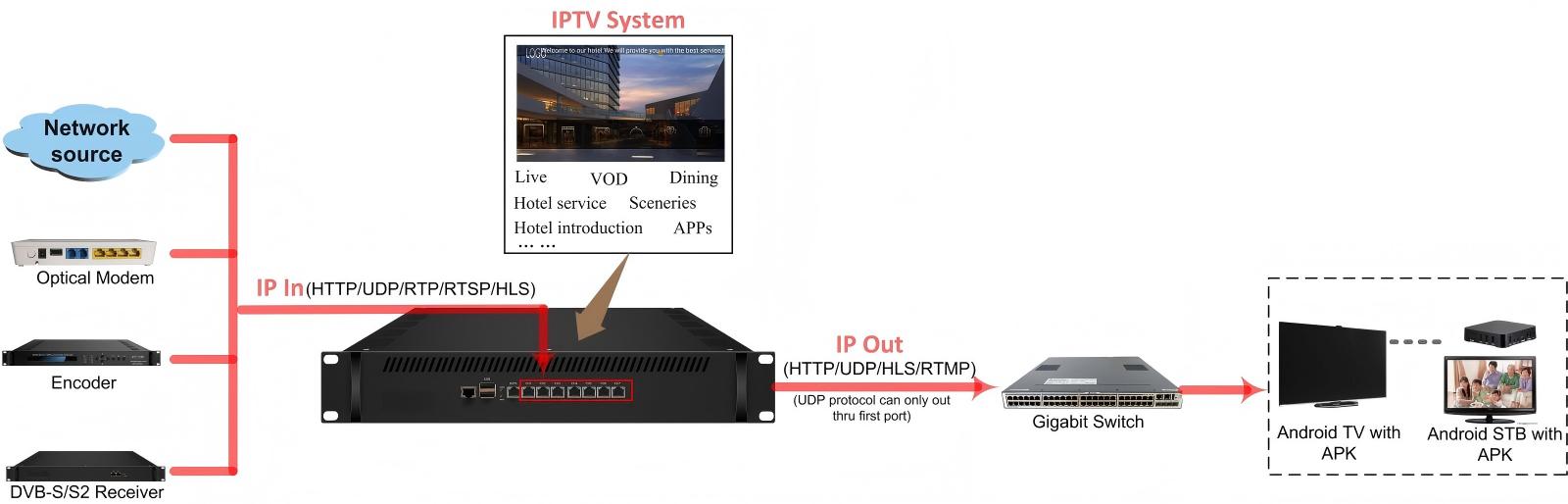

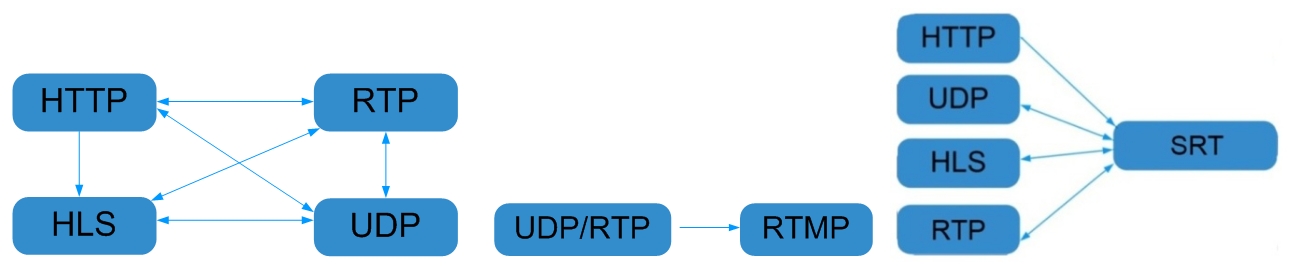

Fmuser FU4619S/FU4619I series IPTV Gateway Server is the newest device which combined with IP Gateway and IPTV server in one unit. It is used for the protocol conversion scenarios and streaming media distribution scenarios. It can convert the broadcast network IP stream over SRT, HTTP, UDP, RTP, RTSP and HLS and TS file into SRT, HTTP, UDP, HLS and RTMP protocol. In addition, it integrates IPTV system and users can upload VOD source on it with huge memory. In conclusion, this full function device makes it ideal for small CATV head end system, especial in hotel TV system… About 80 HD/SD programs (Bitrate at 2Mbps) when HTTP/RTP/RTSP/HLS is converted into UDP (Multicast), the actual application shall prevail, and suggest maximum 80% CPU utilization Key Features: IP Gateway + IPTV server in one device; Manage gateway and IPTV server separately; SRT, HTTP, UDP, RTP, RTSP and HLS in→SRT, HTTP, UDP, HLS and RTMP out; IPTV Functions: Live channel, VOD, Hotel intro, Hotel service, Scenery intro, APPS, and so on; Adding scrolling caption, welcome words, pictures, advertisement, video, music in main interface; TS files uploading through Web management; IP anti-jitter function

Technical Specifications

RF Modulation

IPTV system main interface

support adding scrolling caption, welcome words, pictures, advertisement, video, music (Please install Fmuser IPTV APK)

IP Streaming

IP Input

IP Input	DATA CH 1-7 (1000M) ports: IP input over SRT, HTTP, UDP (SPTS), RTP (SPTS), RTSP (over UDP, payload: mpeg TS) and HLS
ProtocolConversion	Programs

IP Output

IP output

First Data port (1000M): IP out over SRT, HTTP (Unicast), UDP (SPTS, Multicast) HLS and RTMP (Program source should be H.264 and AAC encoding)

Stream Settings

IPTV system function

support Live channel, VOD, Hotel introduction, Dining, Hotel service, APPS, scenery introduction and so on (Please install Fmuser IPTV APK)

System & Physical

Power

Power Supply

AC100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz

Environment

Temperature

0~45℃(operation), -20~80℃(storage)

Management

System	Channel switching time with FMUSER’ STB: HTTP (1-3s), HLS (0.4-0.7s)
General	Demission
FU4619S-M	FU4619I
Model No.	Feature
FU4619F-M	Gateway+IPTV server
FU4619S-M	Gateway+IPTV server
FU4619S-I	Gateway+IPTV server
FU4619I	Gateway+IPTV server

Since 2009

Manufacturing Experience

200+

Countries & Regions Served

2-Year

Warranty

Factory

Direct Pricing

Ideal Applications

IPTV headend stream processing

Protocol conversion for IP delivery networks

Multicast-to-unicast and unicast-to-multicast switching
