FU4633B HD/SD Encoder Modulator（ISDB-T/DVB-T）

HDMI Encoding Section. CVBS Encoding Section. H.264 MP@L 3.0/3.1/4.0.

Key Specifications

Video Encoding
Audio Encoding
Interface Analog Stereo/Mono (Unbalanced RCA)
Resolution 480@59.94/60p
Aspect Ratio 16:9, 4:3
Bit rate 1.000~18.000 Mbps
Sample rate 48KHz
480@59.94/60i 480@30p

Request Quote WhatsApp

Overview

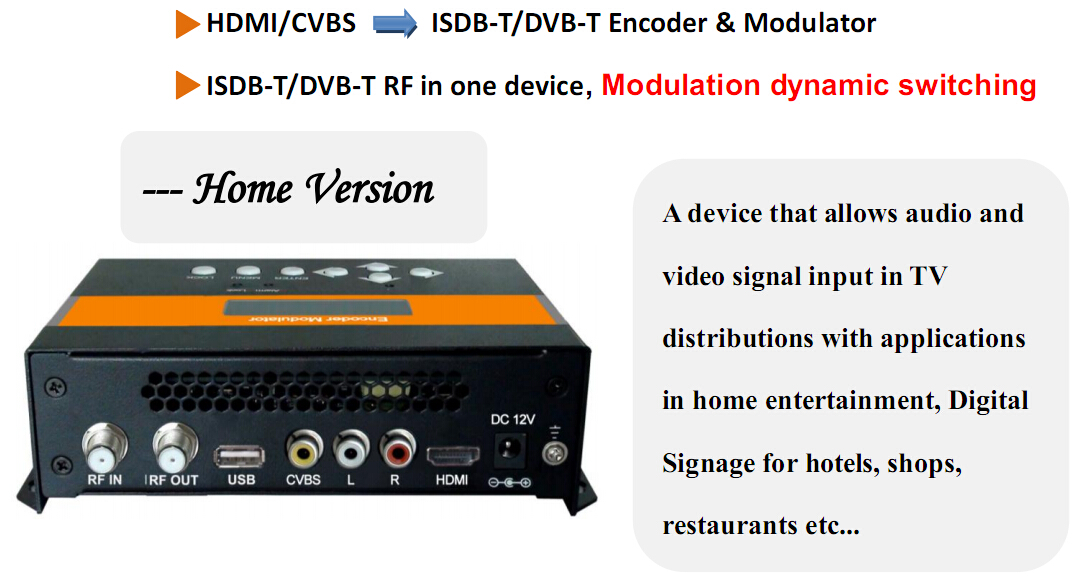

FMUSER FU4633B HD/SD encoder & modulator is designed based on consumer electronics which allow audio/video signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc. It is an all-in-one device integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into ISDBT/DVB-T RF out. Specifications: HDMI Encoding Section; CVBS Encoding Section; RF output level; RF output level; H.264 MP@L 3.0/3.1/4.0; MPEGI layer 2; H.264 MP@L 3.0; MPEGI layer 2

Technical Specifications

RF Modulation

RF Output

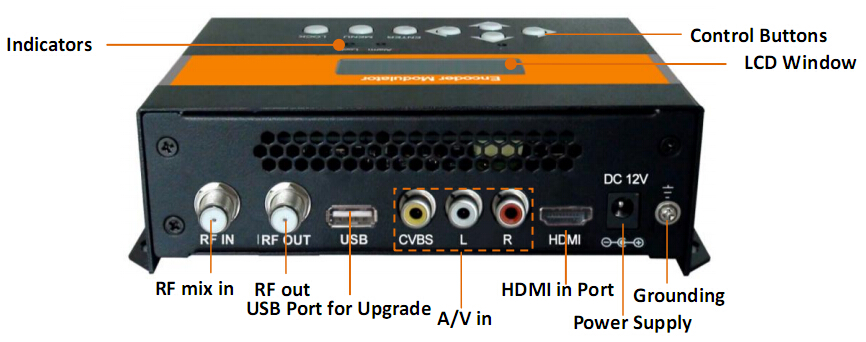

Interface	HDMI*1
Interface	CVBS*1 (RCA)

Analog

Interface

Analog Stereo/Mono (Unbalanced RCA)

Encoding & Decoding

Video

Resolution	480@59.94/60p
576@50i	576@25p
1080@50i	1080@25p
Aspect Ratio	16:9, 4:3
Bit rate	1.000~18.000 Mbps
480@60i	480@30p
Aspect Ratio	4:3
Bit rate	1.000~18.000 Mbps

Audio

Audio	Encoding
Sample rate	48KHz
Audio	Encoding
Sample rate	48KHz

Codec Settings

Video	Encoding
480@59.94/60i	480@30p
1080@59.94/60i	1080@30p
1080@59.94/60p	1080@30p
Video	Encoding

Since 2009

Manufacturing Experience

200+

Countries & Regions Served

2-Year

Warranty

Factory

Direct Pricing

Ideal Applications

In-house digital TV distribution for hotels and campuses

Local channel insertion for hospitality venues

Turnkey headend channel expansion
