FU4653 series encoder modulator

Overview

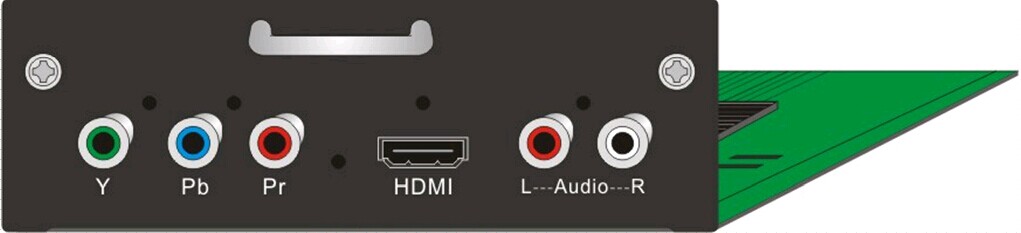

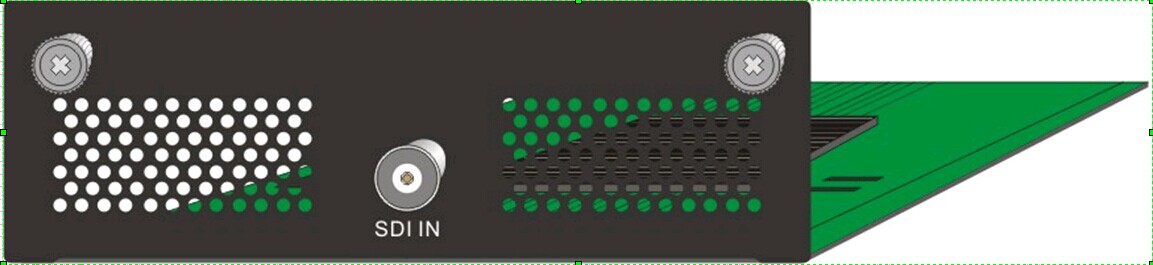

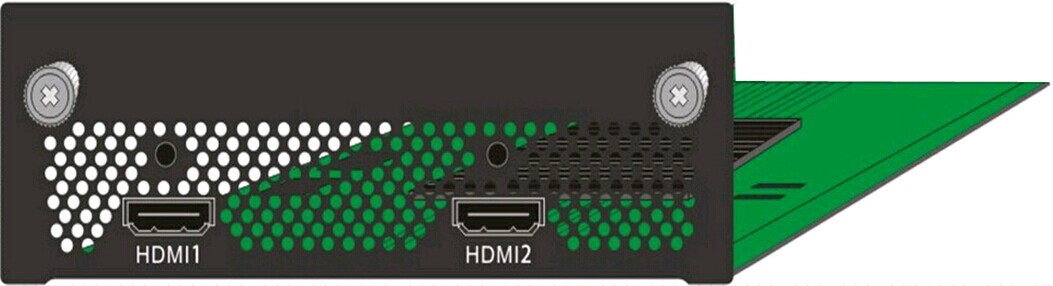

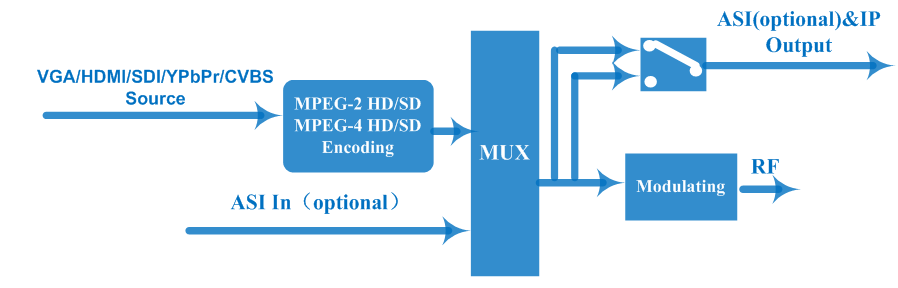

FU4653 series products are FMUSER’s all-in-one devices which integrate encoding, multiplexing and modulation to convert V/A signals into digital RF output. It adopts inner drawer-type structural design which greatly facilitates the change of encoding modules (HDMI/CVBS/SDI/YPbPr/…) as needed. To meet customers’ various requirements, FU4653 is also optionally equipped with 1 ASI input for re-mux and 2 ASI out ports. MPTS and SPTS output are available via the gigabit DATA port. HDMI/CVBS/SDI/YPbPr… inputs (Now only HDMI and SDI board are available) Specifications: MPEG2 HD/SD & MPEG4 AVC H.264 HD/SD video encoding; With its various inputs available, our FU4653 series products are widely used in public places such as metro, market hall, theatre, hotels, resorts, and etc for advertising, monitoring, training and educating in company, schools, campuses, hospital…; Support low delay encoding mode(SDI and HDMI board); Modular design, pluggable encoding modules; MPEG2; MPEG4 AVC/H.264; HDMI/YPbPr/CVBS 3-in-1 Input; MPEG2; MPEG4 AVC/H.264; -for MPEG4 AVC/H.264 only)
