FU4653B MPEG2/MPEG4 4-in-1 Encoder Modulator

Overview

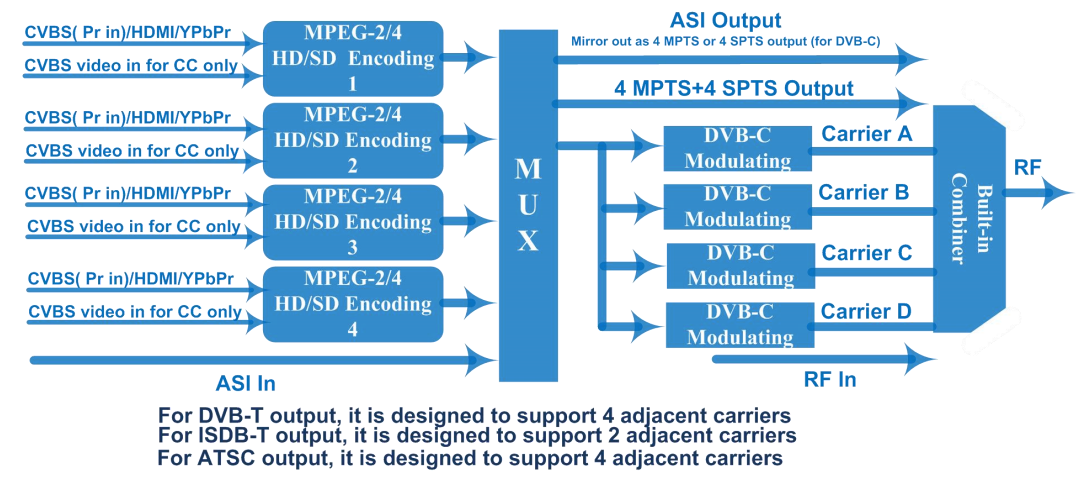

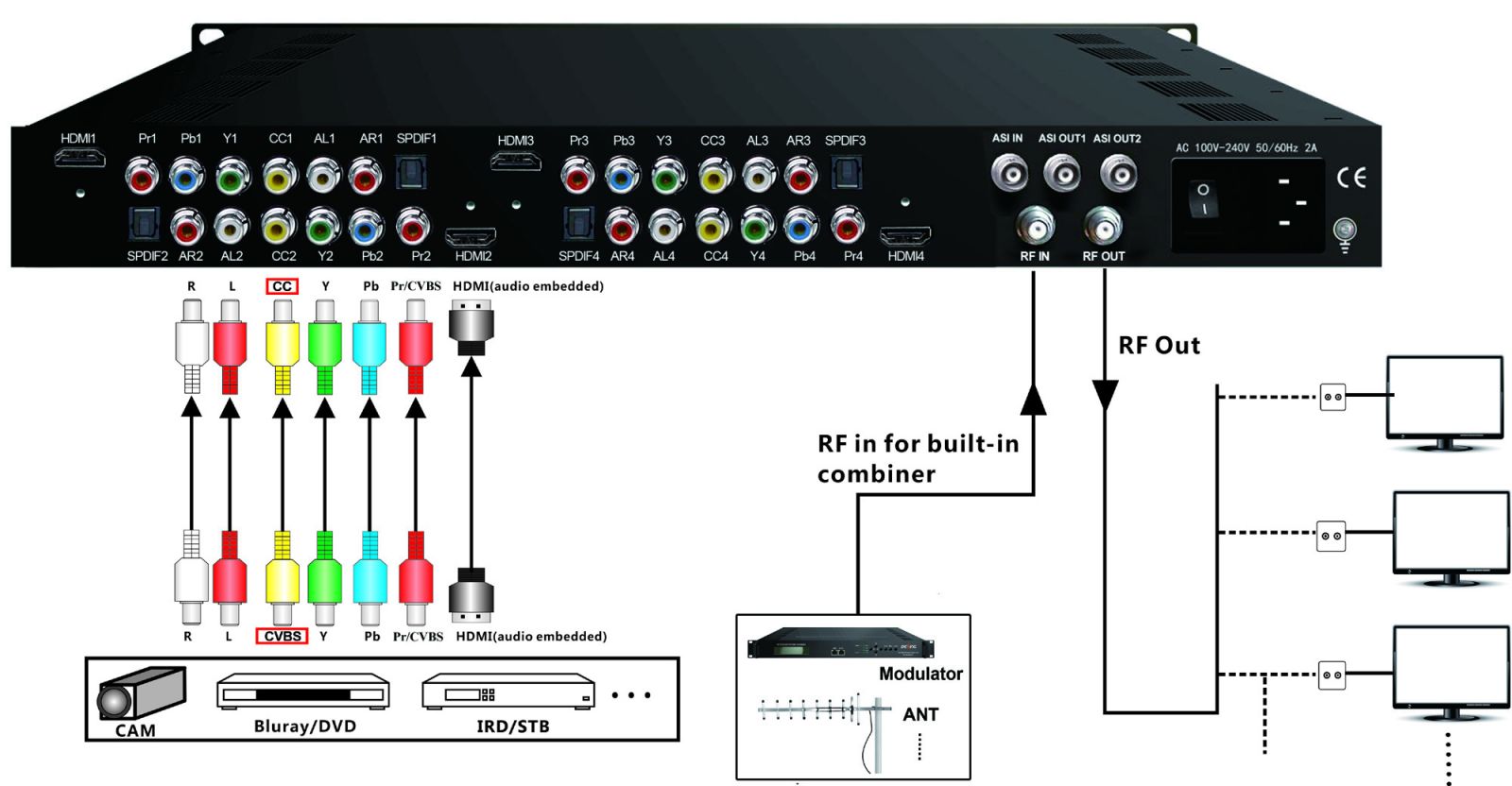

To meet customers’ various requirements, FU4653B is also equipped with 1 ASI input(optional), and output with 2 ASI ports (optional) and 1 DATA port. The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. Its output signals are to be received by TVs, STB and etc with corresponding standard. Key Features: MPEG2 HD/SD & MPEG4 AVC H.264 HD/SD video encoding; Resolution Downscale (the same frame rate); 4x HDMI/YPbPr/CVBS (Pr in) channels in; 1x ASI in for re-mux and 2xASI out(optional); 1xRF in for RF mix; 4xDVB-C carriers out (4x DVB-T, 2x ISDB-T, 4x ATSC carriers out optional); IP out; Support CC (Closed Caption) Line 21 (from CVBS source only); Support Low Delay; LCN (Logical Channel Number) support; VCT (Virtual Channel Table) support— for DVB-C and ATSC; Excellent modulation quality; LCD display, Remote control and firmware; Web-based NMS management; Updates via web Specifications: MPEG2; MPEG4 AVC/H.264; 1920*1080_60P, 1920*1080_50P (-for MPEG4 AVC/H.264 only); MPEG2; MPEG4 AVC/H.264; Available Out Resolution; RF output level; RF output level; RF output level; RF output level
