FU4653H/FU4653HA Encoder Modulator

8/12/16/20/24 A/V inputs with MPEG2 Encoding. 4*RF DVB-C out (4 carriers combined output). 4*RF DVB-T out (4 carriers combined output).

Key Specifications

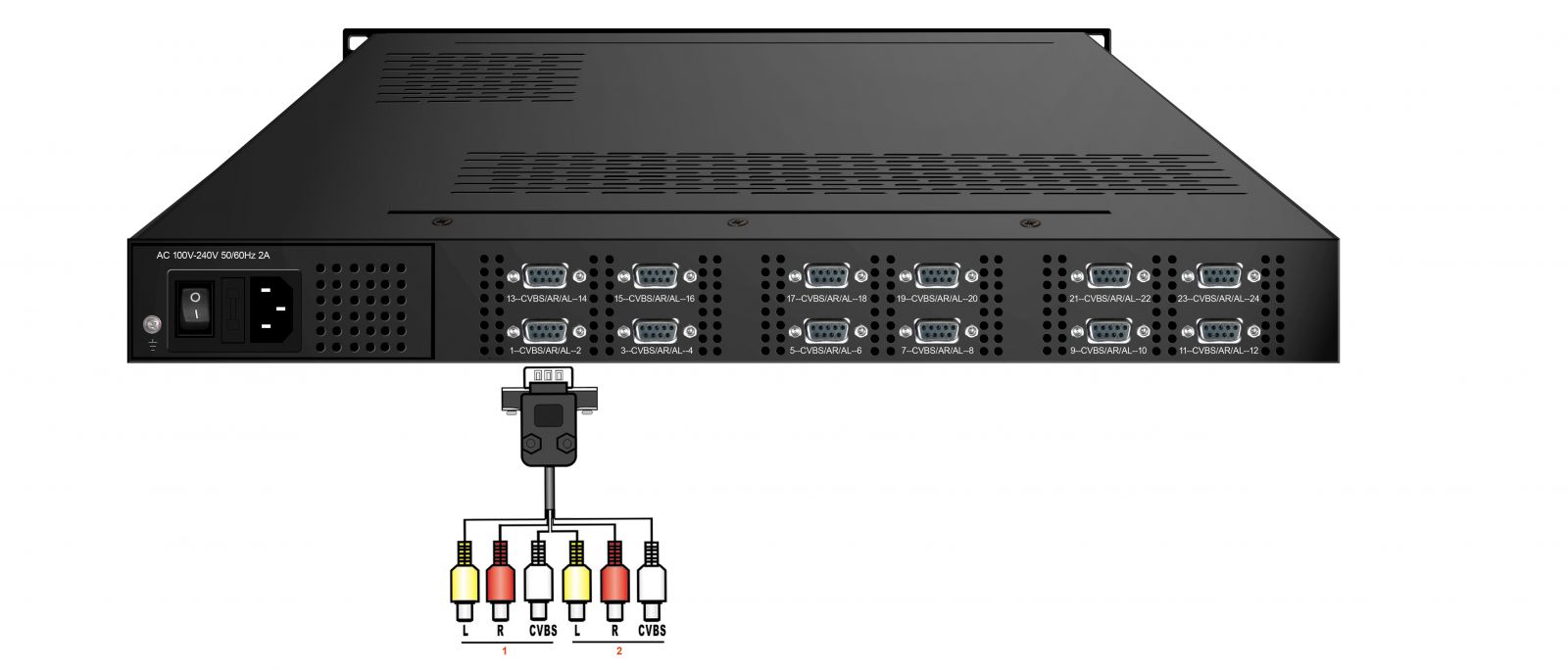

Input 8/12/16/20/24 CVBS inputs , RCA interface ,1 DVB-C/T/(T)/ISDBT Tuner for remux, F type interface (only for DVB-C RF out)128 IP input over UDP and RTP, DATA1 and DATA2,RJ45
Bit-rate 64Kbps,128Kbps,192kbps,256kbps,320kbps,384kbps each channel
Constellation 16/32/64/128/256 QAM
Encoding MPEG-2
Audio Encoding
Multiplexing Maximum PIDRemapping
Frequency In 60 MHz~890 MHz
DVB-T/(T) Frequency In

Request Quote WhatsApp

Overview

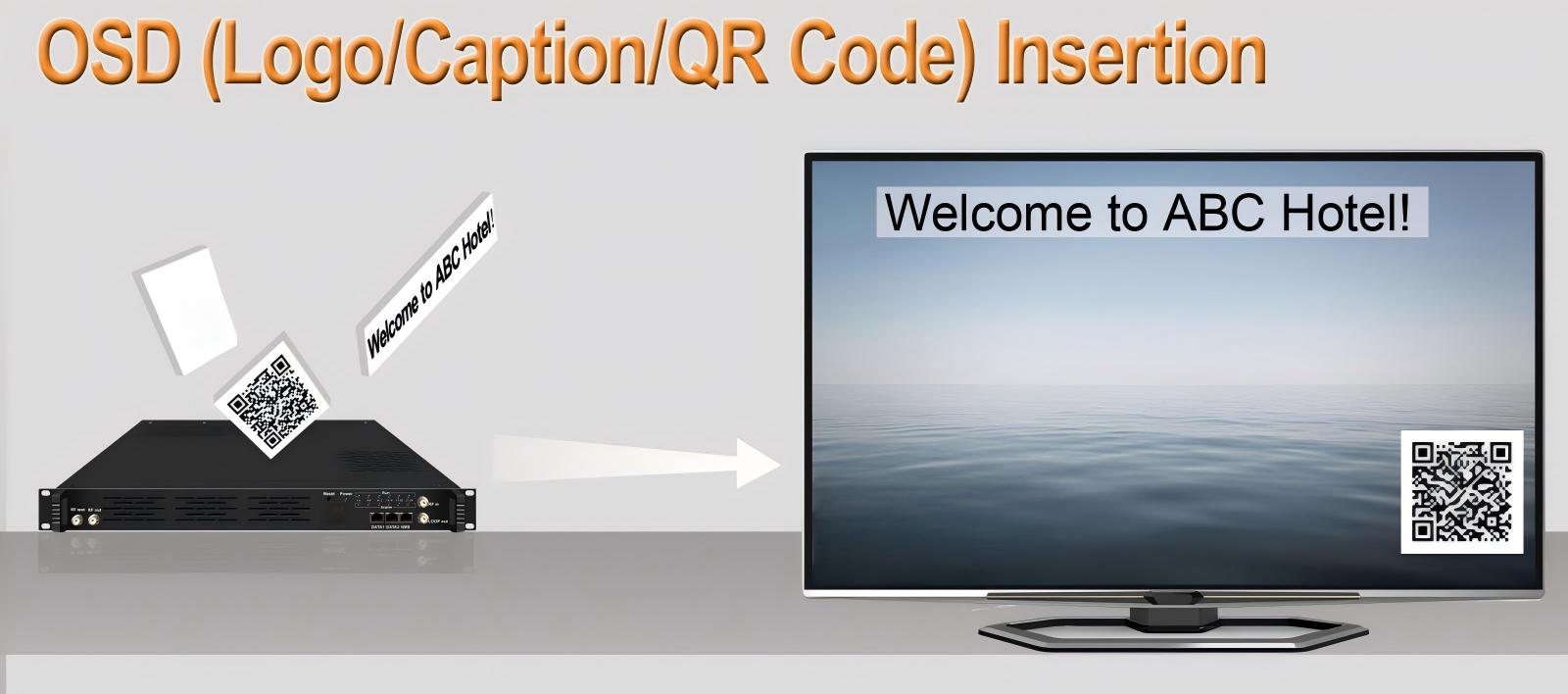

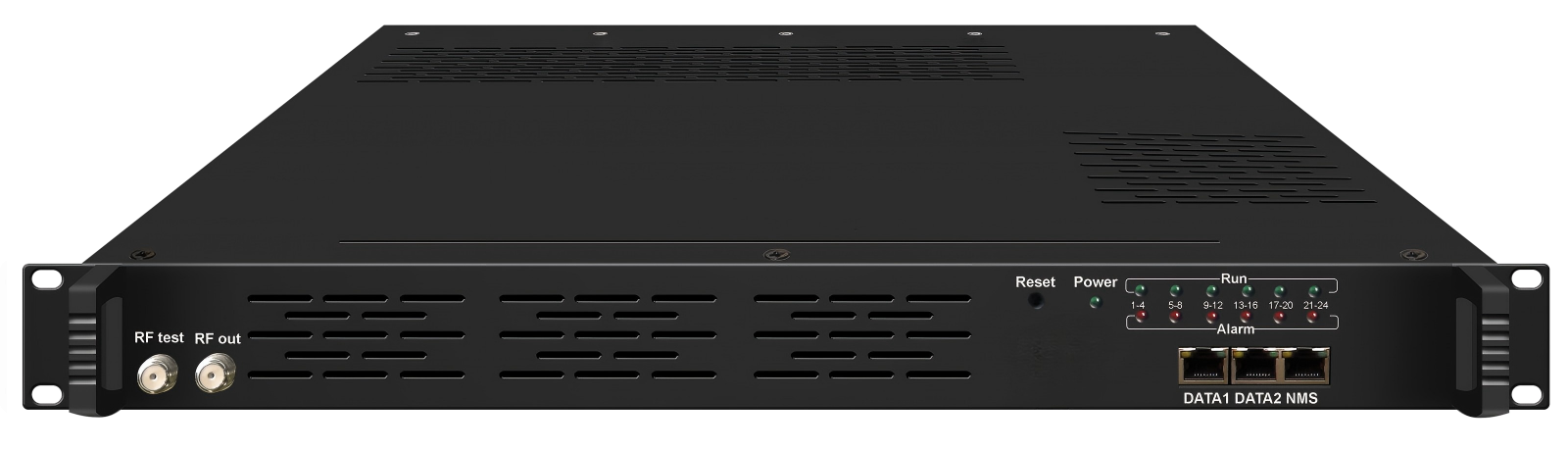

FU4653H/HA encoder modulator is a professional high integration device which includes encoding, multiplexing, scrambling and modulation. It supports 8 to 24 CVBS inputs, one DVB-C/ T/(T)/ISDBT tuner input and 128 IP input through Data1 (GE) and Data2 (FE) port. It also supports DVB-C/T RF out with 4 adjacent carries, and supports 4 MPTS out thru Data1 (GE). This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment… Key Features:  8/12/16/20/24 A/V inputs with MPEG2 Encoding;  MPEG1 Layer II, AC3(2.0) Audio encoding and support audio gain adjustment;  1 DVB-C/T/(T)/ISDBT tuner input for re-mux (For DVB-C RF out version. Suitable for India;  128 IP input over UDP and RTP protocol;  4 groups of multiplexing/scrambling/modulation output channels;  Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting;  Support 4 MPTS IP (DATA1 port only) output over UDP and RTP;  Support 4 DVB-C or 4 DVB-T RF out;  Support CC (closed caption);  Support LOGO, Caption, QR code insertion---FU4653HA(Language Supported: 中文,

Technical Specifications

RF Modulation

Modulation Parameters

Constellation	16/32/64/128/256 QAM
Bandwidth	6/7/8 M bandwidth

RF Output

Frequency In	60 MHz~890 MHz
Scrambling(Only for DVB-C RF out)	Maximum simulcrypt CA
Standard	ETR289, ETSI 101 197, ETSI 103 197

Tuner / Demodulator

Input

8/12/16/20/24 CVBS inputs , RCA interface ,1 DVB-C/T/(T)/ISDBT Tuner for remux, F type interface (only for DVB-C RF out)128 IP input over UDP and RTP, DATA1 and DATA2,RJ45

DVB-T / T2

DVB-T/(T)

Frequency In

ISDB-T

Frequency In

Encoding & Decoding

Video

Bit-rate	0.5Mbps~8Mbps each channel
Rate Control	CBR, VBR
GOP Structure	GOP_0_B, GOP_1_B, GOP_2_B, GOP_3_B
Resolution	24-bit

Audio

Audio	Encoding
Sampling rate	48KHz
Bit-rate	64Kbps,128Kbps,192kbps,256kbps,320kbps,384kbps each channel

Processing Features

Advanced Pretreatment

De-interlacing, noise reduction

Codec Settings

Encoding

MPEG-2

ASI / Transport Stream

ASI Interface

Function

PID remapping ( automatically or manually)

Multiplexing

Maximum PIDRemapping

System & Physical

Connection

Local/remote connection

Since 2009

Manufacturing Experience

200+

Countries & Regions Served

2-Year

Warranty

Factory

Direct Pricing

Ideal Applications

In-house digital TV distribution for hotels and campuses

Local channel insertion for hospitality venues

Turnkey headend channel expansion
