FU4653KB Multi-channel Encoder

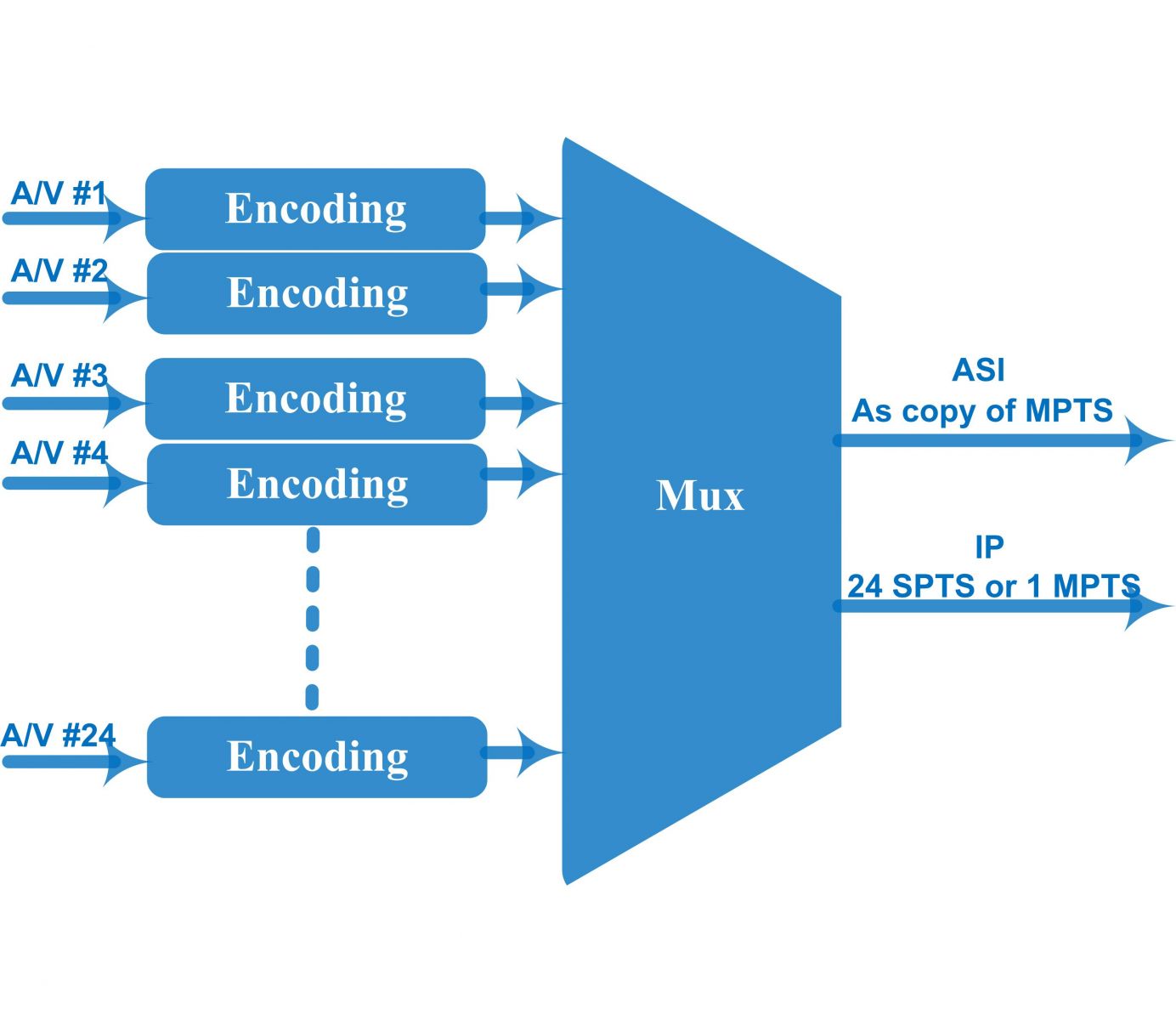

Support MPEG-2, MPEG4/H.264 Video encoding. 8/12×CVBS video inputs with 8/12 SPTS and 1 MPTS output through Data 1 or Data 2. 16/24×CVBS video inputs with 16/24 SPTS or 1 MPTS output (alternative) through Data 1 or Data 2.
Key Specifications

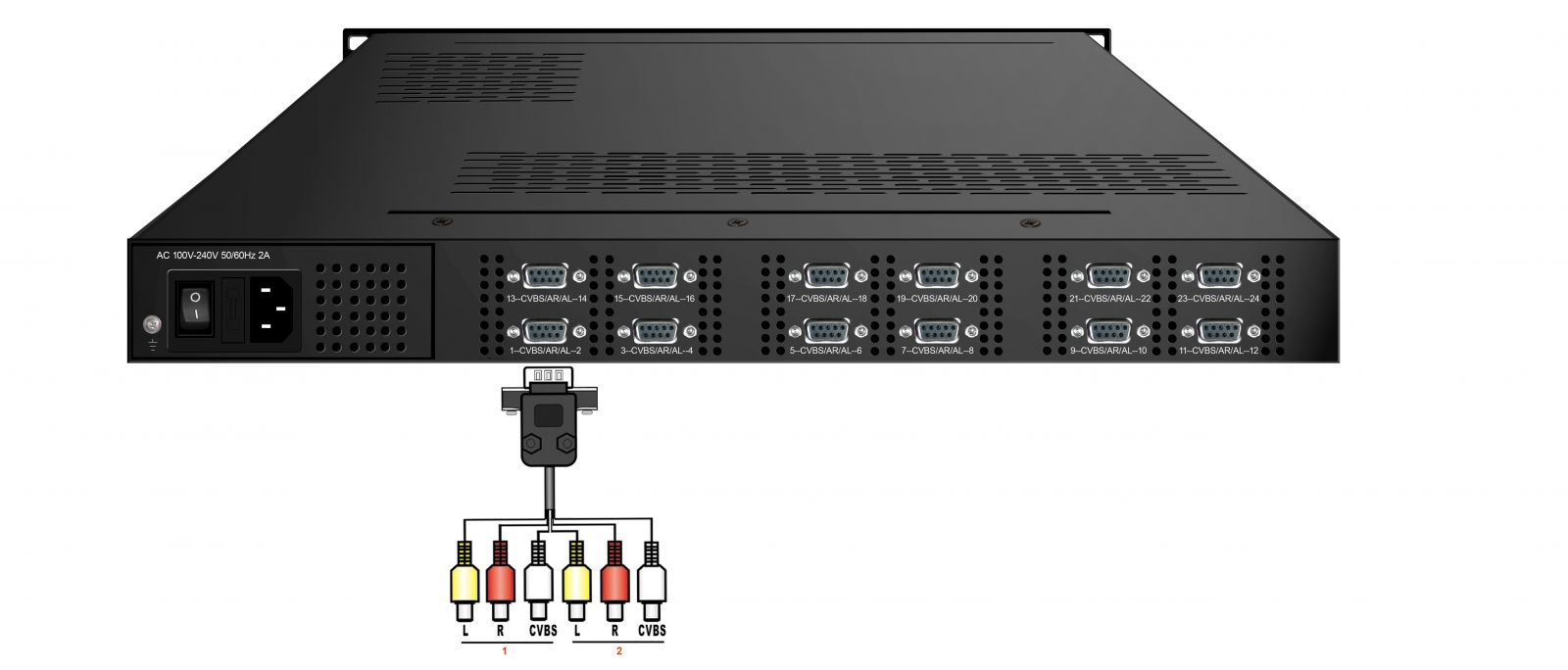

- Input 8/12/16/24 CVBS inputs , RCA interface
- Encoding MPEG-2, MPEG4 AVC/H.264
- Bit-rate 48Kbps~384Kbps (each channel)
- Video Resolution 720*576/352*288/320*240/320*180/176*144/160*120/160*90@50Hz | 720*480/352*288/320*240/320*180/176*144/160*120/160*90@60Hz
- GOP Structure IPPP, IBPBP, IBBPB, IBBBP
- Rate Control CBR/VBR
- Bits per sample 32-bit
- Multiplexing Function
Overview
FU4653KB multi-channel Encoder is a professional audio & video encoder with MPEG2, MPEG4 AVC/H.264 encoding and multiplexing device. It supports to convert 8/12/16/24 CVBS video inputs to IP output. To meet customers’ various requirements, it is also equipped with 1 ASI output for option as required. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting etc. Key Features: 8/12×CVBS video inputs with 8/12 SPTS and 1 MPTS output through Data 1 or Data 2 Specifications: 16/24×CVBS video inputs with 16/24 SPTS or 1 MPTS output (alternative) through Data 1 or Data 2; Support MPEG-2, MPEG4/H.264 Video encoding; Support IP output over UDP , RTP/RTSP protocol; 8/12/16/24 CVBS inputs , RCA interface; 8/12 CVBS inputs with 8/12 SPTS and 1 MPTS output; 16/24 CVBS inputs with 16/24 SPTS or 1 MPTS output (alternative); Supports PAL and NTSC SD video formats; 1 ASI output (optional) as copy of MPTS
Technical Specifications
Encoding & Decoding
Video
| Video Resolution | 720*576/352*288/320*240/320*180/176*144/160*120/160*90@50Hz | 720*480/352*288/320*240/320*180/176*144/160*120/160*90@60Hz |
| Bit-rate | 0.5~5Mbps |
| Rate Control | CBR/VBR |
| GOP Structure | IPPP, IBPBP, IBBPB, IBBBP |
Audio
| Bits per sample | 32-bit |
| Bit-rate | 48Kbps~384Kbps (each channel) |
Input Interface
| Input | 8/12/16/24 CVBS inputs , RCA interface |
Processing Features
| Advanced Pretreatment | De-interlacing, noise reduction |
Codec Settings
| Encoding | MPEG-2, MPEG4 AVC/H.264 |
ASI / Transport Stream
| Multiplexing | Function |
System & Physical
Power
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
| Power consumption | 20W |
Physical
| Approx weight | 8kg |
Environment
| Environment | 0~45℃(work)；-20~80℃（Storage） |
Management
| System function | Network management (WEB) |
