FU4655MD Encoder Modulator

Overview

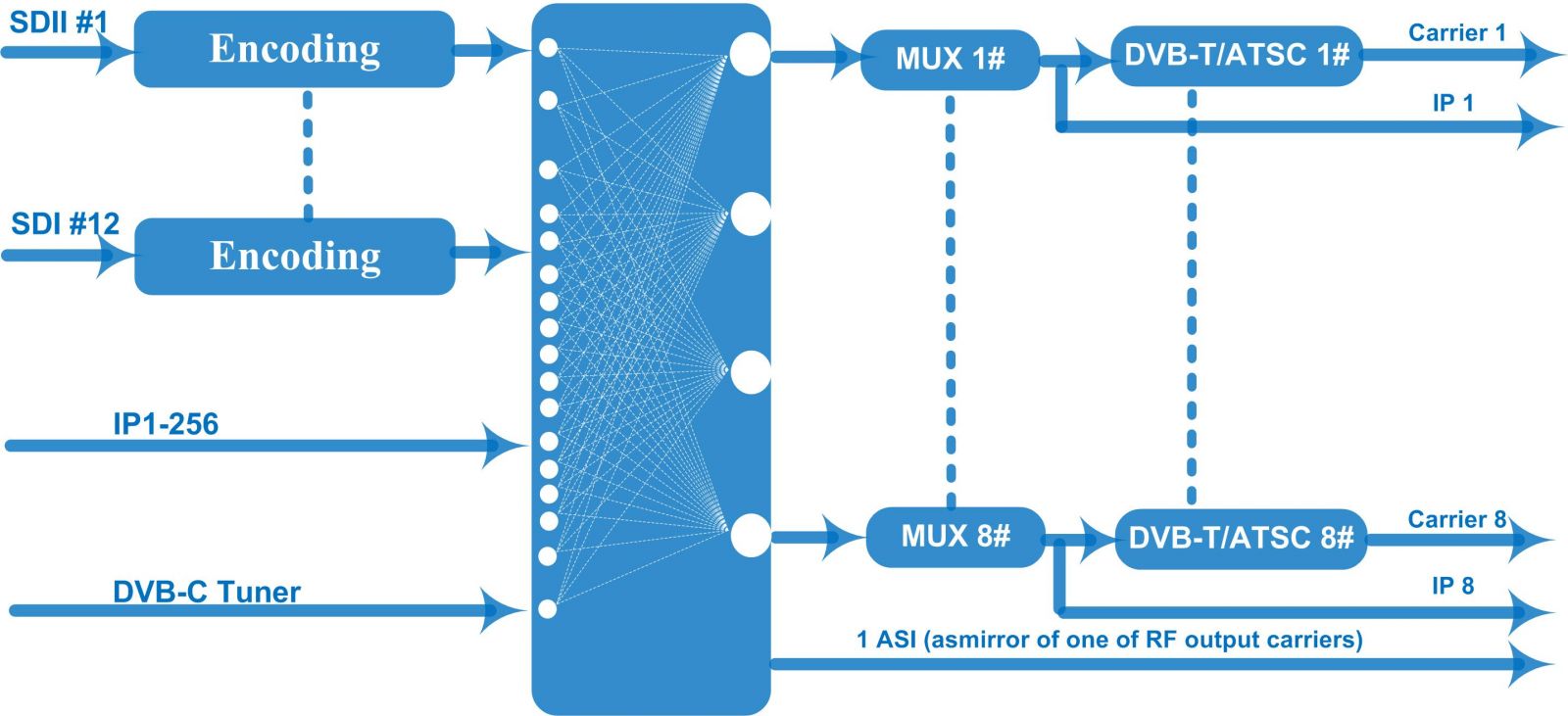

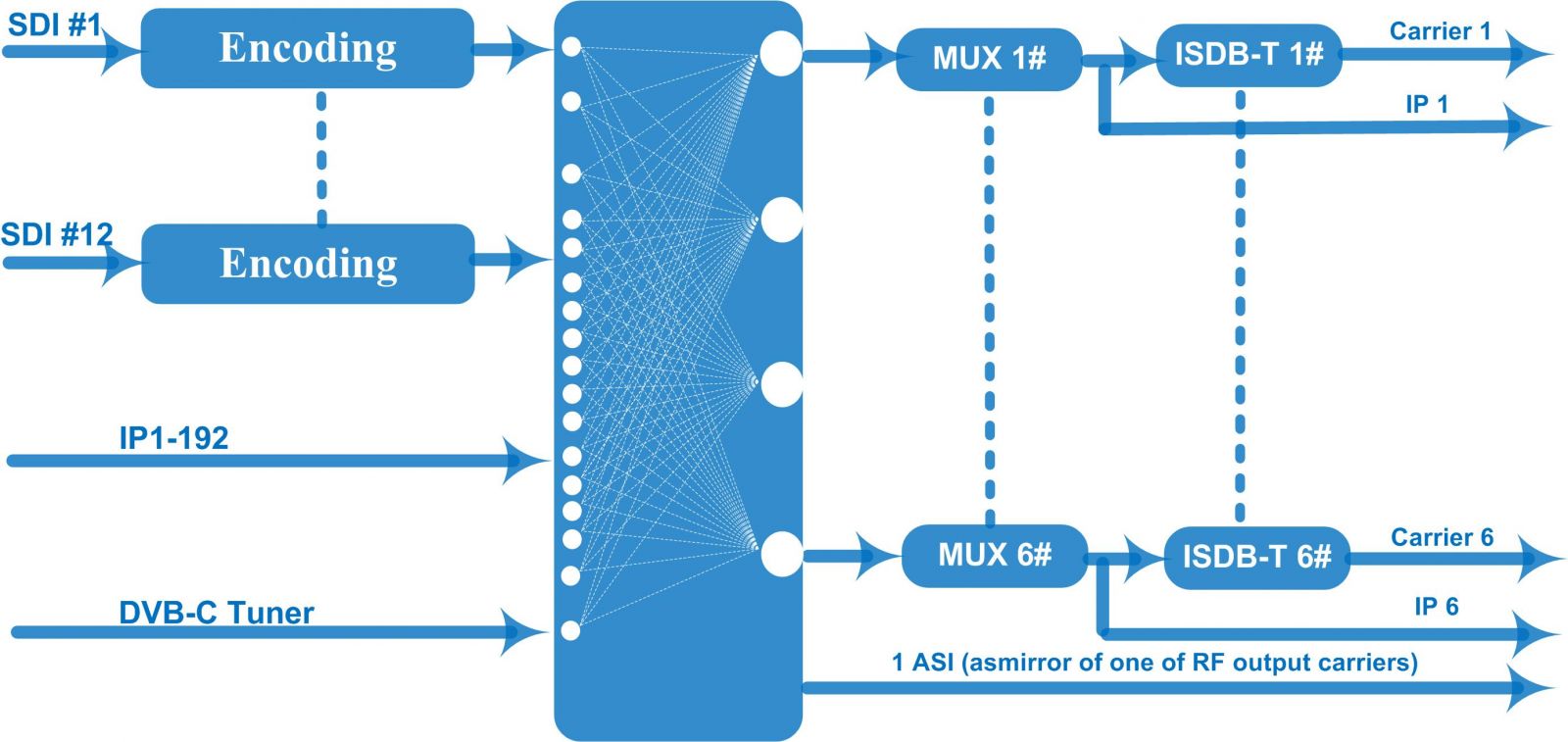

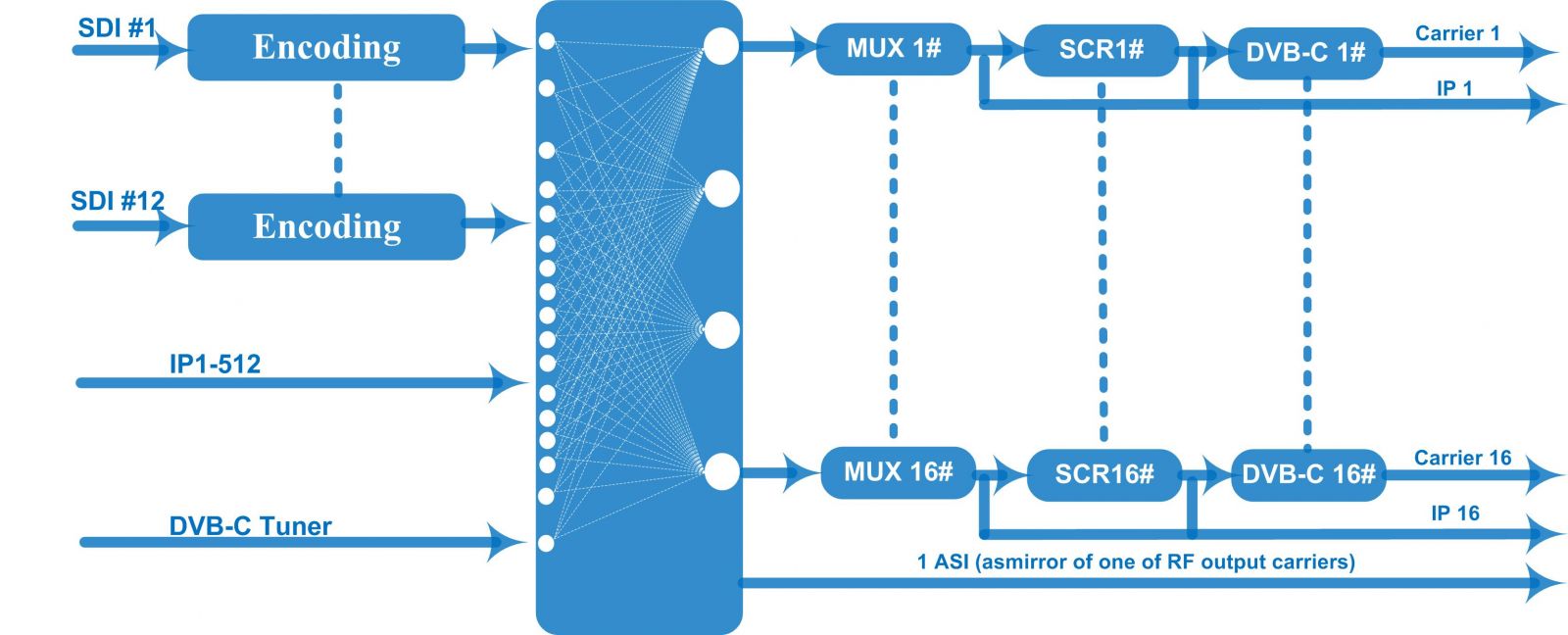

FU4655MD HD encoder modulator is a professional high integration device which includes encoding, multiplexing, scrambling and modulating. It supports 12 HD-SDI with CC inputs, one DVB-C tuner input and maximum 512 IP input through Data1 (GE) port. It also supports DVB-C RF out with 16 non-adjacent carries or DVB-T RF out with 8 non-adjacent carriers and supports 16 MPTS as mirror of 16 carriers or 8 MPTS as mirror of 8 carriers through Data2 (GE) output port. To meet customers’ various requirements, it is also equipped with 1 ASI output (Optional) as mirror of one of MPTS. Key Features: 12 HD-SDI inputs with MPEG2 & MPEG4 AVC/H.264 Encoding; 1 DVB-C (ATSC optional) tuner input for re-mux; Each carrier out channel process maximum 32 IP from DATA1 input port (UDP&RTP protocol); Support 16 groups multiplexing/Scrambling/DVB-C modulating; Support 8 groups multiplexing/DVB-T/ATSC modulating---Optional; Support 6 groups multiplexing/ISDB-T modulating---Optional; Support 1 ASI out as mirror of one of RF output carriers---; Support 16 MPTS IP (DATA2 port only) output over UDP, RTP/RTSP; Support 8 MPTS IP (DATA2 port only) output over UDP, RTP/RTSP-- DVB-T/ATSC RF out
